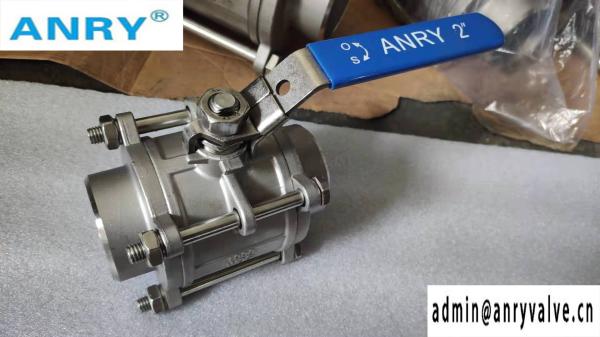

3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
3PCS BSP NPT Nipple Threaded CF8M Body Reinforced Ptfe Valve
Specifications
Brand Name :
ANRY
Model Number :
Q11F
Certification :
API,CE,ISO
Place of Origin :
WENZHOU
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Delivery Time :
7 DAYS
Packaging Details :
Plywood case
Name :
Thread Ball Valve
Thread type :
G.NPT.BSPT.BSP.DIN259/2999
medium :
Water,Oil,air and some Corrosive liqid
Pressure :
50PSl
Structure :
Ball,full port,Shutoff
Material :
Stainless Steel,Plastic,WCB
Power :
Manual,Pneumatic,Electric,motorized
Temperature of media :
Normal Temperature,Medium Temperature,Low Temperature
Media :
Water,oil,Gas,Air,Liquid
Port size :
1/2"-4"
Application :
General,Household Usage,SGS,Industrial Usage
Product name :
hydraulic ball valve,Wholesale Professional Plastic PVC/UPVC Ball Valve,New mould ppr fittings double union plastic ball valve,UPVC Manual Ball Valve,UPVC True Union Ball Valve
Body material :
Brass,Stainless Steel 316,pvc/upvc,304
Size :
1/8"~4",DN15 to DN50
Standard :
DIN,ASTM,ANSI,DIN/ JIS / ANSI /BS/CNS
Working pressure :
3000PSI,0-10 Bar,0-16bar
Connection :
Thread BSP NPT,Female Thread/OD size,threaded,Female
Usage :
Control water flow
Seal material :
PTFE,Silicon,VITON
Description
Three Piece Thread Ball Valve
Applicable Standards
Working Pressure: 150PSl
Temperature Range: -20~232~-350℃
Suitable medium: Water,Oil,air and some Corrosive liqid
Thread type:G.NPT.BSPT.BSP.DIN259/2999

Technical parameters :

Main Parts and Materials

NO.
Part Name
Material
Stainless steel
Carbon steel
1
Body
304/316
WCB
2
Joint ring
PTFE
PTFE
3
Cap
304/316
WCB
4
Ball
304/316
304/316
5
Stem
304/316
304/316
6
Nut
304
FCD45
7
Washer
304
FCD45
8
Handle cover
Plastic
Plastic
9
Handle
304
304
10
Stem nut
304
B7
11
Stem washer
304
304
12
Gland nut
304
FCD45
13
Stem packing
PTFE
PTFE
14
Thrust washer
PTFE
PTFE
15
Joint gasket
PTFE
PTFE
16
Bolt
304
B8

Main Dimensions

SIZE
1/4"
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
4"
D
11.6
12.7
15
20
25
32
38
50
65
80
100
L
68
68
72
85
90
112
120
145
185
210
268
H
100
100
130
130
165
165
190
190
250
250
280
E
100
100
130
130
165
165
190
190
250
250
280
WT(g)
400
405
640
890
1160
2195
2940
4860
7000
10700
19350
