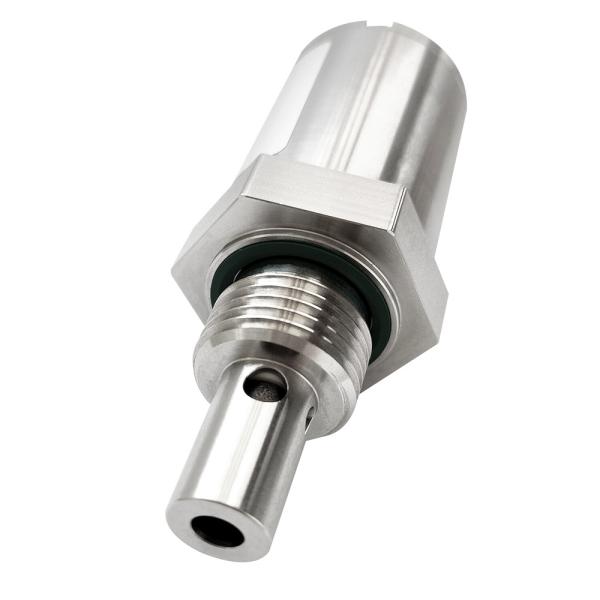

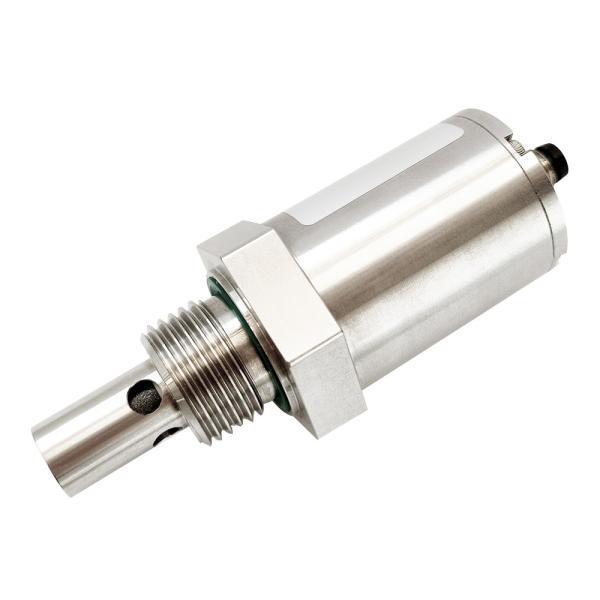

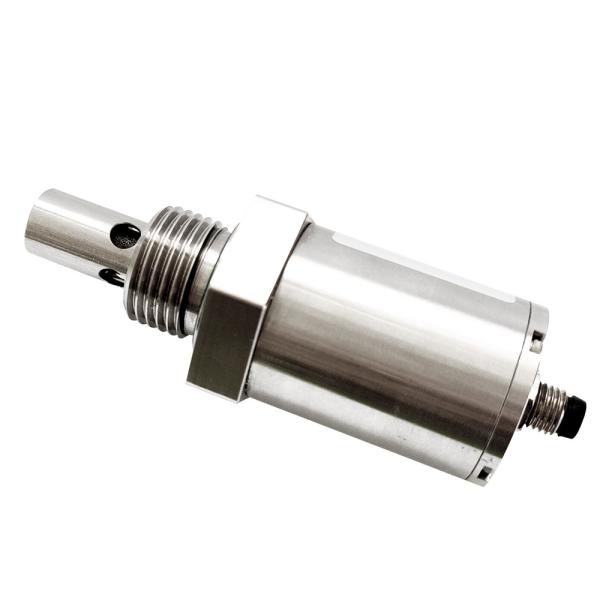

UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
Specifications
Brand Name :
CSPPM
Model Number :
PPM-HLW-2B
Certification :
CE
Place of Origin :
China
MOQ :
1
Packaging Details :
Standard package
Moisture content range :
0~5%, 0~10%, 0~20%
Accuracy :
0.3%(typical), 0.5%
Resolution :
0.1%
Temperature range :
-40~120℃
Output signal :
Digital signal: RS485 Analog signal:4~20mA alternative
Power supply :
9~28V DC, load current＜5mA
Pressure range :
＜100bar
Operation temperature :
-40~85℃
Oil temperature :
-40~120℃
Process connection :
G1/2’’ BSP
Description

Online Moisture/Water Content Sensor

Description:

The PPM-HLW-2B is especially designed for online measurement of moisture content in oil. With advanced technology, the PPM-HLW-2B is very sensitive to moisture content in oil and it is able to real time monitor the water content in oil online.

Measuring oil: lubricant oil, hydraulic oil, engine oil, fuel, insulating oil, turbine oil, etc.

Features:

1. The ability to measure dissolved water, free water, emulsified water.

2. High sensitivity to water content.

3. Special grounding technology adopted, high reliability and stability.

4. Well-designed probe structure, easy to clean.

Application:

1. Oil field, petroleum refining, oil storage warehouse, gas station.

2. Wind power, hydropower, thermal power, transformer substation.

3. Engineering machinery, vehicle, railway locomotive.

4. Steel, metallurgy, industrial production line.

5. Aviation, ship machinery.

Specification:

Moisture content range 0~5%, 0~10%, 0~20%
Accuracy 0.3%(typical), 0.5%
Resolution 0.1%
Temperature range -40~120℃
Accuracy 0.3%(typical), 0.5%
Resolution 0.1%
Output signal

Digital signal: RS485

Analog signal:4~20mA alternative
Power supply 9~28V DC, load current＜5mA
Pressure range ＜100bar
Operation temperature -40~85℃
Oil temperature -40~120℃
Process connection G1/2’’ BSP
Electric connection M8*1, 6 core cable
Cable 6 core, 2m, UL20866, 6*22AWG
EMC EN 61000-6-4:2007, EN 61000-6-2:2005
Housing material SS316L
Ingress protection IP66
Weight 0.25kg

Wiring diagram:

UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor

Dimension in mm:

UL20866 Cable Water Content Sensor G1/2'' BSP Oil Moisture Sensor
