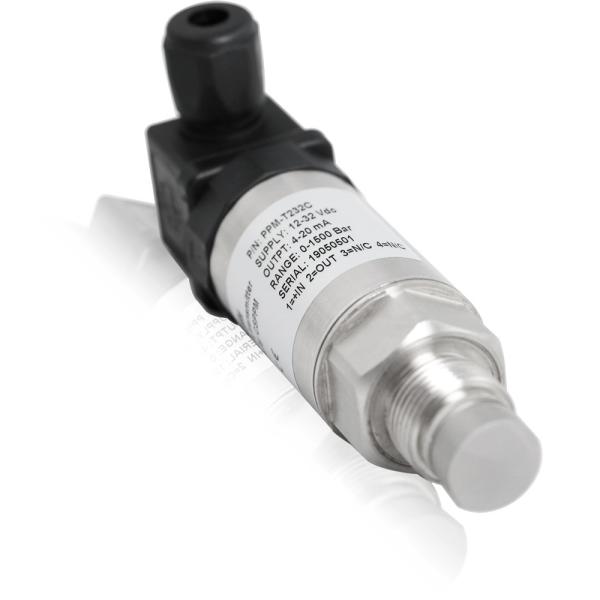

Aerial Plug 150MPa Pressure Transmitter Sensor For Coal Slurry
Aerial Plug 150MPa Pressure Transmitter Sensor For Coal Slurry
Aerial Plug 150MPa Pressure Transmitter Sensor For Coal Slurry
Aerial Plug 150MPa Pressure Transmitter Sensor For Coal Slurry
Specifications
Brand Name :
CSPPM
Model Number :
PPM-T232C
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Standard export packing, including instructions and certificate
Measured medium :
Non-corrosive gas and liquid to 17-4PH, 316L stainless steel
Pressure Type :
Sealed Reference Pressure, Ventilator Pressure
Measuring range :
0 ～ 6MPa… 10MPa… 150MPa
Power supply :
24VDC (12-32VDC)
Output signal :
4-20mA, 1-5VDC, 0-5VDC, 0-10VDC selectable
Mounting thread :
M20 × 1.5, G1 / 2, 1 / 2NPT
Electrical interface :
Hirschmann connector, aerial plug, direct outlet
Non-linear :
0.2% FS
Repeatability :
0.2% FS
Accuracy :
0.2% FS, 0.5% FS optional
Description

0 ～ 6MPa… 150MPa PPM-T232C Coal Slurry Flat Film Pressure Transmitter

Product Introduction:

The PPM-T232C flat film pressure transmitter is made of a special and sturdy stainless steel flush film with high performance intelligent operation compensation circuit. The all-stainless steel integrated structure ensures that the hard particle impact in the measured medium will not damage the sensor diaphragm. With anti-blocking, anti-particle impact, anti-vibration and other characteristics, it is suitable for high-temperature viscous and easy to block slurry, field, strong vibration, solid-liquid mixed fluid pressure measurement.

Applications :

Mud, coal slurry, pulp, crude oil, asphalt, etc., oil well measuring instruments

Environmental protection chemical coatings, polyurethane equipment, paint detection systems,

Food slurry and other solid-liquid mixtures etc.

Technical Parameters :

Measured medium : Non-corrosive gas and liquid to 17-4PH, 316L stainless steel
Pressure Type : Sealed Reference Pressure, Ventilator Pressure
Measuring range: 0 ～ 6MPa… 10MPa… 150MPa
Power supply : 24VDC (12-32VDC)
Output signal : 4-20mA, 1-5VDC, 0-5VDC, 0-10VDC selectable
Mounting thread : M20 × 1.5, G1 / 2, 1 / 2NPT
Electrical interface : Hirschmann connector, aerial plug, direct outlet
Non-linear : 0.2% FS
Repeatability : 0.2% FS
Accuracy: 0.2% FS, 0.5% FS optional
Long-term stability : 0.2% FS / year (typical value)
Working environment temperature : -20 ～ + 75 ℃
Working medium temperature : -40 ～ + 85 ℃

Definition of wiring:

Hirschmann Connector
2-wire system 3-wire system
Aerial Plug 150MPa Pressure Transmitter Sensor For Coal Slurry Power supply 1 1
Negative power 2 2
Signal positive 一 3
Direct outgoing
2-wire system 3-wire system

Aerial Plug 150MPa Pressure Transmitter Sensor For Coal Slurry

 Power supply red red
Negative power black black
Signal positive 一 green

Dimensions in mm :

Aerial Plug 150MPa Pressure Transmitter Sensor For Coal Slurry
