Explosion Proof PPM-T230E-222 Wellhead Pressure Equipment Pressure Transmitter
Explosion Proof PPM-T230E-222 Wellhead Pressure Equipment Pressure Transmitter
Specifications
Brand Name :
CSPPM
Model Number :
PPM-T230E-222
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Standard export packing, including instructions and certificate
Measured medium ： :
gas, liquid
Pressure type: :
Sealed reference pressure, ventilation gauge force
Pressure Range : :
0 ～ 0.1bar ... 2000bar
Power supply : :
9V ～ 36VDC
Output signal : :
4 ～ 20mA, 0 ～ 10VDC, 0 ～ 5VDC, 0.5 ～ 4.5VDC
Mounting Thread : :
M20 × 1.5, G1 / 2, 1 / 2NPT, 1 / 4NPT, G1 / 4 other customized
Electrical interface: :
M20 × 1.5, G1 / 2
Accuracy: :
0.2% FS, 0.5% FS
Description

Explosion Proof PPM-T230E-222 Wellhead Pressure Equipment Pressure Transmitter

Product Introduction:

The PPM-T230E-222 series is a product designed by our company for high-explosive hazardous places or working conditions. It uses imported premium materials and advanced MEMS technology to process into an integrated pressure core, which is equipped with a precision processing circuit. The temperature signal can be compensated, and it can output 4-20mA, 0-5VDC, 1-5VDC, 0-10VDC standard signals. It has the characteristics of high accuracy, anti-interference, strong overload and impact ability, moisture resistance and long-term stability. Time directly measures -196 ℃ liquid, no need to extend the tube, making the measured value true and reliable. A variety of pressure interfaces and electrical interfaces are available for customers to choose to meet the pressure measurement of various industrial processes.

This product has passed the explosion-proof certification of the Quality Supervision and Inspection Center of explosion-proof electrical products.

Applications :

NG cryogenic pressure measurement, CNG pressure measurement natural gas control system,

Natural gas compressors, dispensers, oil well platforms, wellhead pressure equipment,

BOP, pipeline equipment, mines, oil tanks, oil storage and transportation monitoring,

Petrochemical equipment, oil refining, oxygen transmission systems and pipelines, hydrogen equipment,

Power stations, boilers, thermal power units, petrochemicals, environmental protection, air pressure,

light industry, machinery, metallurgy and other pressure measurement environments with

explosion-proof requirements.

Technical Parameters :

Measured medium : gas, liquid
Pressure type: Sealed reference pressure, ventilation gauge force
Pressure Range : 0 ～ 0.1bar ... 2000bar
Power supply : 9V ～ 36VDC
Output signal : 4 ～ 20mA, 0 ～ 10VDC, 0 ～ 5VDC, 0.5 ～ 4.5VDC can be selected
Mounting Thread : M20 × 1.5, G1 / 2, 1 / 2NPT, 1 / 4NPT, G1 / 4 other customized
Electrical interface: M20 × 1.5, G1 / 2
Non-linearity: ≤0.2% FS
Repeatability: 0.2% FS
Accuracy: 0.2% FS, 0.5% FS
Long-term stability : 0.25% FS / year
Working medium temperature : -40 ℃ ～ + 85 ℃, -196 ℃ ～ + 85 ℃
Working environment temperature : -40 ℃ ～ + 75 ℃

Definition of wiring:

Direct outgoing
2-wire system 3-wire system
Explosion Proof PPM-T230E-222 Wellhead Pressure Equipment Pressure Transmitter Power supply red red
Negative power black black
Signal positive 一 green

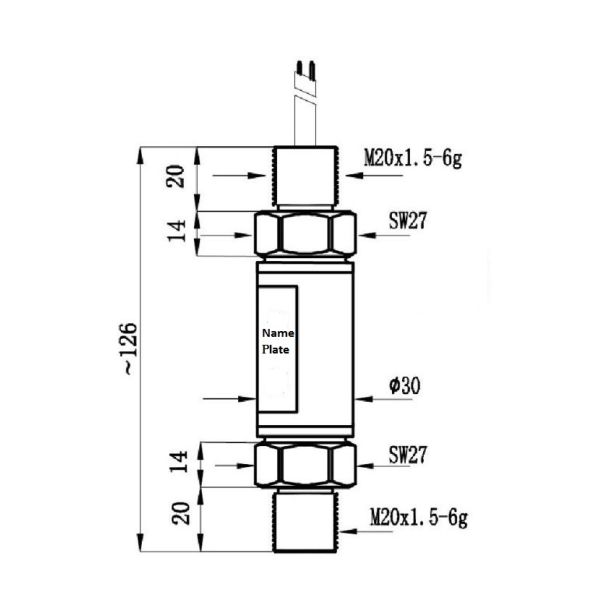

Dimensions in mm :

Explosion Proof PPM-T230E-222 Wellhead Pressure Equipment Pressure Transmitter
