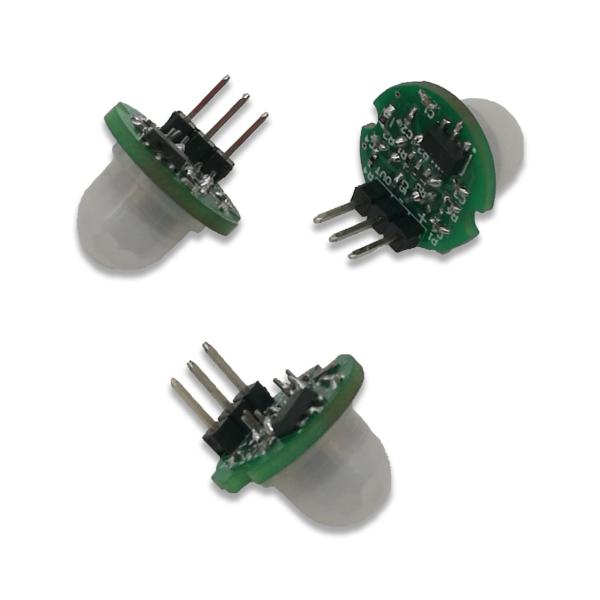

CSPPM 6 Meters Digital Infrared Temperature Sensor With PIR Probe
CSPPM 6 Meters Digital Infrared Temperature Sensor With PIR Probe
CSPPM 6 Meters Digital Infrared Temperature Sensor With PIR Probe
CSPPM 6 Meters Digital Infrared Temperature Sensor With PIR Probe
Specifications
Brand Name :
CSPPM
Model Number :
PPM-HW-05A
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Standard export packing, including instructions and certificate
Working voltage :
DC3.7V-22V
Quiescent current :
21uA
Output level :
high level 3.2V, low level 0V
High level delay time :
2~3600 seconds
Induction distance :
4-6 meters
Description

4-6 Meters PPM-HW-05A PIR Security System Intelligent Infrared Sensor

Product Description:

Use intelligent infrared sensor to convert the infrared signal into 15-bit ADC signal and compare it with

the set digital threshold to make a human body induction module that can output high and low level signals

Advantages
Low power consumption
Small product
Does not emit any type of radiation
Low price

Features:
The integration of PIR probes and conditioning circuits minimizes interference.
Someone enters the sensing range and outputs a high level. After leaving the sensing range,

the high level delays for a set time and then outputs a low level.
Both high level delay time and sensor sensing distance can be adjusted.
The enable port can be used to set the sensor on or off, for example, light sensitive control can be added.
Wide operating voltage range

Parameters:

Working voltage: DC3.7V-22V
Quiescent current: 21uA
Output level: high level 3.2V, low level 0V.
High level delay time: 2~3600 seconds
Induction distance: 4-6 meters
Working temperature: -20-+50℃
Induction angle: 110 degrees
It needs to wait for 20 seconds to work normally after power on, this is the normal warm-up time of infrared sensor.

Applications

Toys, Digital Photo Frame, TV , Refrigerator, Air-Condition, USB Alarms, PIR Motion Detection,

Intruder Detection , IOT Sensor, Sense Light, Computer Monitor, Security System , Car Security System,

Corridor and Stair Lights etc.
