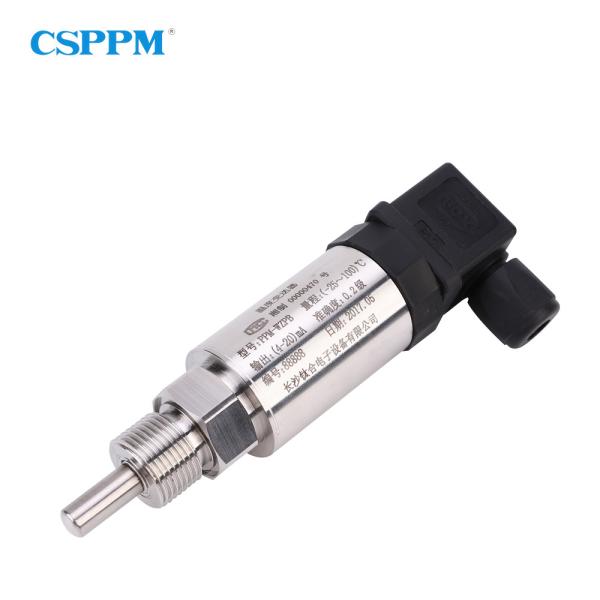

Stainless Steel 40MPa Temperature Transmitter Sensor 20mA Water Temperature Sensor
Stainless Steel 40MPa Temperature Transmitter Sensor 20mA Water Temperature Sensor
Stainless Steel 40MPa Temperature Transmitter Sensor 20mA Water Temperature Sensor
Stainless Steel 40MPa Temperature Transmitter Sensor 20mA Water Temperature Sensor
Stainless Steel 40MPa Temperature Transmitter Sensor 20mA Water Temperature Sensor
Stainless Steel 40MPa Temperature Transmitter Sensor 20mA Water Temperature Sensor
Specifications
Brand Name :
CSPPM
Model Number :
PPM-WZPB
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
3000pcs per month
Packaging Details :
Standard package
Measuring range :
-200 ～ 650 ℃
Power supply :
12-32VDC
Output :
4-20mA, 0-5VDC, 0-10VDC are optional
Accuracy :
0.2%, 0.5% optional
Temperature measuring element :
Pt100, Pt1000
Description

Hot Sale Stainless Steel Water Temperature Sensor Price 40 MPa 4-20mA

Products Description

PPM-WZPB is composed of a temperature sensor and a signal converter. The signal converter is installed in the cold end connecting box of the temperature sensor.

The temperature sensor is affected by the temperature to produce a differential voltage signal.
This signal is amplified by the amplifier, and then through the voltage and current conversion, then produce a 4-20mA current signal or other 0-5V signal.

Technical Parameters :

Model
Thermocouple PPM-WR series, thermal resistor PPM-WZ series
Measure Range
-200 to 1600℃
Power Supply
12-32VDC
Output Signal
4-20mA, 0-5VDC, 0-10VDC optional
Precision
0.1%,0.2%,0.5%, optional
Display Method
LCD or LED display
Operation temperature
-40 to 85℃
Environment Temperature Effect
0.25%/10℃
thermometric element
Pt100,CU50,S,B,R.E,K,J,T optional
Protective tube diameter
Φ4, Φ16, Φ18, Φ20, Φ22, Φ28, Φ35, Φ40 Alternative
connecting
without fixing device, fixed screw-thread, movable screw thread, movable flange, fixed flange GB/ANSI standard, optional
Insert length
50100150200300400500750100 or appointed
Protective tube material
iCr18Ni9Ti, ceramics, High alumina or corundum tube
Nominal pressure
≦20MPa,≦10MPa,≦4.0MPa,≦2.5MPa,
Connecting box material
Cast aluminum alloy, stainless steel, blast proof connection box
Protective level
IP65
Response Time
90s-180s,30s-90s,10s-30s,4.2s,2.4s,1.3s, optional
Environment Humidity
95%RH, Non-condensing

Definition of wiring:

Hirschmann Connector
2-wire system 3-wire system
Stainless Steel 40MPa Temperature Transmitter Sensor 20mA Water Temperature Sensor Power supply 1 1
Negative power 2 2
Signal positive 一 3
Direct outgoing
2-wire system 3-wire system
Stainless Steel 40MPa Temperature Transmitter Sensor 20mA Water Temperature Sensor Power supply red red
Negative power black black
Signal positive 一 green

Dimensions in mm :

Stainless Steel 40MPa Temperature Transmitter Sensor 20mA Water Temperature Sensor
