5VDC 700bar Diaphragm Type Pressure Sensor IP65 Ingress Protection
5VDC 700bar Diaphragm Type Pressure Sensor IP65 Ingress Protection
5VDC 700bar Diaphragm Type Pressure Sensor IP65 Ingress Protection
5VDC 700bar Diaphragm Type Pressure Sensor IP65 Ingress Protection
Specifications
Brand Name :
CSPPM
Model Number :
PPM-T232A
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Standard export packing, including instructions and certificate
Measuring medium :
Compatible with 304 material
Pressure type :
Gauge pressure(G)
Pressure range :
0～…400bar…600bar…700bar
Power supply :
5VDC、（12～36）VDC
Output signal :
（4～20）mA、(0.05～2.6)VDC
Nonlinearity :
≦0.2%FS
Repeatability :
≦0.1%FS
Accuracy :
0.25%FS、0.5%FS
Description

0～700bar PPM-T232A Polyurethane Equipment Pressure Sensor

Description

PPM-T232A flat film pressure transmitter is made of special and rugged stainless steel flush and thick film with high performance intelligent operation compensation circuit. The all-stainless steel integrated structure ensures that the hard particle impact in the measured medium will not damage the sensor diaphragm. With anti-blocking, anti-particle impact, anti-vibration and other characteristics, it is suitable for high-temperature viscous and easy to block slurry, field, strong vibration, solid-liquid mixed fluid pressure measurement.

Applications :

Mud, coal slurry, pulp, crude oil, asphalt, etc., oil well measuring instruments

Environmental protection chemical coatings, polyurethane equipment, paint detection systems, etc.

Food slurry and other solid-liquid mixtures.

Specifications

Measuring medium Compatible with 304 material
Pressure type Gauge pressure(G)
Pressure range 0～…400bar…600bar…700bar
Power supply 5VDC,(12～36)VDC
Output signal (4～20)mA,(0.05～2.6)VDC
Nonlinearity ≦0.2%FS
Repeatability ≦0.1%FS
Accuracy 0.25%FS,0.5%FS
Long-term stability ≦0.15%FS/Y
Operation temp -40℃～85℃
Zero temp. drift ≦0.03%FS
FS temp. drift ≦0.03%FS
Response time ≦5ms
Output impedance 1.6kΩ
Insulation resistance ≧1000MΩ/100VDC
Overpressure 1.2 times full scale
Damage pressure 2 times full scale
Process connection G1/4, G1/2, M20X1.5 or custom
Materials 304 stainless steel
Ingress protection IP65
Electrical connections Hirschmann connector, Other connections can be customized

Definition of wiring:

Hirschmann Connector
2-wire system 3-wire system
5VDC 700bar Diaphragm Type Pressure Sensor IP65 Ingress Protection Power supply 1 1
Negative power 2 2
Signal positive 一 3
Direct outgoing
2-wire system 3-wire system
5VDC 700bar Diaphragm Type Pressure Sensor IP65 Ingress Protection Power supply red red
Negative power black black
Signal positive 一 green

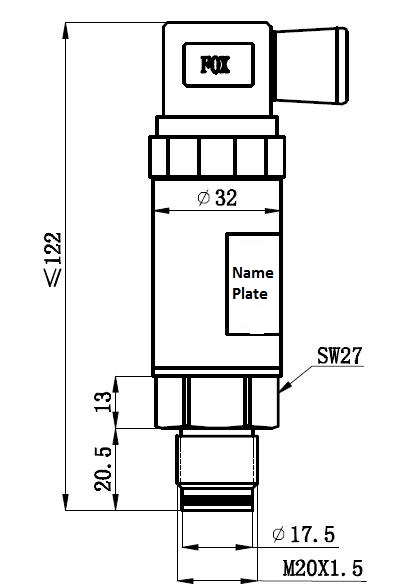

Dimensions in mm :

5VDC 700bar Diaphragm Type Pressure Sensor IP65 Ingress Protection
