300N 0.5mV/V Tension Measurement Sensors For Stranding Machines
300N 0.5mV/V Tension Measurement Sensors For Stranding Machines
300N 0.5mV/V Tension Measurement Sensors For Stranding Machines
300N 0.5mV/V Tension Measurement Sensors For Stranding Machines
Specifications
Brand Name :
CSPPM
Model Number :
PPM-TG-1
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Standard export packing, including instructions and certificate
Measuring type :
Tension
Measuring range :
0-300N
Power supply :
5VDC
Output signal :
mV
Output sensitivity :
2.0±0.5mV/V
Nonlinearity :
≦0.15%FS
Repeatability :
≦0.15%FS
Accuracy :
0.5%FS
Description

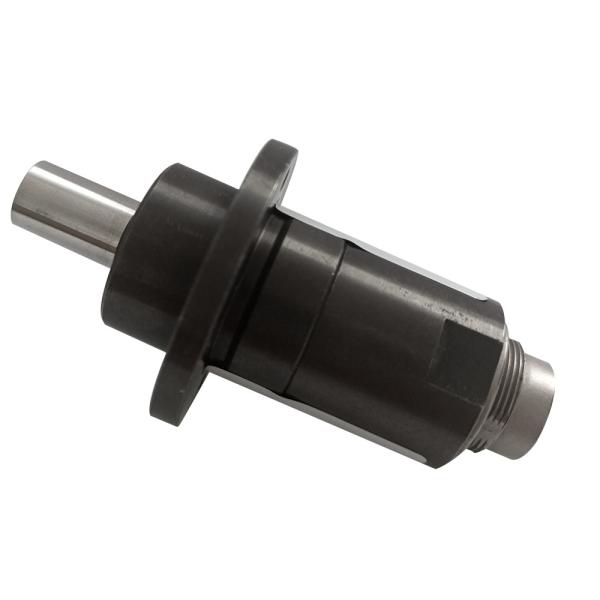

0-300N PPM-TG-1 Stranding Machines Tension Sensor

Product Introduction:

The product with high-quality steel and high-precision resistance strain gauges, it's processed by high-low temperature aging and thousands of times of pressure fatigue test to produce a mV signal output sensor. Stable output, strong anti-interference ability, Fast response (response time <2ms) Ingress protection IP65 .

Described from several aspects:

A:Material of Housing#45steel/304 stainless steel

B:Axle pin material,40CrNiMo

C:High stability, low temperature of product

D:Electrical connections, Aviation connector/Direct outlet, Ingress protection IP65

Applications :

Wire measuring the tension of thin wire and thin cable materials,

suitable for all kinds of stranding machines, equipment, cutting equipment sensors.

Technical Parameters :

Measuring type Tension
Measuring range 0-300N
Power supply 5VDC
Output signal mV
Output sensitivity 2.0±0.5mV/V
Nonlinearity ≦0.15%FS
Repeatability ≦0.15%FS
Accuracy 0.5%FS
Long-term stability ≦0.2%FS/Year
Operation temp -25℃—85℃
Zero temp. drift ≦0.015%FS
FS temp. drift ≦0.015%FS
Response time <3ms
Output impedance 350Ω
Insulation resistance >1000MΩ/100VDC
Overpressure 150%FS
Damage pressure >300%FS
Materials

Plug:40CRNIMO

Housing:#45steel/304 stainless steel
Ingress protection IP65
Electrical connections Aviation connector/Cable connection

Definition of wiring:

300N 0.5mV/V Tension Measurement Sensors For Stranding Machines

300N 0.5mV/V Tension Measurement Sensors For Stranding Machines

Dimensions in mm :

300N 0.5mV/V Tension Measurement Sensors For Stranding Machines
