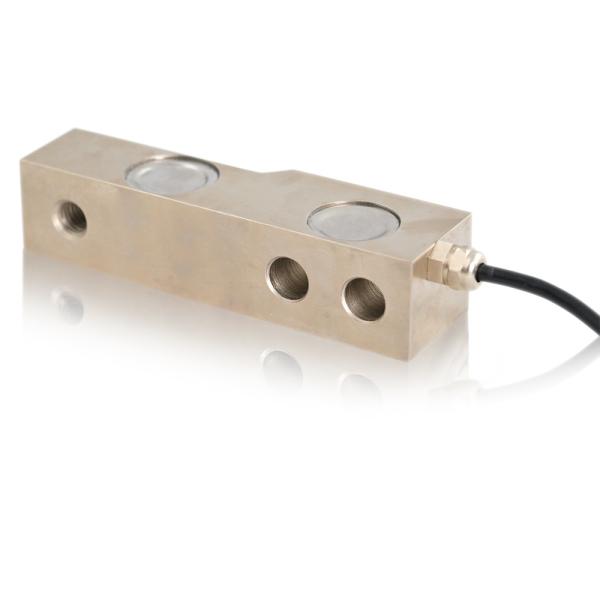

Precision 0.02%FS 20t Cantilever Load Cell Rugged Stainless Steel
Precision 0.02%FS 20t Cantilever Load Cell Rugged Stainless Steel
Precision 0.02%FS 20t Cantilever Load Cell Rugged Stainless Steel
Precision 0.02%FS 20t Cantilever Load Cell Rugged Stainless Steel
Specifications
Brand Name :
CSPPM
Model Number :
PPM228-1A
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Standard export packing, including instructions and certificate
Capability :
0.05~20 t
Comprehensive precision :
0.02%FS 0.03%FS
Sensitivity :
2 mV/V
Creep :
±0.02%FS/30min
Zero Output :
±1%FS
Temperature effect on zero :
±0.02%FS/10℃
Temperature effect on output :
±0.02%FS/10℃
Operating temperature range :
-20℃~+65℃
Input resistance :
380±10Ω
Output resistance :
350±3Ω
Insulation resistance :
＞5000MΩ
Description

Cantilever Load Cell

Description

The PPM228-1A Cantilever Load Cells are available in the capacities from 0.05t to 1t. Rugged all stainless steel construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board in the cable.

The PPM228-1A are suitable for Truck scale, Monorail crane scale, Platform scale, Hopper scale and other electronic weighing devices.

Specification

Capability 0.05~20 t
Comprehensive precision 0.02%FS 0.03%FS
Sensitivity 2 mV/V
Creep ±0.02%FS/30min
Zero Output ±1%FS
Temperature effect on zero ±0.02%FS/10℃
Temperature effect on output ±0.02%FS/10℃
Operating temperature range -20℃~+65℃
Input resistance 380±10Ω
Output resistance 350±3Ω
Insulation resistance ＞5000MΩ
Safe overload 150%FS
Bridge voltage 10V DC
Material Alloy or Stainless steel
Protection class IP 67
Electronic connection

Input+: Red Input-:Black

Output+: Green Output-:White

Dimensions: mm

Capacity Dimensions
t A B C D E F Φ M
Inch mm
0.05~0.1 125 24 8 47 58 30 8.5 1/4-28 M8
0.2~1 136 32 15 25 77 38 13 1/2-20 M12
1.5~5 171 38 19 38 96 48 20 3/4-16 M18×1.5
7~10 222 51 25 51 119 60 25 1’’-14 M24×2
15~20 280 60 28 72 150 70 31 1-12 M30×2
