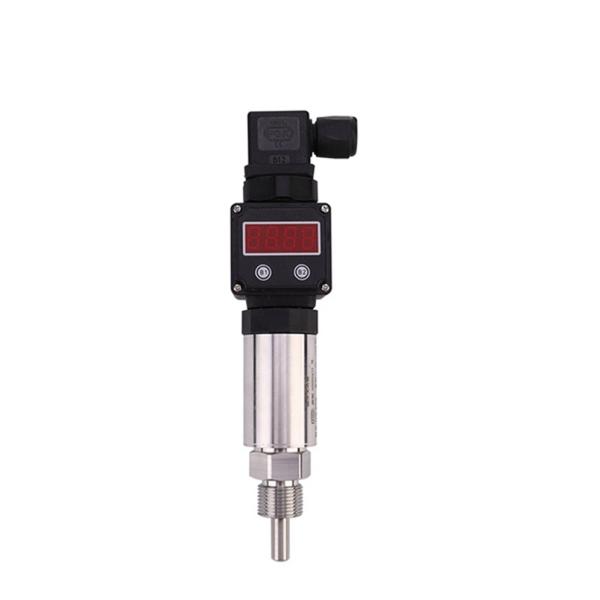

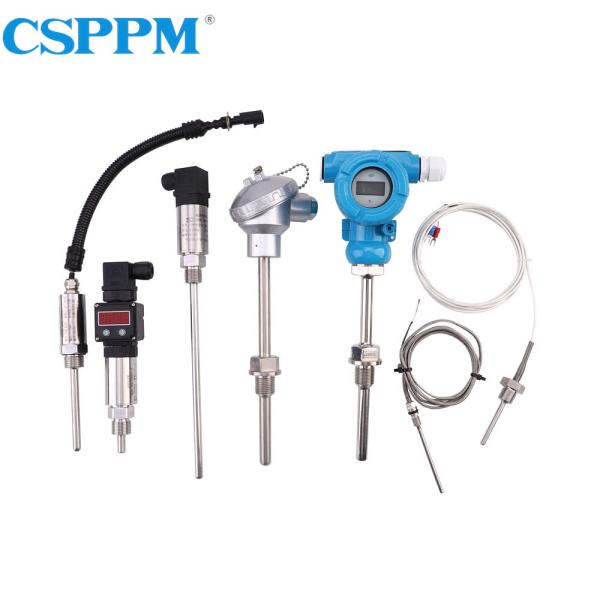

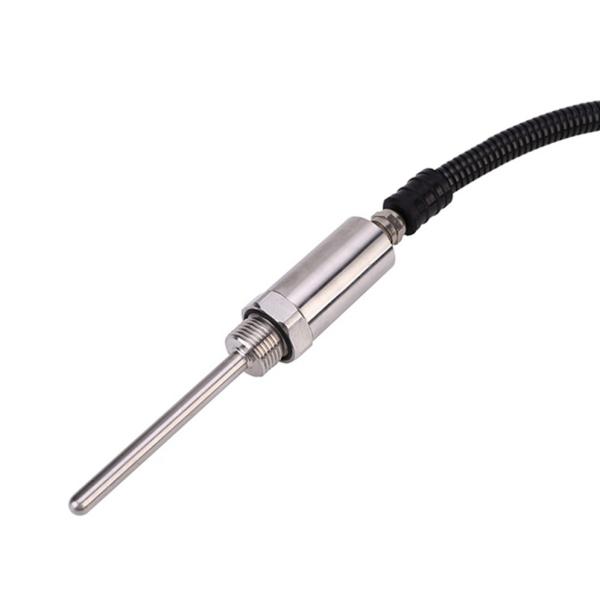

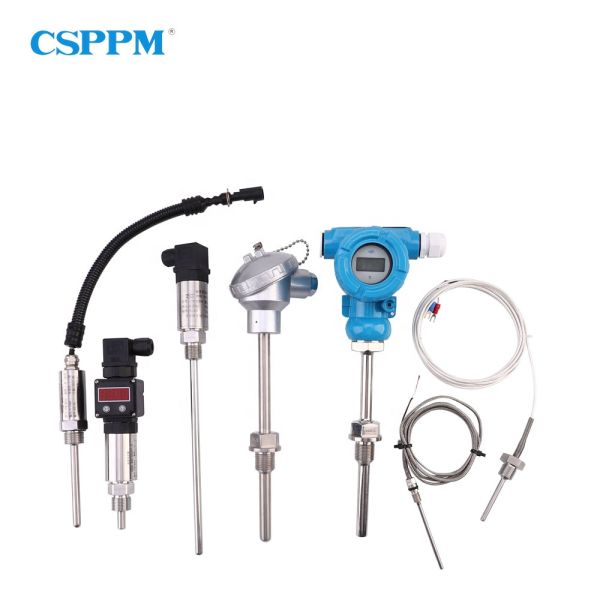

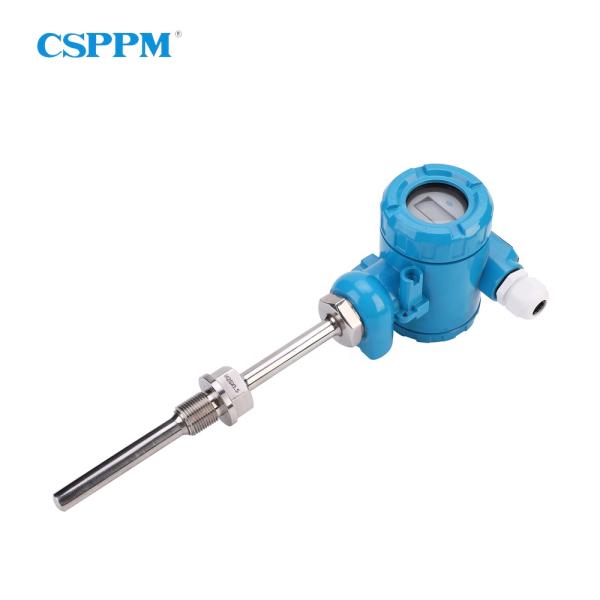

CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
Specifications
Brand Name :
CSPPM
Model Number :
PPM-WZPB-2
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union, T/T, L/C
Packaging Details :
Standard package
Measuring Media :
Liquids, gases
Pressure rating :
40 MPa
Measuring element :
Pt100
Measuring range :
From -50...100ºC to -200...600ºC
Power supply :
12-32VDC
Output :
4-20mA, 0-5VDC or 0-10VDC optional
Accuracy :
0.25%FS
Ambient temperature :
-40~85ºC
Storage temperature :
-40~85ºC
Temperature coefficients :
0.25%/10ºC
Ambient humidity :
95%RH
Dynamic response :
0.3s
Protection :
IP65
Process connection :
G1/4, M20*1.5, or other on request
Electrical connection :
DN43650 L-connector
Materials :
Wetted parts: stainless steel Housing: stainless steel
Probe diameter :
Φ4,Φ6...Φ16 optional
Installation length :
10, 25...500 mm optional
Description

Features

1. They can measure temperatures of liquid, steam,gas and solid in producing.
2. Characteristics are shock resistant, high-temperature resistant and long life.
3. Used for temperature measuring and automatic controlling in scope from -200 to 600ºC.

Description

It is composed of a temperature sensor and a signal converter. The signal converter is installed in the cold end connecting box of the temperature sensor. The temperature sensor is affected by the temperature to produce a differential voltage signal. This signal is amplified by the amplifier, and then through the voltage and current conversion, then produce a 4-20mA current signal or other 0-5V signal.

Measuring Media Liquids, gases
Pressure rating 40 MPa
Measuring element Pt100
Measuring range From -50...100ºC to -200...600ºC
Power supply 12-32VDC
Output 4-20mA, 0-5VDC or 0-10VDC optional
Accuracy 0.25%FS
Ambient temperature -40~85ºC
Storage temperature -40~85ºC
Temperature coefficients 0.25%/10ºC
Ambient humidity 95%RH
Dynamic response 0.3s
Protection IP65
Process connection G1/4, M20*1.5, or other on request
Electrical connection DN43650 L-connector
Materials Wetted parts: stainless steel
Housing: stainless steel
Probe diameter Φ4,Φ6...Φ16 optional
Installation length 10, 25...500 mm optional

CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating

CE Pt1000 Temp Sensor With High Accuracy 40MPa Pressure Rating
