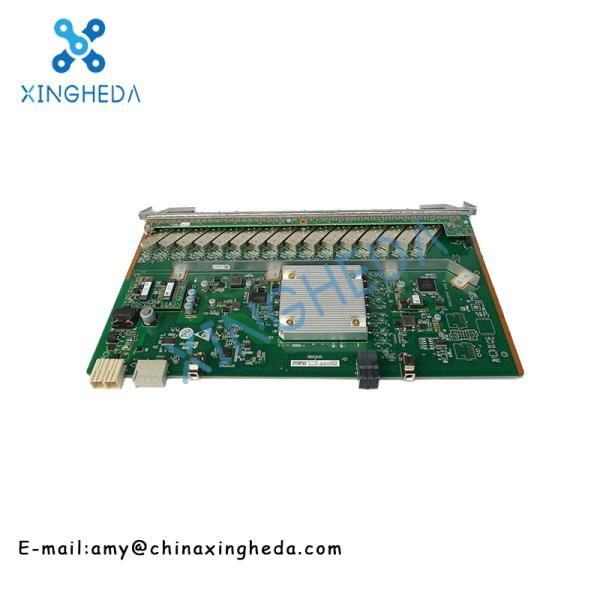

Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2
Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2
Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2
Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2
Specifications
Brand Name :
HUAWEI
Model Number :
GPUF
Place of Origin :
CHINA
MOQ :
1pc
Price :
$100-$200
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500pcs/week
Delivery Time :
3-7 work days
Packaging Details :
1pc into a spare inner foam carton and pack with exteral wooden carton
Type :
BTS
Products status :
Stock
Product name :
HUAWEI GPUF
Shipping term :
DHL,Fedex,UPS,EMS,AIR
Condition :
Brand New
Warranty :
Six month
Description

Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2

Product Description:

The H901GPUF board is a 16-port GPON Interface Board. It works together with the optical network terminal (ONU) to provide GPON access services.

GPON Service Board Comparison:

Specification H901GPHF/H902GPHF H901GPUF H901GPLF H901GPSF
Application scenario FTTC/B/D, D-CCAP, FTTH, and FTTO/FTTM

FTTC/B/D,D-CCAP,

FTTH,FTTO/FTTM

FTTC/B/D,FTTH,

FTTO/FTTM

 FTTH
Port quantity 16 16 16 16
Forwarding capability 40 Gbit/s 40 Gbit/s 40 Gbit/s 40 Gbit/s
Port rate

Upstream:

1.244 Gbit/s

Upstream:

1.244 Gbit/s

Upstream:

1.244 Gbit/s

Upstream:

1.244 Gbit/s

Downstream:

2.488 Gbit/s

Downstream:

2.488 Gbit/s

Downstream:

2.488 Gbit/s

Downstream:

2.488 Gbit/s
Maximum split ratio 1:128 1:128 1:128 1:128
ONU-based shaping Yes Yes Yes Yes
Controlled optical signal transmission of the optical module Yes Yes Yes Yes
Temperature query and high temperature alarm Yes Yes Yes Yes
Automatic shutdown at high temperature Yes Yes Yes Yes
Energy conservation for service boards Yes Yes No Yes
Maximum distance difference between 2 ONUs under the same PON port(board capability) 40 km 40km 40km 40 km
MAC address table size 131072 32768 32768 16384
Downstream FEC Yes Yes Yes Yes
Upstream FEC Yes Yes Yes Yes
Rogue ONT detection and isolation Yes Yes Yes Yes
Assured bandwidth 1238784 kbit/s 1238784 kbit/s 1238784 kbit/s 1238784 kbit/s
T-CONTs per GPON port 1024 1024 1024 1024
ONUs per GPON port 128 128 128 128
GEM ports per board 16384 16384 16384 16384
GEM ports per GPON port 3872 3872 3872 3872
Service flows per board 16368 16368 16368 16368
9216-byte jumbo frames Yes No Yes No
Routes/ARP table size 196608 196608 196608 65536
1588v2 Yes Yes Yes No
NTP Yes Yes Yes Yes
HQoS Yes No No No
Security (Anti-DoS, Anti-MAC/IP Spoofing) Yes Yes Yes Yes
Y.1731 PM Yes Yes Yes No
PON ISSU Yes No No Yes
D-CCAP Yes No No No
GPON type B protection (single homing) Yes Yes Yes Yes
GPON type B protection (dual homing) Yes No No No
GPON Type C protection (single homing) Yes Yes Yes Yes
GPON type C protection (dual homing) Yes No No No
Power budget per GPON port Class B+ (28 dB, most common)
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB
Bandwidth per T-CONT 1 Mbit/s (in the minimum delay mode)
128 kbit/s (in the maximum bandwidth usage mode)

Product Details:

Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2

Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2


If you are interested, please let us know the specific model. We will provide the best service and the best price!
Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2
Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2
Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2
Huawei GPUF 16-Port GPON Interface Board H901GPUF for MA5800-X2
