Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card
Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card
Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card
Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card
Specifications
Brand Name :
HUAWEI
Model Number :
GPUF
Place of Origin :
CHINA
MOQ :
1pc
Price :
$100-$200
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500pcs/week
Delivery Time :
3-7 work days
Packaging Details :
1pc into a spare inner foam carton and pack with exteral wooden carton
Type :
BTS
Products status :
Stock
Product name :
HUAWEI GPUF
Shipping term :
DHL,Fedex,UPS,EMS,AIR
Condition :
Brand New
Warranty :
Six month
Description

Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card

Product Description:

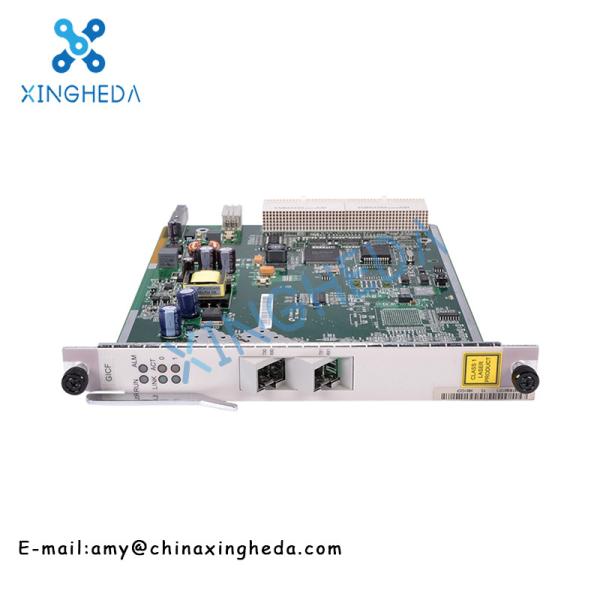

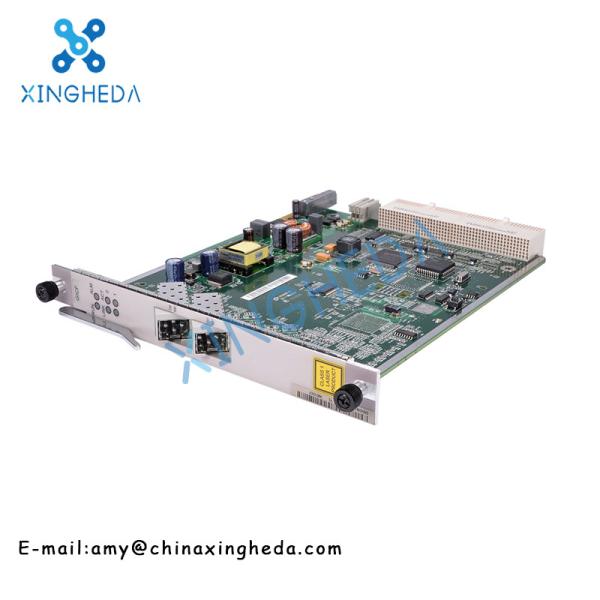

H801GICF Board

The H801GICF board is a 2-port GE optical interface card, providing upstream or cascading optical ports

Feature and Specifications:

Upstream Interface Boards Comparison

The device supports GE and 10GE upstream interface boards.

In the table, "Yes" indicates "supported" and "No" indicates "not supported".

Table 1 Specifications lists of upstream interface boards

Board Upstream Transmission (*) Cascading (*) Intra-board aggregation and Inter-board aggregation Clock Feature Port Pluggable Optical Module Pluggable Electrical Module
H801GICF Yes Yes Yes No Two GE ports SFP SFP

Note: You can run the network-role command in the GIU mode to switch the role of a port. Default role is uplink.

Parameters:

Power Consumption and Maximum Frame Size of Boards

You can query power consumption, maximum frame size, and normal operating temperature of all boards.

lists the power consumption and maximum frame size of boards. "-" indicates N/A.

The operating temperature of all the boards is -40°C to +65°C. The lowest board startup temperature is -25°C.

NOTE:

The power consumption of the board is tested in the following conditions:

Working voltage: -53.5 V DC.

Ambient temperature: 25 °C.

Static power consumption: All ports do not carry any loads. Specifically, users under POTS ports hang up phones, xDSL ports are deactivated, and optical modules are not installed on optical ports

Maximum power consumption: All ports fully carry loads. However, only 25% users under POTS ports concurrently pick up phones and the feeding current is 20 mA.

The board power consumption slightly varies with the power module configured for the board and discreteness of components.

Table 1 Power consumption and maximum frame size of boards

Board Power Consumption Maximum Frame Size
Upstream interface board (GIU)
H801GICF

Static: 3.9 W

Maximum: 3.9 W

 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.

The basic working principle of the H801GICF board is as follows:

The control module loads the board software, controls the running of the software, and manages the entire board.

The conversion module supports transparent transmission of the data.

The power module supplies power to other functional modules of the board.

Product Details:

Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card

Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card


If you are interested, please let us know the specific model. We will provide the best service and the best price!
Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card
Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card
Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card
Huawei GICF H801GICF 2-port GE optical interface 10G uplink OLT card
