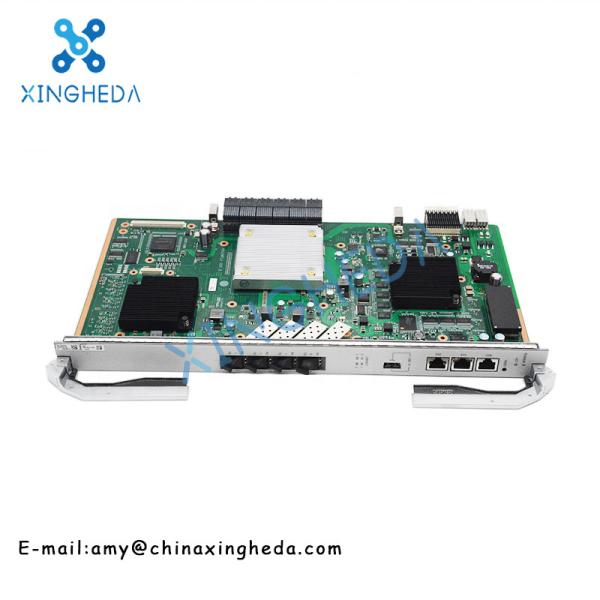

Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board
Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board
Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board
Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board
Specifications
Brand Name :
Huawei
Model Number :
Huawei H903MPLA
Place of Origin :
CHINA
MOQ :
1pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500pcs/week
Delivery Time :
3-7 work days
Packaging Details :
1pc into a spare inner foam carton and pack with exteral wooden carton
Type :
POWER MODULE
Products status :
Stock
Product name :
Huawei 03025KFE
Shipping term :
DHL,Fedex,UPS,EMS,AIR
Condition :
Brand New
Warranty :
Six month
Description

Huawei H903MPLA 03025KFE MA5800 series 4-port 10GE OLT MPLA Control Board

Product Description:

The H901MPLA board is a control board. It is the core of the system control and service switching and aggregation. The H901MPLA board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel. In this manner, the H901MPLA board configures, manages, and controls the device, and also implements the simple route protocol functions.

Product Specification:
Function
Bandwidth per slot 100Gbit/s (load sharing mode)
MAC address table 262143
Access ONT 17408
Multicast user 17408
IPv4 routing table 65536
IPv6 routing table 16384
Service port 139264
ARP table 131072
Maximum Frame Size 2052 bytes. After the jumbo frame function is enabled,
a maximum of 9216 bytes can be supported.
Environment
Operating temperature -40°C to +65°C
Power consumption (W) Static: 53
Maximum: 87
Mechanical Specification
Dimensions(mm) 31 (W)x 258.9 (D) x 399.1 (H)
Weight(kg) 1.24

Board

H901HMPLA

H902MPLA

H901MPLB

H901MPSC
Maximum Bandwidth per Slot(load sharing mode) 100 Gbit/s 100 Gbit/s 200 Gbit/s 80 Gbit/s
Upstream transmission or cascading port 4 x 10GE/GE ports 4 x 10GE/GE ports 4 x 10GE/GE ports 4 x 10GE/GE ports
BITS/TOD port No No No Yes (1 external clock/time input and output)
MAC address table 262143 262143 262143 262143
Access ONT 17408 17408 17408 4096
Number of static programs configurable
  • 4096 (Before the V100R017C00 version)
  • 8192 (V100R017C00 and later versions)
 8192
  • 4096 (Before the V100R017C00 version)
  • 8192 (V100R017C00 and later versions)
 8192 (V100R017C10 and later versions)
Maximum number of online programs supported

V100R016C00 version: 4000

V100R016C10 version:
  • IPv4: 4000
  • IPv6: 2000

V100R017C10 and later versions:

  • IPv4: 8000
  • IPv6: 2000
  • IPv4: 8000
  • IPv6: 2000

V100R016C00 version: 4000

V100R016C10 version:
  • IPv4: 4000
  • IPv6: 2000

V100R017C10 and later versions:

  • IPv4: 8000
  • IPv6: 2000

V100R017C10 and later versions:

  • IPv4: 8000
  • IPv6: 2000
ARP table
  • 66048 (Before the V100R017C10 version)
  • 98816 (V100R017C10 version)
  • 131072 (V100R018C00 and later versions)
  • 66048 (V100R017C00 version)
  • 98816 (V100R017C10 version)
  • 131072 (V100R018C00 and later versions)
  • 66048 (Before the V100R017C10 version)
  • 98816 (V100R017C10 version)
  • 131072 (V100R018C00 and later versions)
  • 98816 (V100R017C10 version)
  • 131072 (V100R018C00 and V100R018C10 versions)
  • 32768 (V100R019C00 and later versions)

Product Details:

Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board

Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board


If you are interested, please let us know the specific model. We will provide the best service and the best price!
Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board
Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board
Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board
Huawei H903MPLA 03025KFE MA5800 Series 4-Port 10GE OLT MPLA Control Board
