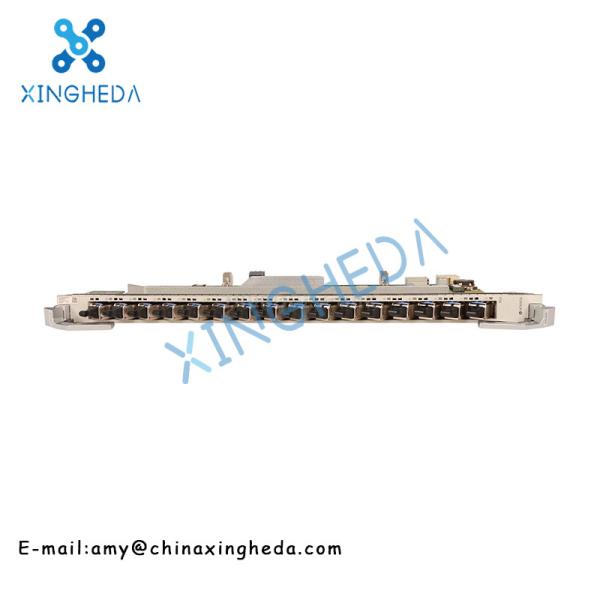

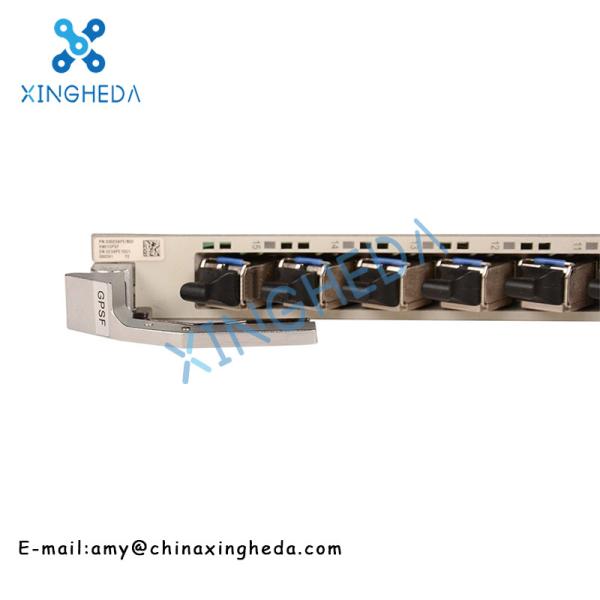

Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board
Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board
Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board
Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board
Specifications
Brand Name :
Huawei
Model Number :
Huawei GPSF
Place of Origin :
CHINA
MOQ :
1pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500pcs/week
Delivery Time :
3-7 work days
Packaging Details :
1pc into a spare inner foam carton and pack with exteral wooden carton
Type :
POWER MODULE
Products status :
Stock
Product name :
Huawei GPSF
Shipping term :
DHL,Fedex,UPS,EMS,AIR
Condition :
Brand New
Warranty :
Six month
Description

Huawei GPSF 02311FGC H901GPSF MA5800 series 16-port GPON OLT interface board

Product Description:

Huawei GPSF apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system

Support split ration 1:128

Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s

Interface Type: SC/PC

Max Transmit Distance: 20KM

Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm

Product Specification:
Service ports
GPON Port 16-GPON Port
GPON SFP Module Specification
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 25W; Maximum:50W
Maximum Frame Size 2004 bytes
9216 bytes (jumbo frame enabled)
Operating temperature -40°C to +65°C

Product Details:

Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board

Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board

Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board


If you are interested, please let us know the specific model. We will provide the best service and the best price!
Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board
Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board
Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board
Huawei GPSF 02311FGC H901GPSF MA5800 Series 16-Port GPON OLT Interface Board
