Heat Resistant wire 1.0 sq.mm H05V2-U Fixed Wiring Cable Copper conductor Heat resistant PVC Compound 100 m/ coil
Heat Resistant wire 1.0 sq.mm H05V2-U Fixed Wiring Cable Copper conductor Heat resistant PVC Compound 100 m/ coil
Specifications
Brand Name :
Shenzhen chengtiantai cable
Model Number :
H05V2-U-1.0
Certification :
CE, CB, Rhos, CCC
Place of Origin :
China mainland
MOQ :
100 Unit
Price :
On Request
Packaging Details :
Coil in foil / drum
Delivery Time :
15 working days after payment
Rated Voltage :
300/500 V
Conductor :
copper conductor
Conductor Type :
solid
Insulated :
PVC compound
Temperature Rating :
- 5 ℃ ~ + 90 °C
Minimum Bending Radius :
4 × outer diameter
Description

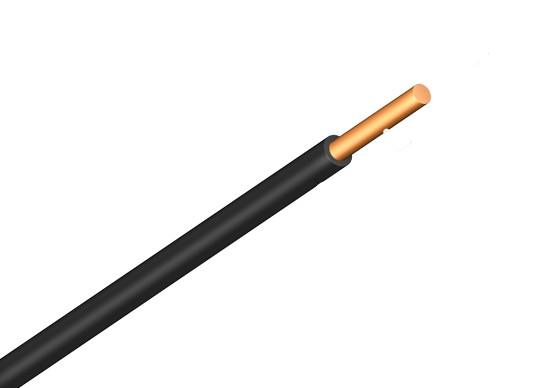

H05V2-U single-core non-sheathed cable for internal wiring 1 x 1.0mm²


Quick details:

Product category: H05V2-U
Number of cores: 1
Nominal cross section: 1.0 mm²
Overall diameter approx: 2.3 mm
Net weight approx: 13 kg / km
Standard delivery length: 100 m
Conductor DC resistant at 20°C: 36 Ohm / km
Current carrying capacity: 18.1 A

Description

Applications:
The cable may first be used for fixed, protected installation in or at lighting fixtures with maximum 90°C conductor temperature

Standards/references:

  • International: IEC 60227 IEC07
  • National: GB/T5023-2008

Certificates, approvals:

  • CE
  • CCC (China Compulsory Certificate, CCC)
  • All substances of the cable meet the requirements of RoHS Directive

Color options:
Red, yellow, blue, black, green, green/yellow, other colors can be supplied on request


Characteristics

Construction characteristics
Conductor material bare copper class 1
Insulation Lead-free heat resistant PVC compound
Dimensional characteristics
Nominal cross-section 1.0 mm2
No of Conductors 1
Nominal overall diameter 2.3 mm
Approximate weight 13 kg / km
Electrical characteristics
Rated voltage Uo/U (Um) 300 / 500 V
Maximum current rating air 25°C 20 A
Maximum DC resistance, conductor 20°C 18.1 Ω / km
Test voltage 2000 V
Usage characteristics
Maximum operating temperature 90 °C
Short-circuit max conductor temperature(duration up to 5 S) 160 °C
Temperature range - 5 to + 90 °C
Installation conditions
Installation temperature 5 °C
Minimum bending radius 4 x cable diameter
Recommended maximum tensile stress 50 N / mm²
Note:
  • Photographs are not to scale and do not represent detailed images of the respective products
  • Prices are net prices without VAT and surcharges
  • Sale to business customers only
  • Information in this document is subject to change without notice
