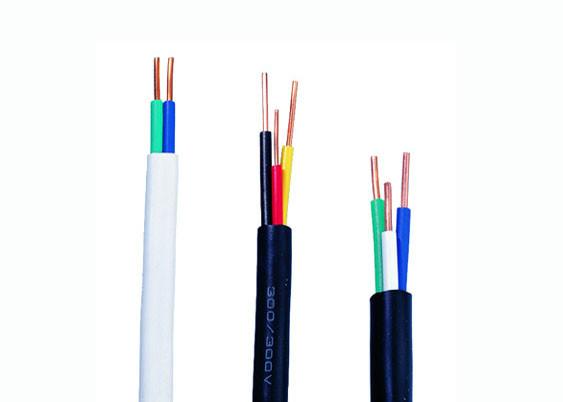

3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10
3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10
Specifications
Brand Name :
Shenzhen Chengtiantai cable
Model Number :
BVV
Certification :
CE, CB, CCC
Place of Origin :
China mainland
MOQ :
100 Unit
Price :
On request
Payment Terms :
L/C, T/T
Supply Ability :
50000 m / day
Delivery Time :
15 working day
Packaging Details :
coil in foil / drum
Rate Voltage :
300/500 V
Conductor Material :
Bear Copper Solid or Strand
No. of Conductor :
3 Core
Insulaton :
PVC
Inner Sheath :
PVC
Outer sheath :
PVC
Description


300/500V 70°C PVC INSULATED AND SHEATHED, THREE CORES

Application

For installation exposed, or in raceway,wet or dry location.

Classification

Maximum conductor temperature 70°C

Circuit voltage does not exceed 500 volts.

Standard :

60227 IEC 10

Conductor :

Solid or Stranded annealed copper,size 1.5 - 35 mm²

Insulation :

Polyvinylchloride (PVC)

Sheath : Polyvinylchloride (PVC)

3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10

Nominal
cross
sectional
area		 Number
and
diameter
of wire		 Insulation
thickness		 Inner
sheath
thickness		 Outer
sheath
thickness		 Overall
diameter		 Minimum
insulation
resistance
at 70°C		 Cable
weight
(approx.)		 Standard
length
min. max.
(mm²) (No./mm) (mm) (mm) (mm) (mm) (MΩ.km) (kg/km) (m)
3 × 1.5 1/1.38 0.7 0.4 1.2 8.0 10.5 0.011 137 1000/D
3 × 1.5 7/0.53 0.7 0.4 1.2 8.2 11.0 0.01 147 1000/D
3 × 2.5 1/1.78 0.8 0.4 1.2 9.2 12.0 0.01 190 1000/D
3 × 2.5 7/0.67 0.8 0.4 1.2 9.4 12.5 0.009 200 1000/D
3 × 4 1/2.25 0.8 0.4 1.2 10.0 13.0 0.0085 251 1000/D
3 × 4 7/0.85 0.8 0.4 1.2 10.5 13.5 0.0077 264 1000/D
3 × 6 1/2.74 0.8 0.4 1.4 11.5 14.5 0.007 325 1000/D
3 × 6 7/1.04 0.8 0.4 1.4 12.0 15.5 0.0065 355 1000/D
3 × 10 1/3.56 1.0 0.6 1.4 14.0 17.5 0.007 534 1000/D
3 × 10 7/1.35 1.0 0.6 1.4 14.5 19.0 0.0065 583 1000/D
3 × 16 7/1.70 1.0 0.6 1.4 16.5 21.5 0.0052 819 1000/D
3 × 25 7/2.14 1.2 0.8 1.6 20.5 26.0 0.005 1244 1000/D
3 × 35 19/1.53 1.2 1.0 1.6 22.0 29.0 0.0044 1657 1000/D

* Dimensions and specifications may be changed without prior notice.

3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10

CONTACT

Tel: +86 (0755) 61145028
Fax: +86 (0755) 61137976
Email: cttcable@hotmail.com
Headoffice: Chengtiantai Industrial Park, Guangming New District, Shen zhen P. R. China 518106

PACKAGING

  • Coil in foil (100m)
  • Coil in cardboard (100m) as required
  • spool
 3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10

Shenzhen chengtiantai cable operates certified management systems compliant with:

Certificate Information
3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10

ISO 9001:2008

Quality management systems
 – ​Certificat ISO 9001:2008
– ​Shenzhen chengtiantai cable industry development Co.Ltd. ;
– ​Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
– ​Valid until 13 January 2019
3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10
ISO 14001:2004
Environmental management systems

– ​Certificat ISO 14001:2004

– ​Shenzhen chengtiantai cable industry development Co.Ltd. ;

– ​Certified through Guangdong quality Testing CTC Certification Co.Ltd.;

– ​Valid until 13 January 2019
3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10
OHSAS 18001:2007
Assessment specification for occupational health & safety management systemsenvironmental management systems
 – ​Certificat OHSAS 18001:2007
– ​Shenzhen chengtiantai cable industry development Co.Ltd. ;
– ​Certified through Guangdong quality Testing CTC Certification Co.Ltd.;
– ​Valid until 13 January 2019

CUSTOMER SERVICES: 3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10

We manufactures a comprehensive array of wires and cables to meet diverse market needs.

We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

Head office: chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106

Shenzhen chengtiantai cable operates certified management systems compliant with: ISO 9001:2008 / ISO 14001:200]4 / OHSAS 18001:2007

● Cable production started 1983
● 35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

● 100,000 m2 Production area
● 350 Will-trained employees

● 8 workshop
● 1 R&D Center

Because we continuously improve our products, CTT Cable reserves the right to change specifications and availability without prior notice.
