430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System
430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System
430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System
430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System
430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System
430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System
430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System
430 KW Low Rpm Diesel Generator 1500 / 1800RPM Electronic Control System
Specifications
Brand Name :
BOSSPOWER
Model Number :
BS-D538
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets per Month
Delivery Time :
About 30 days after receiving deposit or original L/C.But if your order with some special design, then the delivery time is longer.
Packaging Details :
Packed in Plywood Cases or Wooden Cases or Foam, etc.
Engine :
DEUTZ
Alternator :
Stamford
Output Type :
AC Single/Three Phase
Cooling Method :
Water Cooling
Power :
430kw/538kVA
Frequency :
50HZ/60HZ
Voltage :
220V/230V/400V/440V/480V
Control panel :
Smartgen,Deepsea...
Speed :
1500/1800RPM
Starting type :
Electric start
Color :
Red,Yellow,Green,As per request
ATS :
Optional
Conditions of Use :
Land Use
Description

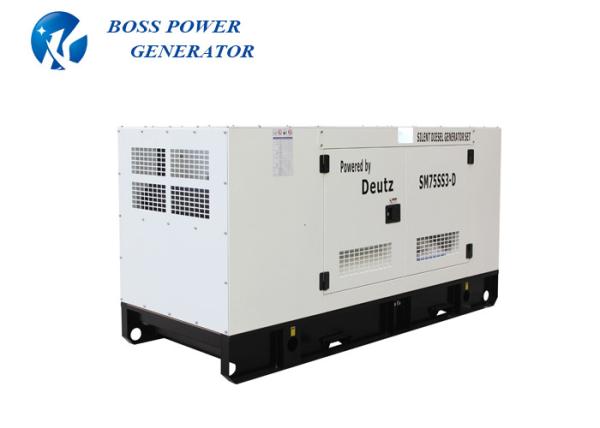

430kw Deutz Water Cooled Rainproof Soundproof Diesel Engine Generator

PRODUCT DESCRIPTION
Frequency: 50HZ;Rotating speed: 1500Rpm
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Original Stamford
BS-D60 48 60 86.6 BF4M2012 UCI224E
BS-D75 60 75 1082 BF4M2012C UCI224F
BS-D100 80 100 144.3 BF4M1013EC UCI274C
BS-D125 100 125 180.4 BF4M1013FC UCI274D
BS-D160 128 160 230.9 BF6M1013EC UCI274F
BS-D188 150 155 270.6 BF6M1013FCG2 UCI274G
BS-D200 160 200 288.6 BF6M1013FCG3 UCI274H
BS-D230 184 230 331.9 BF6M1015-LA GA UCD274J
BS-D250 200 250 360.8 BF6M1015C-LA G1A UCD274K
BS-D300 240 300 433 BF6M1015C-LA G2A HCI444D
BS-D325 260 325 469 BF6M1015C-LA G3A HCI444ES
BS-D350 280 350 505 BF6M1015C-LA G4 HCI444E
BS-D375 300 375 541.2 BF6M1015CP-LA G HCI444FS
BS-D438 350 438 631.4 BF8M1015C-LA G1A HCI544C
BS-D450 360 450 649.5 BF8M1015C-LA G2 HCI544C
BS-D463 370 463 667.5 BF8M1015CP-LA G1A HCI544C
BS-D500 400 500 721.7 BF8M1015CP-LA G2 HCI544C
BS-D550 440 550 793.8 BF8M1015CP-LA G4 HCI544D
BS-D575 460 575 829.9 BF8M1015CP-LA G5 HCI544E
Frequency: 60HZ;Rotating speed: 1800Rpm
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Stamford Type
BS-D70 56 70 101 BF4M2012 UCI224E
BS-D88 70 87.5 126.3 BF4M2012C UCI224F
BS-D114 91 114 164 BF4M1013EC UCI274C
BS-D130 104 130 187.6 BF4M1013FC UCI274D
BS-D168 134 168 241.7 BF6M1013EC UCI274E
BS-D190 152 190 274.2 BF6M1013FCG2 UCI274F
BS-D213 170 213 306.7 BF6M1013FCG3 UCI274G
BS-D250 200 250 360.8 BF6M1015-LA GA UCI274J
BS-D275 220 275 396.9 BF6M1015C-LA G1A UCI274J
BS-D313 250 313 451 BF6M1015C-LA G2A HCI444D
BS-D350 280 350 505 BF6M1015C-LA G3A HCI444D
BS-D456 365 456 658.5 BF6M1015C-LA G4 HCI444F
BS-D488 390 488 703.6 BF6M1015CP-LA G HCI544C

More specific parameters to choose.

Genset Model BS-D538
Prime Power (kw/kva) 430 / 538 Standby Power(kw/kva) 473 / 592
Voltage (v) 400 Rated Speed (rpm) 1500
Frequency (Hz) 50 Rated Current (A) 776
Connection: 3 phase Power Factor: 0.8
Engine Model: BF8M1015CP-LA G4 Alternator Model: HCI544D
Net Weight (kgs)-Silent 5500 Dimensions (mm)-Silent 5000x1800x2450
Engine Parameter:
Manufacturer/Model:
Engine type:
Control System:
Displacement:
Bore x Stroke
Compression Ratio:
Power:
Effective pressure:
MAX. exhaust gas temperature:
Inlet air (25 /1000mbar):
Fuel Consumption:
Max. noise value at 1m :
Battery voltage(V):
Starter rated power (KW):
Generator voltage(V):
Max. exhaust back pressure (mbar):
Max. allowable air inlet resistance (mbar):
Lowest ambient temperature of
cold starting without assistant:
Lowest ambient temperature of cold
starting with flame preheat plug:		 DEUTZ BF8M1015CP-LA G4
4-Cycle,8-Cylinder,V-form,Turbocharged
mechanical /electronic
15.874 L
132 x 145 mm
16.5 : 1
530 KW
27.2 bar
630ºC
2206 m3/h
196g/kw·h
≤99 dBA
24
9
28.5
50
50

-17ºC

-32ºC
Fuel System
Cylinder ignition sequence:
Idle speed (rpm):
Low-pressure pump oil load capacity (L/h):
Fuel filter element type:
No. of the fuel filter element		 1-8-4-5-7-3-6-2
650
190
Disposable filter
2
Lube System
Oil Consumption (as % of fuel consumption):
oil temperature 90ºC
Min. oil pressure at 1500rpm:
Min. oil pressure at 600rpm:
Oil temperature of normal operation:
Initial oil filling:
Oil filter element type:
No. of oil filter element:		 <0.3% of fuel consumption

≥3 bar
≥1 bar
<130 ºC
48
Disposable filter
1
Cooling system
Engine coolant capacity( L):
Water-pump flow (L/min):
Water-pump pressure (bar):
Allowable pressure loss of cooling system (include pipeline) (bar):
Heat carry off by coolant (kW):
In&Outlet coolant size (mm):
Temperature of switch on two thermostats respectively (ºC):
Temperature of switch on two thermostats totally (ºC):
Max. allowable operating temperature (ºC):
Temperature difference between inlet and outlet coolant (ºC):
Fan :
Fan connection :
Fan diameter (mm):
Air volume of fan(m3/s):
Fan power consumption (kW):
Fan transmission ratio 		21
347
1.25

≤0.35
