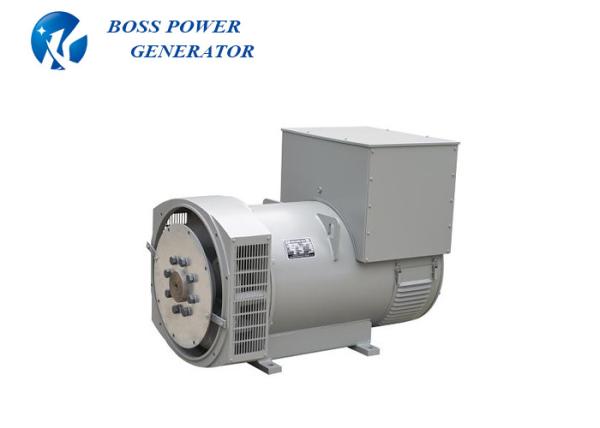

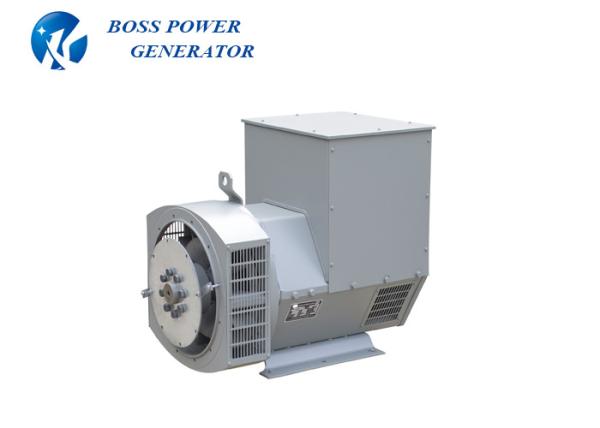

IEC Standard Brushless Alternator 100% Copper Winding Stamford Type
IEC Standard Brushless Alternator 100% Copper Winding Stamford Type
IEC Standard Brushless Alternator 100% Copper Winding Stamford Type
IEC Standard Brushless Alternator 100% Copper Winding Stamford Type
IEC Standard Brushless Alternator 100% Copper Winding Stamford Type
IEC Standard Brushless Alternator 100% Copper Winding Stamford Type
IEC Standard Brushless Alternator 100% Copper Winding Stamford Type
IEC Standard Brushless Alternator 100% Copper Winding Stamford Type
Specifications
Brand Name :
BOSS or OEM
Model Number :
BS series
Certification :
CE, ISO
Place of Origin :
China
MOQ :
5
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 units Per Month
Delivery Time :
20-25 working days
Packaging Details :
Seaworthy Plywood Box
Model :
BS224D
Rated voltage :
110-480V
Speed :
1500/1800RPM
Frequency :
50Hz/60Hz
Warranty :
12 months or 1000 hours
Color :
Grey
Insulation class :
H
Bearing :
Single or Double
Power :
50kva / 40kw
Description

IEC Standard 100% Copper Winding 50kva Stamford Type Brushless Alternator

Stamford Technology Brushelss Alternator

1.100% Stamford Technology Design

2. 100% pure copper wire, 100% prime output

3. Self-excited, IP23, Insulation Class

4. AVR SX460, SX440, MX321

5.Standard SAE meet with all engines worldwide

6. Complied with IEC 60034-1 certerion

Product Introduction

Features

1. Easy to be connected with power network or other ac generator. Standard 2/3pitch windings avoid excessive neutral current.
2. Dynamically balanced rotors, with single or two sealed ball bearings.
3. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
4. Wide range of flange adapter and single bearing coupling disc.
5. Built to conform to all leading industrial standards.

Operating environment

Under the following conditions, generator can be at rated load operation.
1. The altitude does not exceed 1000m.
2. Cooling air temperature 258~313K(-15°C~40°C)
3.Relative humidity does not exceed 90%.

Insulation


The insulation system is class H. All wound components are impregnated with materials and processes designed specifically to provide protection against the harsh environments encountered in generator applications. Resin based materials are selected and developed to provide the high build required for static windings and the high mechanical strength required for rotating components.

PRODUCT DESCRIPTION
Model PRIME OUTPUT(1500RPM/50HZ)400V PRIME OUTPUT(1800RPM/60HZ)440V
KW KVA A KW KVA A
BC164A 6.5 8.1 11.7 8.2 10.2 14.8
BC164B 8.8 11 15.8 11 13.8 19.88
BC164C 10.8 13.5 19.4 13.5 16.9 24.38
BC164D 12.8 16 23 16 20 28.88
BC184E 18 22.5 32.4 23 28.8 41.5
BC184F 22 27.5 39.6 27.5 34.4 49.68
BC184G 25 31.3 45 30 37.5 548
BC184H 30 37.5 54 37.5 46.9 67.68
BC184J 34 42.5 61.3 40 50 728
UC224C 34 42.5 61.3 42 52.5 75.78
UC224D 40 50 72 50 62.5 90.28
UC224E 48 60 86.6 56 70 1018
UC224F 58 72.5 104.6 70 87.5 126.3
UC224G 68 85 122.6 78 97.5 140.7
UC274C 80 100 144.3 94 117.5 169.6
UC274D 96 120 173.2 110 137.5 198.4
UC274E 112 140 202 134 167.5 241.7
UC274F 128 160 230.9 152 190 274.2
UC274G 145.6 182 262.7 174.8 218.5 315.3
UC274H 160 200 288.6 196 245 353.6
UC274J 184 230 331.9 224.8 281 405.6
UC274K 200 250 360.8 239.2 299 431.5
HC314C 200 250 360.8 240 300 433
HC314D 240 300 433 288 360 519.6
HC314ES 260 325 469 315.2 394 568.7
HC314E 280 350 505 336 420 606.2
HC314FS 304 380 548.4 365 456 658.5
HC314F 320 400 577.3 384 480 692.8
HC354C 360 450 649.5 440 550 793.8
HC354D 400 500 721.7 475.2 594 857.4
HC354ES 480 600 866 570.4 713 1029
HC354E 480 600 866 570.4 713 1029
HC354FS 536 670 967 580 725 1046.4
HC354F 536 670 967 620 775 1118.6
HC404B 600 750 1082.5 684 855 1234
HC404C 640
