50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe
50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe
50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe
50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe
50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe
50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe
Specifications
Brand Name :
BOSS or OEM
Model Number :
BS-IZ50
Certification :
CE, ISO, IEC
Place of Origin :
China
MOQ :
1 units
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 units per month
Delivery Time :
20-30 days
Packaging Details :
Plywood Box or Plastic File and Foam
Frequency :
50Hz or 60Hz
Rated power :
19-106kva
Engine :
ISUZU
Alternator :
Stamford , Leroy Somer , Meccalte Alternator
Controller :
Deepsea , ComAp
Description

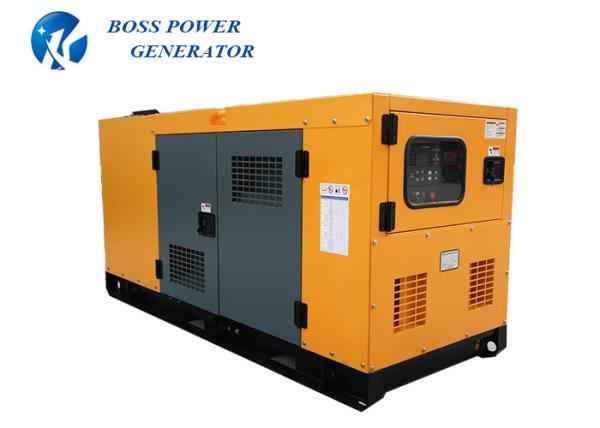

50Hz 60Hz ISO IEC approved Open Silent 40kw 50kva ISUZU Diesel Generator
Product Description:

Frequency: 50HZ;Rotating speed: 1500Rpm;

Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Original Stamford
BS-IZ19 15 19 27 4JB1 PI144D
BS-IZ25 20 25 36 4JB1 PI144E
BS-IZ30 24 30 43.3 4JB1T PI144G
BS-IZ38 30 38 54 4JB1TT PI144H
BS-IZ50 40 50 72 4BD1-Z UCI224D
BS-IZ63 50 62.3 90 4BG1-Z UCI224E
BS-IZ94 75 94 135 6BG1-Z1 UCI274C
BS-IZ106 85 106 153 6BG1-ZL1 UCI274D
Frequency: 60HZ;Rotating speed: 1800Rpm;
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Original Stamford
BS-IZ25 20 25 36 4JB1 PI144D
BS-IZ30 24 30 43.3 4JB1 PI144E
BS-IZ38 30 38 54 4JB1T PI144G
BS-IZ45 36 45 65 4JB1TT PI144J
BS-IZ56 45 56.3 81 4BD1-Z UCI224D
BS-IZ69 55 68.8 99 4BG1-Z UCI224E
BS-IZ100 80 100 144 6BG1-Z1 UCI224G
BS-IZ125 100 125 180 6BG1-ZL1 UCI274C

Generator Model ................................ISUZU generator series

Type of generator...............................Open type or silent type

Frequency/Speed................................50Hz/1500rpm, 60Hz/1800rpm

Voltage..............................................110/220,220/380,230/400

240/415, 254/440V

Rated Power.......................................19Kva-106Kva

Standby Power...................................20Kva-110Kva

Phase................................................3 Phase or 1 Phase

Fuel Tank Capacity..............................8-12 hours fuel tank

Sound Level.......................................63dB to 85dB at 7 meter

Alternator..........................................Meccalte, Stamford, Leroy Somer,

​​​50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe
50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe

50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe

50KVA 40KW Genset Diesel Engine Driven Generator Open Type Design Safe

FAQ

Q : Do you offer OEM service?
A : Yes

Q : What is the difference between Prime power and Standby power?
A : Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed .
Standby power is the limit value of maximum output for emergency use . Overloading is prohibited


Q : What about the warranty
A : Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date .During the

guarantee period ,our company will provide the free easy damaged spare part for problems caused by our

quality of production or raw material except the damageable spare parts of diesel engine caused by

customer's incorrect man made operation . After expiration , our company provides cost parts maintenance

for gen-set.
