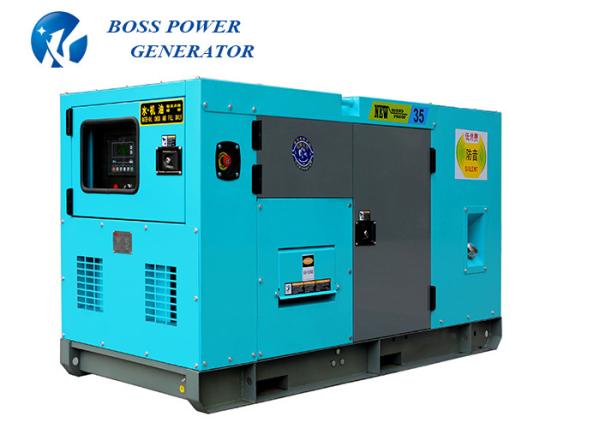

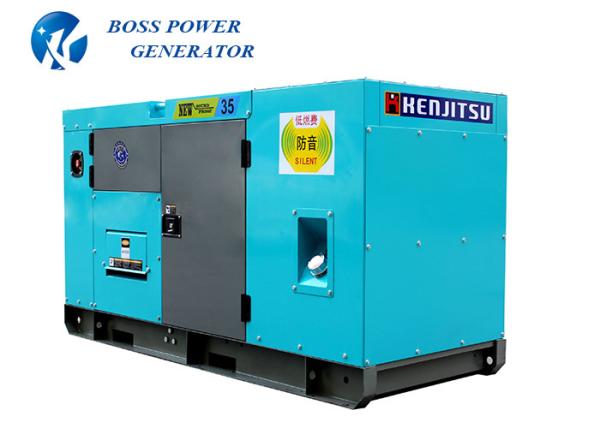

Isuzu 4jb1 Engine Diesel Electrical Generator 24kw Single Phase 60Hz

ISUZU Engine :
The ISUZU series diesel engines , whose cylinder-bore diameter is 93 milimeter , and the displacement is
small , so the fuel consumption could get a high point and the fuesl consumption could reach 213g/kw.h
Based on the technology indraught , assimilation and incorporation from ISUZU , the AVL company
improved its design more over .
The volume of the engine is small , and its structure is compact .
The thin-wall chrome-plated cylinder barrel , whose wearability are pretty good , it also convenient for
repair and replace.

Products Features

Rated output : 15 -75kW

Rated voltage : 400 / 230V, 380 / 220, 220 / 110, etc.

Rated frequency : 50 / 60Hz

Power factor : 0.8

Engine :
Engine brand : Cummins or Deutz or Perkins or other engine
Cooling method : closed water cooling or air force cooled
Starting method : electric start
Rated speed : 1500 / 1800rpm
Noise level : Silent type ( 75dB dB @ 7 meter away )

Alternator :
Brand : Stamford or Leroysomer or our BOSS series brushless
Rated voltage : 400 / 230V, 380 / 220, 220 / 110, etc
Rated Frequency : 50 / 60Hz
Power factor : 1.0
Rated speed : 1500rpm / 1800rpm
Voltage regulation : AVR automatic
1.0% voltage regulation (max.) in static conditions
Protection class : IP 22 or IP23

Soundproof (Silent ) type

1 . Excellent ventilation

2 . Oil tank mounted on base frame for 12 Hours working

3 . Highly Corrosion Resistant construction

4 . Excellent Access for Maintenance

5 . Security and Safety

6 . 1m<100 dB (open type) <80dB (soudproof)<70dB (silent type)<65dB (super silent)

Q : What is your payment term ?
A : 30% T/T in advance , the rest payment before shipment . Or irrevocable L/C .
Q : What is your MOQ ?
A : Above 1pc

Q : Does your generator have global warranty ?

A : Yes . Global warranty service is available depending on the engines and alternators you choose .

Q : What is your lead time ?
A : About 30 days after receiving deposit or original L/C . But if your order with some special design ,
then the delivery time is longer .
Q : What certificates do you have ?
A : We have CE , ISO. And we can apply for specific certificate for different country such as SONCAP
for Nigeria , CIQ for Egypt , SASO for Saudi Arabia , etc
Q : Which port do you often use when export ?
A : Fuzhou Port , or as customer request .
Q : Do you offer OEM service ?
A : Yes
