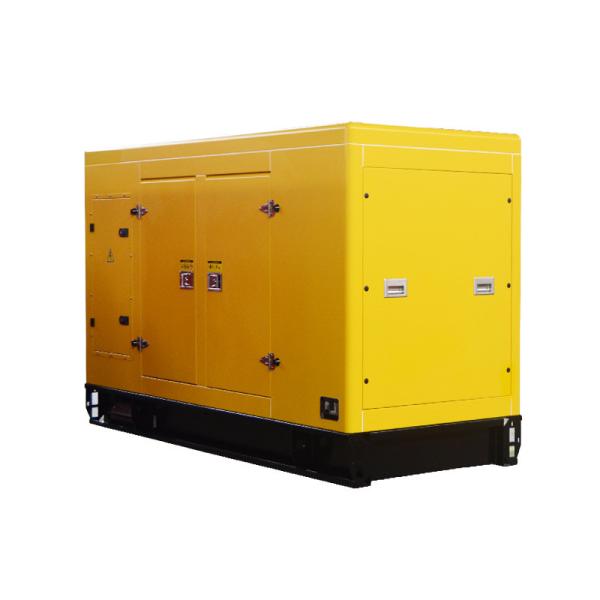

Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3
Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3
Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3
Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3
Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3
Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3
Specifications
Brand Name :
Ai Power
Model Number :
A425
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T,
Supply Ability :
200 units per month
Delivery Time :
30 to 35 days
Packaging Details :
Foam & plastic
Rated Speed :
1500rpm/1800rpm
Rated voltage :
230V-480V
Alternator Brand :
Leroysomer, Meccalte, Stamford, Marathon
Options :
Silent canopy/trailer/ATS/Daily Fuel Tank
Rated current :
400A
Phase :
Single/Three Phase
Control panel :
Smartgen, Deepsea, ComAp
Insulation Class :
H
Description

Cummins Silent Power Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3

Ai power USA Cummins generator set adopts USA Cummins engine as the power source. it’s a global power leader who is devoted to the engine R&D and manufacturer since 1919 in Columbus, now it has become the largest engine manufacturer in the world providing more than 160 countries sales and aftersales service. Ai Power Cummins series generator has adopted Cummins engine include 4B, 6B, 6C, 6L, NTA, MTA, KTA series etc.

Cummins Engine Specifications:

Engine manufacturer Dongfeng Cummins Engine Co. Ltd
Engine brand Cummins
Engine model 6ZTAA13-G3
Engine speed (rpm) 1500
Engine output(kWm)
Standby Power 340
Prime Power 380
Continuous Power 296
No. of Cylinder 6
Aspiration Turbocharged and Charge Air Cooled
Bore * Stroke (mm) 130*163
Displacment (litre) 13
Compression Ratio 17:1
Engine Idle Speed (rpm) 700-900
FUEL SYSTEM
Type Injection System BYC P7100/GAC
Fuel Consumption (litre/hour)
100% prime power 76.5
75% prime power 56.5
50% prime power 38
25% prime power 20.9
EXHAUST SYSTEM
Maximum Back Pressure (kPa) 10.1
Exhaust Gas Temperature (standby/prime power) (°C) 580/510
Exhaust Gas Flow(standby/prime power) (litre/sec.) 547/480
AIR INDUCTION SYSTEM
Maximum Intake Air Restriction (kPa)
with Dirty Filter Element 6.2
with Clean Filter Element 3.7
Intake Air Flow (standby/prime power) (litre/sec.) 191/183
LUBRICATION SYSTEM
Oil Pressure (kPa)
Idle Speed 103
Governed Speed 276 - 414
Maximum Oil Temperature (°C) 121
Min. required Lube system capacity-sump plus filters (liter) 23.8
COOLING SYSTEM
Coolant Capacity — Engine Only (liter) 12.3
Standard Thermostat Modulating Range (°C) 82-93
Maxi. Top Tank Temp. for Standby/Prime Power (°C) 110/104
ELECTRICAL SYSTEM
Cranking Motor (Heavy Duty, Positive Engagement) (volt) 12 24
Battery Charging System, Negative Ground (ampere) 63 40
Minimum Recommended Battery Capacity
Cold Soak @ -18 to 0-C (0°F CCA) TBD TBD

Product Details

Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3

Open Type.

● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.

Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3Silent Power Cummins Diesel Generator Soundproof 310KW 388KVA 6ZTAA13-G3

FAQ

1. What is your warranty period?

A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.

2. Can you accept OEM?

A. Yes, we can accept OEM.

3. What’s your payment term?

A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.

4. What’s your delivery time?

A: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
