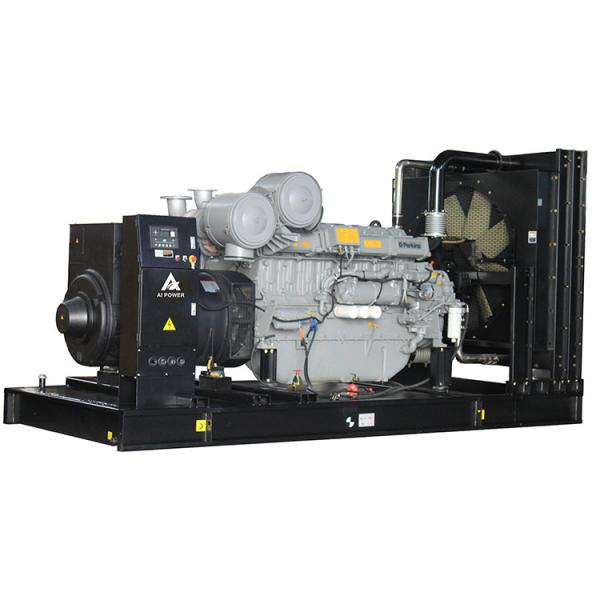

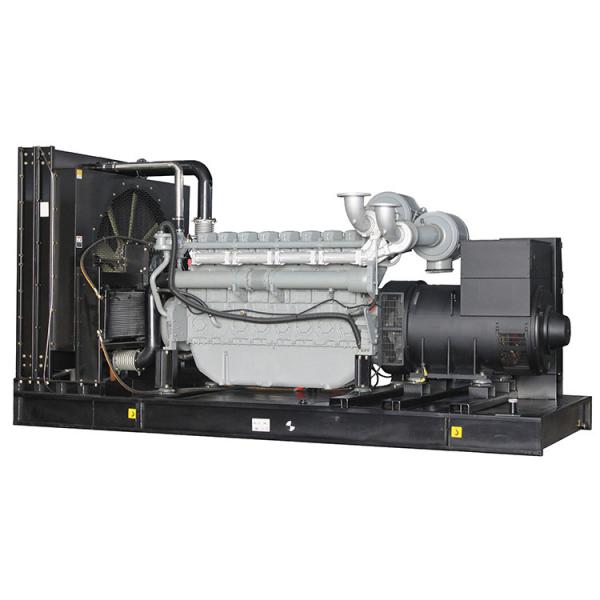

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator
120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator
120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator
120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator
120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator
120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator
Specifications
Brand Name :
Ai Power
Model Number :
AP165
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
30 to 35 days
Packaging Details :
Foam & plastic
Engine :
Perkins
Alternator :
Stamford/Marathon/Meccatle/Leroy-somer
Frequency :
50 Hz/ 60 Hz
Control panel :
Smartgen, Deepsea, ComAp
Rated current :
216A
Protection class :
IP23
Options :
Silent canopy/trailer/ATS
Warranty :
1 year
Description

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

Product characteristics:

1. Our cooperate with famous diesel engine -Powered by famous Perkins engines.
2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Meccalte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen, ComAp,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

Generator Specifications:

GENERAL ENGINE DATA
Engine manufacture Perkins Engines Company Limited
Engine brand Perkins
Engine model 1106A-70TAG2
Engine speed (rpm) 1500
Prime power Standby power
Gross engine power (kWb) 136 154
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) 120 132
Cylinders 6-cylinder, vertical in line
Cycle 4 stroke
Induction system Turbocharged, air charge cooled
ICombustion system Direcct injection
Compression ratio 16.1:1
Bore * Stroke (mm) 105*135
Cubic capacity (Litre) 7.01
FUEL SYSTEM
Injector Mechanical
Fuel pump DP210G
Fuel Consumption (litre/hour)
110% 36.1
100% 33.4
75% 24.7
50% 16.4
25% 9.1
COOLING SYSTEM
Total system capacity(litre) 21
Engine capacity(litre) 9.5
Max. top tank temperature (°C) 110
Thermostat operating range (°C) 82-93
Shutdown switch setting(°C) 118
LUBRICATION SYSTEM
Max. total system oil capacity(litre) 16.5
Min. oil capacity in sump(litre) 12.4
Max. oil capacity in sump(litre) 14.9
Oil temperature (in sump) normal continuous operation(°C) 125
Pressure at max. speed(kPa) 340
Oil consumption at full load(% of fuel) <0.1
INDUCTION SYSTEM
Maximum air intake restriction of engine (kPa)
Clean filter 2
Dirty filter 3
Combustion air flow(standby/prime power) (m3/min) 10.67/10.02
EXHAUST SYSTEM
Back pressure for total system (kPa) 6
Exhaust gas temp. after turbo(standby/prime power)(°C) 484
Exhaust gas flow (standby/prime power) (m3/min) 25.53/23.78
ELECTRICAL SYSTEM
Alternator voltage (volts) 12
Alternator output (amps) 85
Stater motor type (volts) 12
Starter motor power (kw) 4.2

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

120KW 150KVA UK Diesel Power Generator With Perkins Electric Diesel Generator

Detection and protection function

  • Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt, Low water level,Three failed to start alarm

  • Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

Optional features

  • RS485 (DSE7320)RS485(DSE7320)

  • Fuel level display and low-alarm

  • Water level low-alarm

  • Water Pre- heating in low temperature

  • ATS

  • Automatic parallel (DSE6120 / DSE7320)

  • Other self-definition functions

  • big power 1mva silenced diesel generator set price

FAQ

1. What is your warranty period?

A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.

2. Can you accept OEM?

A. Yes, we can accept OEM.

3. What’s your payment term?

A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.

4. What’s your delivery time?

A:Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
