Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator
Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator
Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator
Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator
Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator
Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator
Specifications
Brand Name :
Ai Power
Model Number :
AP825
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
30 to 35 days
Packaging Details :
Foam & plastic
Engine :
Perkins
Alternator :
Stamford/Marathon/Meccatle/Leroy-somer
Frequency :
50 Hz/ 60 Hz
Control panel :
Smartgen, Deepsea, ComAp
Rated current :
1080A
Protection class :
IP23
Options :
Silent canopy/trailer/ATS
Warranty :
1 year
Description

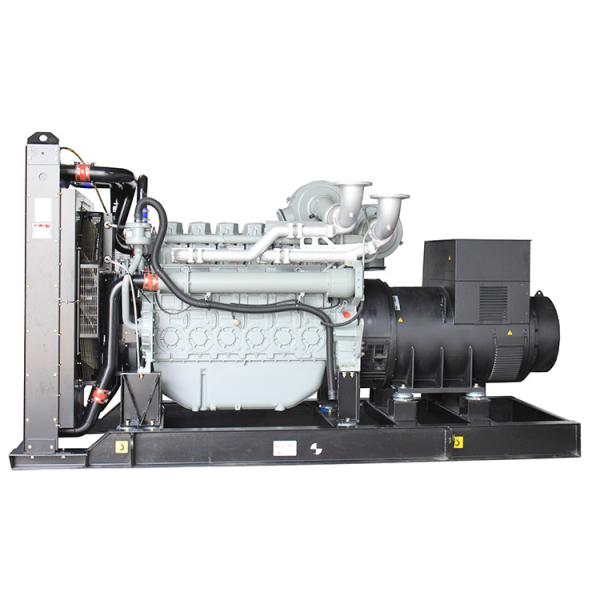

Heavy Duty Engine 600KW Diesel Generator 750KVA Power Generator With Perkins Alternator

Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator

AI power UK Perkins series generator set adopts UK Perkins engine as the power source. It’s one of the world’s leading diesel engine manufacturers since 1932, produced nearly 400,000 units for one year and quickly occupied the world market for the full specification, good structure, reliable performance, easy maintenance, low exhaust and long period maintenance. Perkins service network is in more than 180 countries and regions.

Product characteristics:

1. Our cooperate with famous diesel engine -Powered by famous Perkins engines.
2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Meccalte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen, ComAp,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

Generator Specifications:

GENERAL ENGINE DATA
Engine manufacture Perkins Engines Company Limited
Engine brand Perkins
Engine model 4006-23TAG2A
Engine speed (rpm) 1500
Baseload power Prime power Standby power
Gross engine power (kWb) 531 658 721
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) 476 597 656
Cylinders 6-cylinder, vertical in line
Cycle 4 stroke
Induction system Turbocharged
Combustion system Direct injection
Compression ratio 13.6:1
Bore * Stroke (mm) 160 * 190
Cubic capacity (Litre) 22.921
FUEL SYSTEM
Injection system Direct
Governor type electronic
Fuel Consumption (litre/hour)
Standby 178
Prime 163
Baseload 133
75% output power 124
50% output power 84
COOLING SYSTEM
Max. top temperature(standby) (°C) 98
Thermostat operating range (°C) 71-85
Shutdown switch setting (°C) 101
LUBRICATION SYSTEM
Maximum sump capacity (liter) 113.4
Minimum sump capacity (liter) 90.7
Oil pressure at rated speed (kPa) 300
Oil pressure Minimum @80°C (kPa) 240
INDUCTION SYSTEM
Maximum air intake restriction of engine (kPa)
Clean filter 1.25
Dirty filter 3.7
Combustion air flow(standby/prime power) (m3/min) 72 / 65
EXHAUST SYSTEM
Back pressure for total system (kPa) 6
Exhaust gas temp. after turbo(standby/prime power)(°C) 430
Exhaust gas flow (standby/prime power) (m3/min 180
ELECTRICAL SYSTEM
Alternator voltage (volts) 24
Alternator output (amps) 55
Stater motor type (volts) 24
Starter motor power (kw) 7.5


Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator

Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator

Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator

Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator

Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator

Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator

Heavy Duty Engine 600KW Diesel Generator 750KVA With Perkins Alternator

Detection and protection function

  • Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt, Low water level,Three failed to start alarm

  • Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

Optional features

  • RS485 (DSE7320)RS485(DSE7320)

  • Fuel level display and low-alarm

  • Water level low-alarm

  • Water Pre- heating in low temperature

  • ATS

  • Automatic parallel (DSE6120 / DSE7320)

  • Other self-definition functions

  • big power 1mva silenced diesel generator set price

FAQ

1. Can you accept small order?

A: Yes, we can accept trial order, it is the starting of business. But according to different product the price may be higher as normal quantity.

2. What is your company product range?

A: We are a professional turbocharger supplier, OEM and ODM are welcome.

3. Do you inspect the product? How?

A: Yes, each step of production and finished products will be carried out inspection by QC before shipping.

4. What is your payment terms?

A: T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.

5. What about your factory production capacity?

A: 200pcs per month.

6.What kind of transactions you can accept.

A: We can accept FOB, CIF, CFR.
