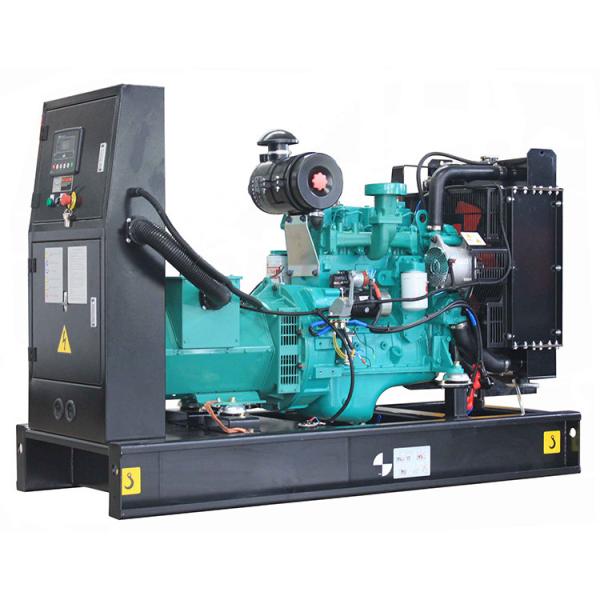

Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter
Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter
Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter
Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter
Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter
Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter
Specifications
Brand Name :
Ai Power
Model Number :
AC303
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
30 to 35 days
Packaging Details :
Foam & plastic
Engine :
Cummins
Alternator :
Stamford/Marathon/Meccatle/Leroy-somer
Frequency :
50 Hz/ 60 Hz
Control panel :
Smartgen, Deepsea, ComAp
Rated current :
440A
Protection class :
IP23
Options :
Silent canopy/trailer/ATS
Warranty :
1 year
Description

Safety Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter

Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter

Product characteristics:

1. Our cooperate with famous diesel engine -Powered by famous Cummins engines.
2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Meccalte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen, ComAp,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

Generator Specifications:

GENERAL ENGINE DATA
Engine manufacturer Chongqing Cummins Engine Co., Ltd.
Engine brand Cummins
Engine model NTA855-G1A
Engine speed (rpm) 1500
Engine output(kW)
Standby power rating 291
Prime power rating 264
Type 4-Cycle, In line, 6 Cylinder
Aspiration Turbocharged and aftercooled
Bore * Stroke (mm) 140 * 152
Displacment (litre) 14
Compression Ratio 14.5:1
FUEL SYSTEM
Type Injection System Direct Injection Cummins PT
Fuel Consumption (litre/hour)
100% output power 61.3
75% output power 46.1
50% output power 31.4
25% output power 17.5
EXHAUST SYSTEM
Maximum Back Pressure (kPa) 10
Exhaust Gas Temperature (overload/prime power) (°C) 498 / 484
Exhaust Gas Flow(overload/prime power) (liter/s) 936 / 826
AIR INDUCTION SYSTEM
Maximum Intake Air Restriction (in. H2O)
with Dirty Filter Element 25
with Clean Filter Element 15
Intake Air Flow (overload/prime power) (liter/s) 379 / 353
COOLING SYSTEM
Coolant Capacity — Engine Only (liter) 20.8
Standard Thermostat Modulating Range 82-94
Maximum Coolant Temperature (°C) 96
Maximum Coolant Pressure(kPa) 276
Maxi. Top Tank Temp. for Overload/Prime Power (°C) 104 / 100
LUBRICATION SYSTEM
Oil Pressure (kPa)
Idle Speed 103
Governed Speed 241-345
Maximum Oil Temperature (°C) 121
Total System Capacity (Including Bypass Filter) (liter) 38.6
ELECTRICAL SYSTEM
Cranking Motor (Heavy Duty, Positive Engagement) (volt) 24
Battery Charging System, Negative Ground (ampere) 35

Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter

Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter

Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter

Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter


Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter

Ai Power Company

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply. Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.

Diesel 220KW Atmospheric Power Engine With 275KVA DCEC Diesel Generator Fuel Filter

  • Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt, Low water level,Three failed to start alarm

  • Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

Optional features

  • RS485 (DSE7320)RS485(DSE7320)

  • Fuel level display and low-alarm

  • Water level low-alarm

  • Water Pre- heating in low temperature

  • ATS

  • Automatic parallel (DSE6120 / DSE7320)

  • Other self-definition functions

  • big power 1mva silenced diesel generator set price

FAQ

1. What is your warranty period?
A:Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of genset caused by incorrect man-made operation).

2. Does your generator have global warranty?
A:Yes. Gensets powered by USA famous engine, with UK famous engine, Volvo, Iveco have the global warranty service. And the alternators Stamford, Leroysomer, Meccalte, Marathon also have the global warranty service.

3. What is your payment terms?
A:T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.

4. Can the generators be customized?
A: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, industrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.

5. Can you use our logo?
A: Yes. For mass orders, we can use customer's logo instead of ours.
