Specifications
Brand Name :
Ai Power
Model Number :
A80
Certification :
CE, ISO,SONCAP
Place of Origin :
China
MOQ :
1 unit
Price :
USD8500 per unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
25 to 30 days
Packaging Details :
Foam & plastic
Product name :
Cummins 80kva generator
Engine :
USA Cummins
Rated voltage :
220/380V,230/400V, 240V/415V
Speed :
1500RPM
Output type :
AC Three Phase
Rated current :
160A
Protection class :
IP23
Warranty :
12 Months or 1000 Hours
Description
Product Description
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11

Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11

Genset output
Generator set model
Voltage
Hz
Phase
P.F.
Prime Power
Standby Power
(V)
KVA
KW
KVA
KW
A80
230/400
50
3
0.8
80
64
88
70
•220/380V, 240/415V, 254/440V is avaliable
•60Hz is avaliable
Engine model
1104A-44TG2
Engine speed (rpm)
1500
Prime power
Standby power
Gross engine power (kWb)
73
81
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
64
70
Cylinders
4-cylinder, vertical in line
Cycle
4 stroke
Induction system
Turbocharged, air-to-air charge cooled
Compression ratio
Direcct injection
Bore * Stroke (mm)
18.23:1
Cubic capacity (Litre)
105*127
Engine
GENERAL ENGINE DATA
Engine manufacturer
Dongfeng Cummins Engine Co. Ltd
Engine brand
Cummins
Engine model
4BTA3.9-G11
Engine speed (rpm)
1500
Engine output(kWm)
Standby Power
80
Prime Power
70
Continuous Power
TBD
No. of Cylinder
4
Aspiration
Turbochanger& Aftercooler
Bore * Stroke (mm)
102 * 120
Displacment (litre)
3.9
Compression Ratio
17.3:1
Engine Idle Speed (rpm)
950-1050
FUEL SYSTEM
Type Injection System
BYC PB Direct Injection
Fuel Consumption (litre/hour)
100% prime power
17.6
75% prime power
13.2
50% prime power
9.1
25% prime power
5.3
EXHAUST SYSTEM
Maximum Back Pressure (kPa)
10
Exhaust Gas Temperature (standby/prime power) (°C)
548/526
Exhaust Gas Flow(standby/prime power) (litre/sec.)
134/125
Alternator
Alternator manufacturer
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand
Leroysomer
Alternator model
TAL-A44-C
Control system
SHUNT
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
6
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)
----------------Cont.H-40°C
85/68
----------------Standby-27°C
93.5/74.8
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single
Products Show
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11

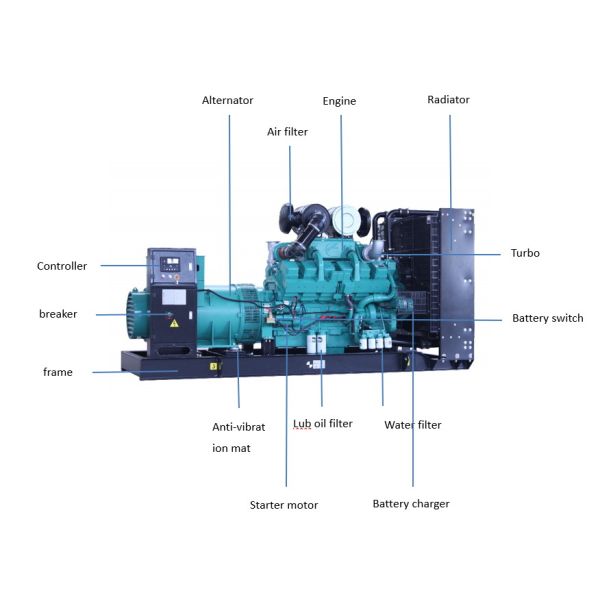

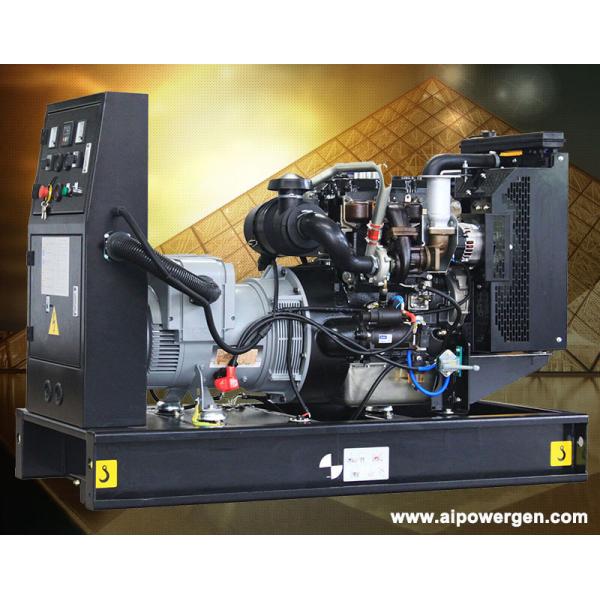

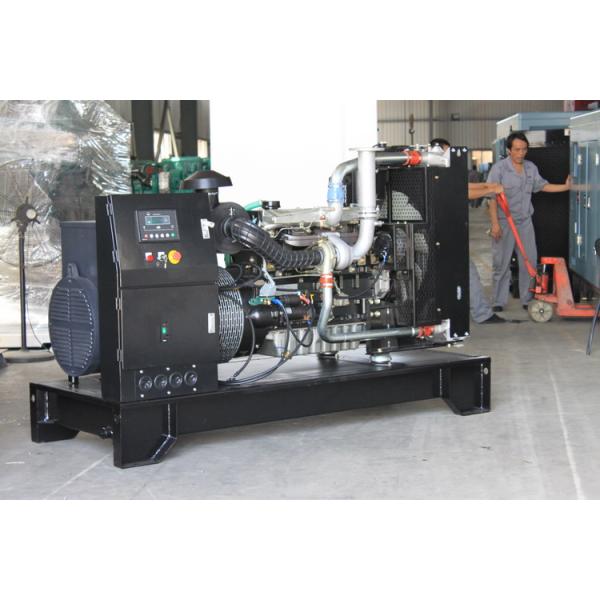

Open Diesel Generator:

1.Famous brand engine couple with high quality alternator

2.Large size cooling radiator

3.Heavy duty steel base frame
4.Strong anti-vibration mat
5.Standard free maintenance battery
6.AC alternator for battery charger
7. Heavy-duty air filter, oil filter, water filter
8.Famous brand controller and breaker
9.Optional fuel tank, silent canopy, ATS, synchronization panels.

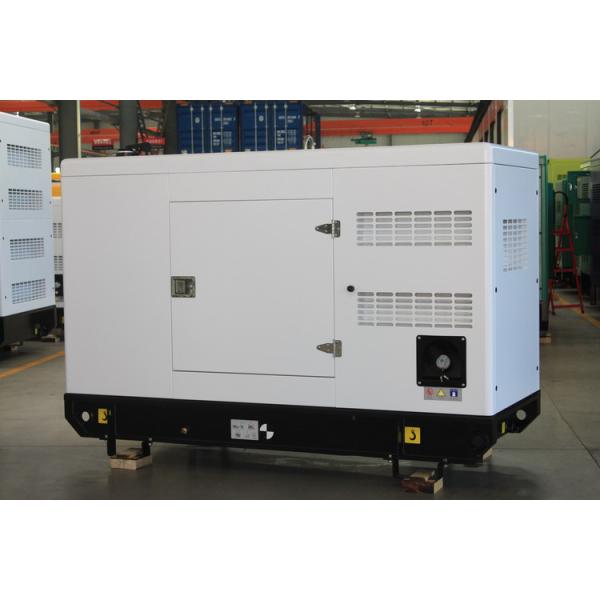

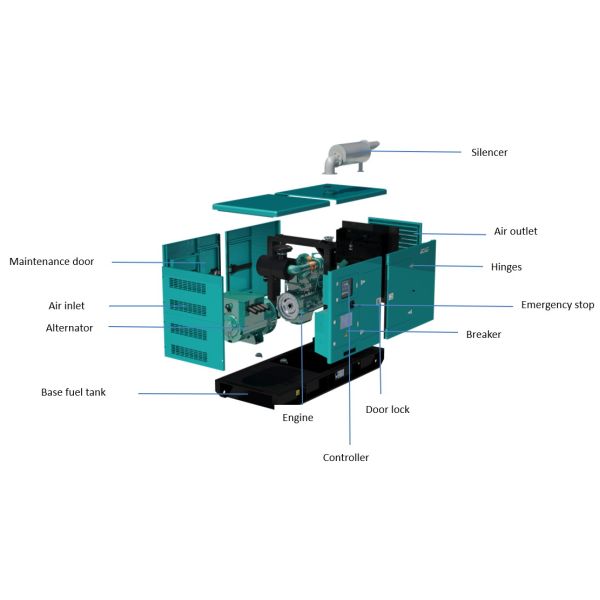

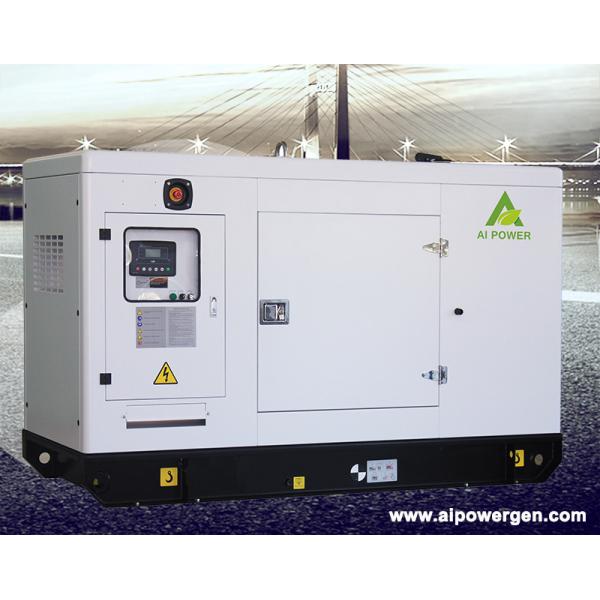

Silent Diesel Generator:

1. More than 2mm thick steel to make the canopy
2. High quality paint materials and strict powder paint
3. Impedance combined type silencer
4.Stainless steel door locks and hinges and 180° revolvable and disassemble door
5.High quality soundproof and insulation materials
6.Transparent viewing window
7. Lifting earis mounted in the base frame
8.Standard 20', 40' and 40HQ container canopy for option
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Ai Power Company
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11

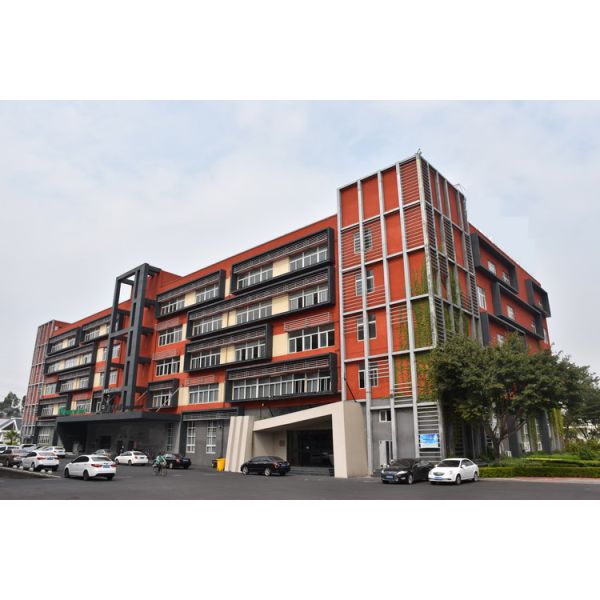

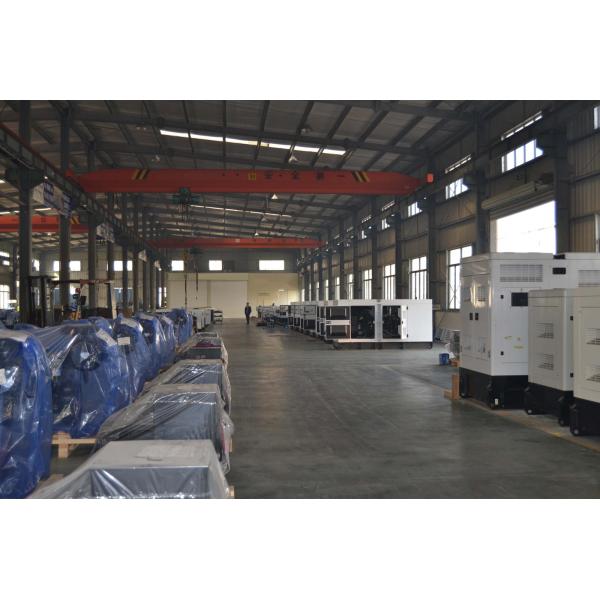

Company Profile

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.

Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, etc.

Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11

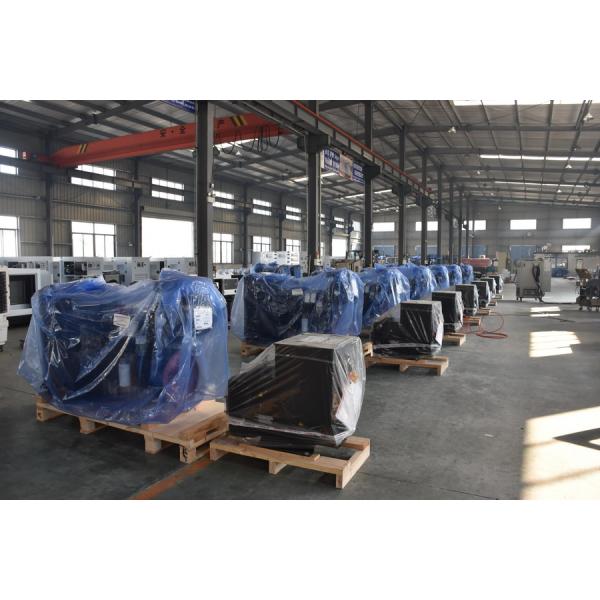

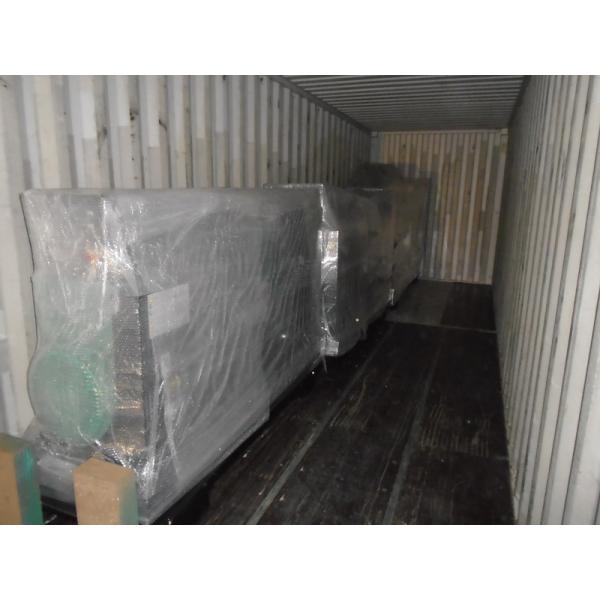

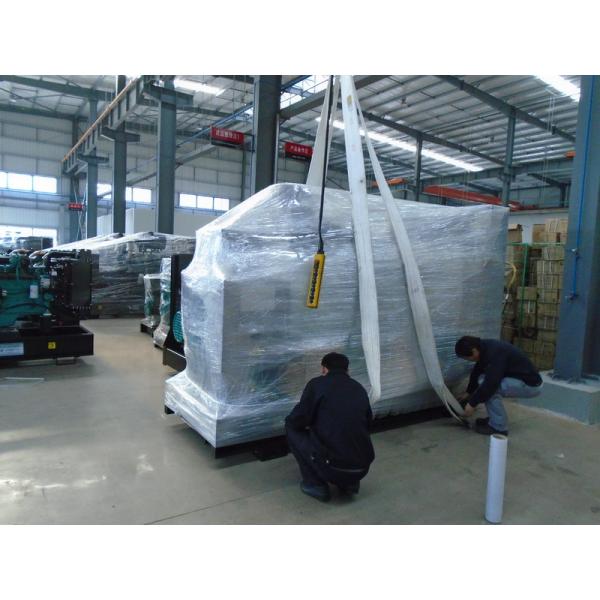

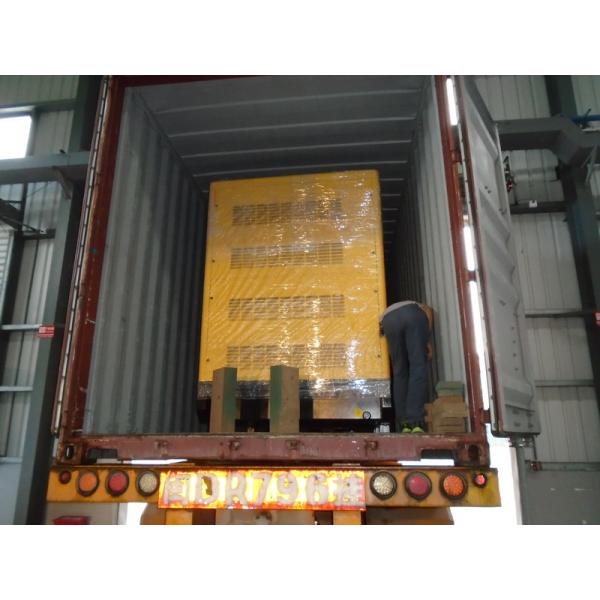

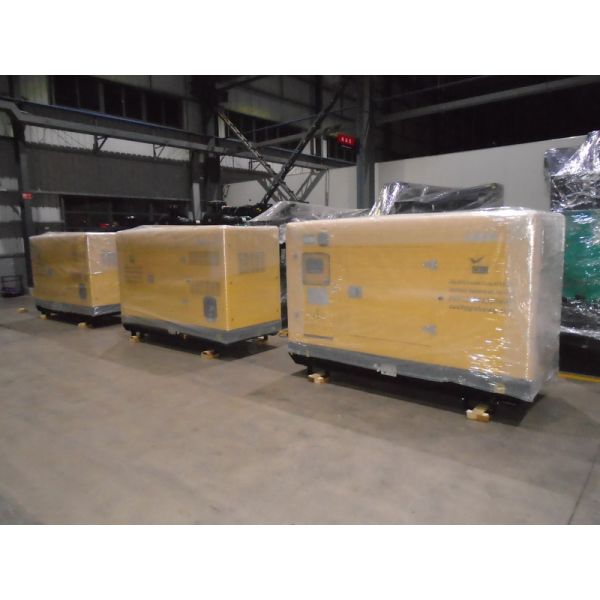

Packing & Delivery
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
Electrical Power Generator 80kva 64kw Diesel Generator With Cummins 4BTA3.9-G11
FAQ

1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?

Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?

Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
