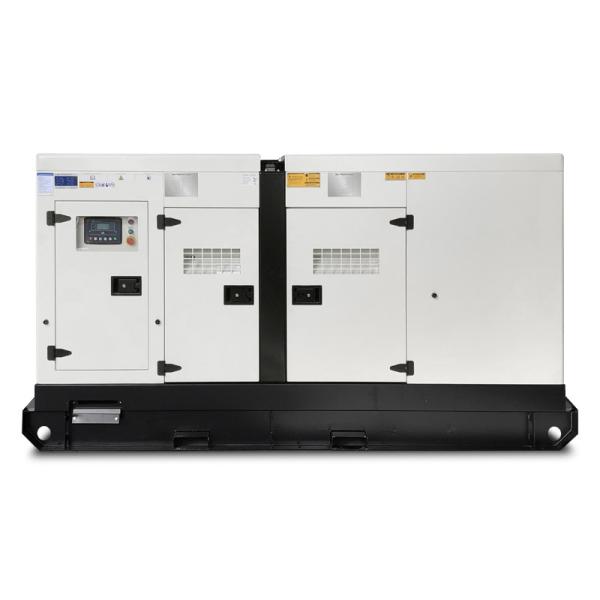

900kva 800kva Silent Perkins Diesel Power Generator 4006-23TAG3A
900kva 800kva Silent Perkins Diesel Power Generator 4006-23TAG3A
900kva 800kva Silent Perkins Diesel Power Generator 4006-23TAG3A
900kva 800kva Silent Perkins Diesel Power Generator 4006-23TAG3A
900kva 800kva Silent Perkins Diesel Power Generator 4006-23TAG3A
900kva 800kva Silent Perkins Diesel Power Generator 4006-23TAG3A
Specifications
Brand Name :
Ai Power 800KVA 640KW Generator Set
Model Number :
AP880
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 72000 to 77000 Per Unit Negotiable
Payment Terms :
L/C, T/T, MoneyGram,Western Union
Supply Ability :
300 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Or Plastic Film
perkens generator set :
4006-23TAG3A
Product Name :
Perkins Generator Set
Alternator Model :
TAL-A49-C
Diesel Genset Capacity :
1500L For 8hours
Control panel :
UK Deepsea 7320
Cylinder :
8L
Power Factor :
0.8
Excitation System :
Shunt
Description

Perkins Diesel Generator Reliable power 4006-23TAG3A Economic Power 800kva

AI power generation system, providing optimum performance, reliability, and versatility for stationery standby, prime power, and continuous duty applications. All generator sets are prototype tested, factory build, and production tested.

High quality, reliable and complete power unit

Compact design

Easy start and maintenance possibility

Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of control and safety shut down functions testing

Fully engineered with a wide range of options and accessories : Canopy, sound proof canopy and on-road trailer

Dimensions and Weight

Open Type
Dimensions (LxWxH) mm 4050 x 2000 x 2201
Dry Weight kg 5400
Sound Attenuated Type
Dimensions (LxWxH) mm 5806 x 2267 x 2554
Dry Weight kg 7550

Phase Rating, 50Hz, PF 0,8

Voltage Standby Rating (ESP) Prime Rating (PRP)
kVA kW kVA kW
400/230 900 720 810 648

Diesel Engine Specifications

Manufacturer Perkins
Model 4006-23TAG3A
Engine Power Output at rated rpm kWm 786
HP 1053.6
No. of Cylinders and Build 6 In Line
Engine Speed rpm 1500
Aspiration and Cooling Turbocharged
Total Displacement L 22.921
Bore and Stroke mm x mm 160x190
Compression Ratio 13.6:1
Governor Electronic
Fuel Consumption at full load L/hr 172
Fuel Tank Capacity Litre Open : 1100 / Canopy : 1450 / Container : 1000
Oil Capacity Litre 113.4
Coolant Capacity L 105
Radiator Cooling Air m³ /min. 1200
Air Intake - Engine m³ /min. 73
Exhaust Gas Flow m³ /min. 193

Alternator Specifications

Design Brushless single bearing, revolving field/td>
Stator 2/3 pitch
Rotor Single bearing, flexible disc
Insulation System Class H
Standard Temperature Rise 125 - 163°C Continuous
Exciter type Self Excited
Phase Rotation A (U), B (V), C (W)
Alternator Cooling Direct drive centrifugal blower fan
AC Waveform Total Harmonic Distortion No load <1.5% Non distorting balanced linear load < 5%
Telephone Influence Factor (TUF) <50 per NEMA MG-1-22.43
Telephone Harmonic Factor (THF) <2%

900kva 800kva Silent Perkins Diesel Power Generator 4006-23TAG3A

900kva 800kva Silent Perkins Diesel Power Generator 4006-23TAG3A

900kva 800kva Silent Perkins Diesel Power Generator 4006-23TAG3A

EASY TO MAINTAIN

The daily maintenance work can be performed on both sides of the machine, and wide door allows you easily get in touch with the machine.

An integral base drainage outlet located at the bottom of the machine makes easier regular maintenance.

For generators above 300Kva, a ladder for climbing is equipped. It makes easier to check and service.
