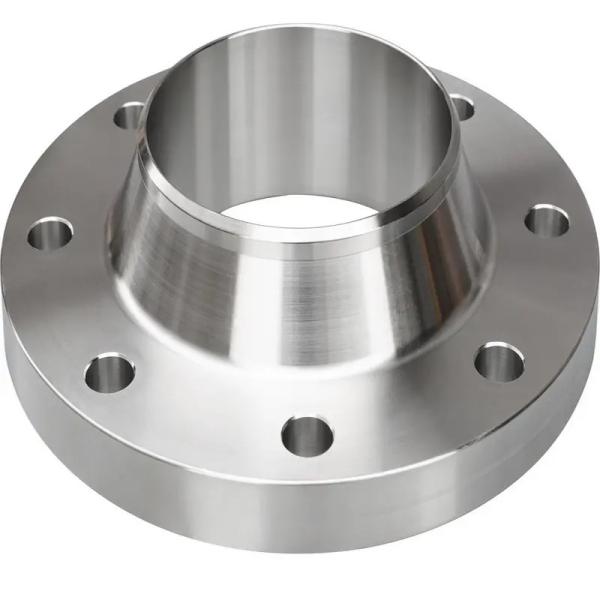

1''-1/2'' Copper Nickel Flange Affordable With Neck Butt Welding
1''-1/2'' Copper Nickel Flange Affordable With Neck Butt Welding
1''-1/2'' Copper Nickel Flange Affordable With Neck Butt Welding
1''-1/2'' Copper Nickel Flange Affordable With Neck Butt Welding
Specifications
Brand Name :
TOBO
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
CHINA
MOQ :
1
Price :
depending on quantity
Supply Ability :
30000 per month
Delivery Time :
15-30 working days depending on quantity
Packaging Details :
standard export sea-worthy packing
Product Name :
Copper Nickel Flange Flange With Neck Butt Welding
Product Type :
Flange with neck butt welding
Size :
1/2''-24''
DN15-DN1500 :
15-1500
material :
Carbon steel
level :
1
Mode of connection :
forging
Special functions :
Good elasticity, low steel value
Description

Product Name Copper Nickel Flange Flange With Neck Butt Welding
Standard ASMEB16.5
Size 1/2’’~24’’
Pressure Rate 150lb to 2500lb
Manufacturing process Push, Press, Forge, Cast, etc.
Material Forged steel

Allloy steel flange

ASTM A182 F5; F11;F22;F91;F51

ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8

Stainless Steel flange

ASTM A182 F304/304H/304L

ASTM A182 F316/316H/316L

ASTM A182 F321/321H

ASTM A182 F347/347H

Nickel Alloys Flanges

 Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys Flange Copper, Brass & Gunmetal
Manufacture Standard

ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504 , BS4504, BS1560, BS10
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

1''-1/2'' Copper Nickel Flange Affordable With Neck Butt Welding

In pipeline engineering, flanges are mainly used for the connection of pipelines. Wire flanges can be used for low-pressure pipelines, and welding flanges should be used for those with more than 4kg of pressure.

1''-1/2'' Copper Nickel Flange Affordable With Neck Butt Welding

Butt welding flange is mainly used in the environment of moderate medium conditions, such as low pressure unpurified compressed air, low pressure circulating water, its advantage is that the price is cheaper. The sealing surface of butt welded flange can be divided into three types: smooth type, concave and convex type and tenon type. Smooth butt welding flange has a wide range of applications, and the other two ways of butt welding flange is also more in use. The structure of butt welding flange is reasonable, the strength and stiffness are large, can withstand high temperature and high pressure, repeated bending and temperature fluctuations and other harsh environment, and will not reduce the sealing performance.

Butt welded flange is a kind of pipe fitting, it refers to the flange with neck and a round pipe transition and butt welded with the pipe. At present, it is widely used, because the butt welding flange is not easy to deform, sealed well, widely used, has the corresponding rigidity and elasticity requirements and reasonable butt welding thinning transition.
