Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized
Specifications
Brand Name :
IKE Visual
Model Number :
Wind
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
5SQM
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
500PCS/Month
Delivery Time :
12days
Packaging Details :
Flight case,Plywood case
Color :
full color
Material :
rubber
Pixel Pitch :
3-9
Brightness :
4500 nits
IP Rating :
IP65
Refresh Rate :
3840 HZ
Description

Outdoor Soft LED Display Module Soft rubber with magnet inside Easy installation

Overview
Wind O
Quick Details
Application:
Outdoor,semi-outdoor
Color:
Full color
Waterproof
IP65
Pixel Pitch:
P3-P9
LED Type:
1921SMD
LED Chio
3 in1 SMD
Place of Origin:
Guangdong, China
Model Number:
Wind O
Power Consumption
(Max./Avg.)
Accordingly
Panel size:
W1200mm*H600mm
Use:
Advertising publish, retail store, shopping mall,stage
Product name:
Flexible LED display
Brightness:
4500 nits
Media Available:
Datasheet, Photo, EDA/CAD Models
Max. Curve:
Min.Diameter 77cm Concave Or Convex
Scan mode:
Accordingly
Pixel density:
Accordingly
Control system:
Novastar
Weight:
17.9kg/sqm
Refresh Rate:
1920Hz
Customized:
Accept
Product Description
  • Stable quality
  • Fast and easy installation
  • Waterproof available
  • Energy Saving
  • Customized Shape
  • Soft Rubber

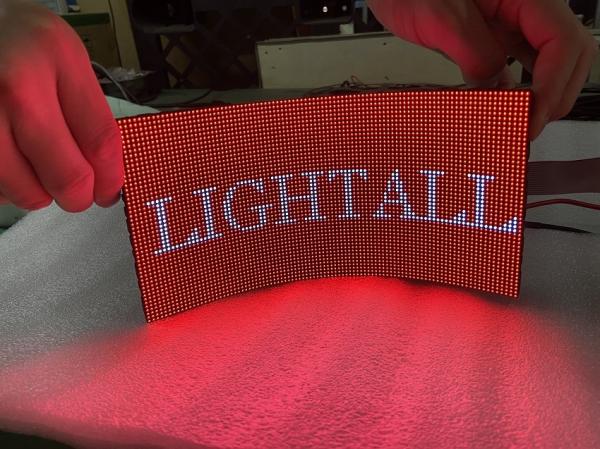

Wind Series flexible LED display offers outstanding performance with its real flexibility.

Magnet inside,easy to install.

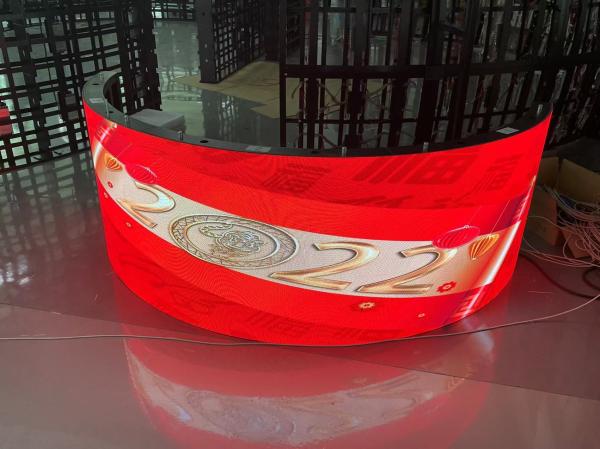

The unique design contributes to the horizontal and vertical deformed bending installation, making it possible to achieve “S”shaped, round, concave, convex and curved screen.

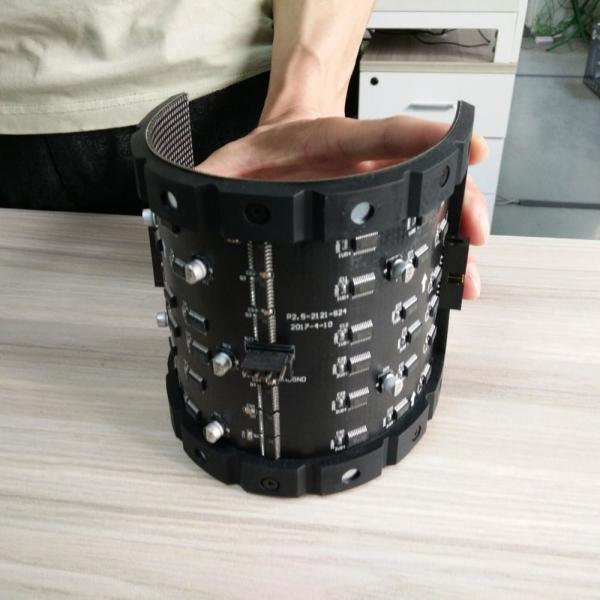

The special soft PCB board design allows Wind series being ever-changing,no matter if you would want concave shape in a concert now,and cylinder LED display in a supermall tomorrow,even would provide a touring show for a stage 2 days later,it will be easily done by Wind Series .

Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized

We have CE ROHS FCC.
Model No
Wind-3
Wind-4/Wind O-4
Wind-6/Wind O-6
Wind-9/Wind O-9
Wind-12/Wind O-12
Pixel Pitch
P3.125mm
P4.6875 mm
P6.25 mm
P9.375 mm
P12.5mm
Density
102400 Pixels/㎡
45512 Pixels/㎡
25600 Pixels/㎡
11378 Pixels/㎡
6400 Pixels/㎡
Brightness
1200 Nits
1200 Nits/5000 Nits
1200 Nits/5000 Nits
1200 Nits/5000 Nits
1200 Nits/5000 Nits
IP Degree
IP43
IP43/IP65
IP43/IP65
IP43/IP65
IP43/IP65
Panel Size
800mm*400mm
1200mm*600mm
1200mm*600mm
1200mm*600mm
1600mm*800mm
Customized Available
Module Resolution
256 x 128
256 x 128
192 x 96
192 x 96
192 x 96
Weight
17.5kg/㎡
17.9kg/㎡
17.5kg/㎡
17.5kg/㎡
17.2kg/㎡
Scan Mode
1/16 Scan
1/16 Scan
1/8 Scan
1/8 Scan│1/4 Scan
1/8 Scan│1/2 Scan
Max. Power Consumption
800 W /㎡
Indoor: 700 W /㎡
Indoor: 700 W /㎡
Indoor: 300 W /㎡
Indoor: 200 W /㎡
Outdoor:830 W/㎡
Outdoor:830 W/㎡
Outdoor:600 W/㎡
Outdoor:600 W/㎡
Avg. Power Consumption
267 W/㎡
Indoor: 230W /㎡
Indoor: 230 W /㎡
Indoor: 100 W /㎡
Indoor: 80 W /㎡
Outdoor:280W/㎡
Outdoor:280 W/㎡
Outdoor:200 W/㎡
Outdoor:200 W/㎡
Viewing Angle
120 degree
Working Voltage
DC 5V
Input Voltage
AC 100-240V
Thickness
7.0cm (With Electronic Box) 1.3cm(Without Electronic Box)

  • Good after sold service

Soft Rubber Outdoor LED Display Module Full Color IP65 4500 nits Customized

FAQ
1. What is MOQ?
We can support you with any quantity, including the samples order.
2. Can I get free samples?
Yes, we are glad to send you one type of sample or mixed types samples.
3. What is the delivery time?
For our hot products, we have in stock, Other products take around 5-7days.
4. Can you make different lengths led bar?
Yes, we can make different lengths for you to suit your lightbox size.
5. Can I also buy an LED power supply from you?
Yes.we are the one-stop solution provider of illuminated advertising signs, we can supply mean well-LED power supply and other led transformers.
