Crimping Machine, Metal Sheet Crimping Machine
Crimping Machine, Metal Sheet Crimping Machine
Specifications
Place of Origin :
China
Brand Name :
Jack-Aiva
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
70 working days
Payment Terms :
T/T L/C
Certification :
CE SGS
Hydraulic station power :
5.5KW
Main power: :
0.85KW
Formed Profile Type: :
Arch Roof panel
Raw material thickness: :
0.3-1.0 mm
Corrugated Punching moulds :
CR12, HRC55-60
Line speed: :
0-10m/min
Description

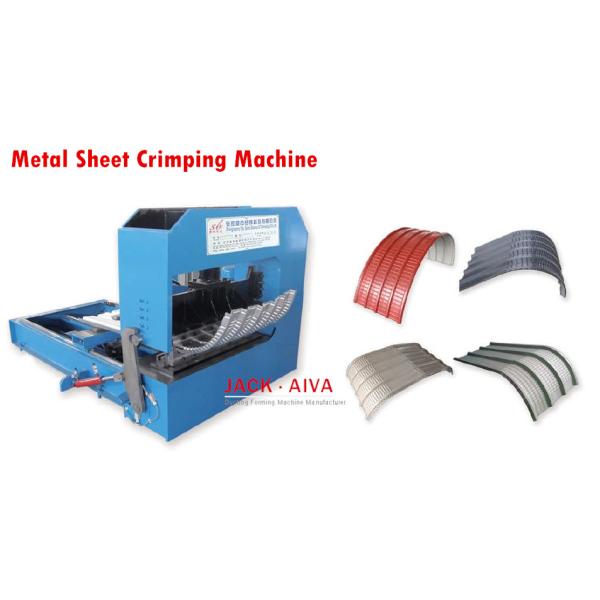

Hydraulic arch crimping machine

Crimping Machine, Metal Sheet Crimping Machine

Hydraulic Arch crimping machine is used to crimp the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings. The Composition of hydraulic Arch crimping machine Crimping main machine and Control panel, this crimping machine can crimp both ends of roofing sheet.

Hydraulic arch crimping machine Main Parameters

ITEM CONTENT
Formed Profile Type: Arch Roof panel
Raw material thickness: 0.3-1.0 mm
Corrugated Punching moulds CR12, HRC55-60
Line speed: 0-10m/min
Feeding mode: Servo motor, 1kw
Main power: 0.85KW
Hydraulic station power 5.5KW
Electrical control system PLC
Max. bending angle 120
Machine size 3000 mm×1400mm×1400 mm

We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.
