K-Span Arched Panel Machine, MIC-240

Roll Forming Machine Trailer-Mounted for production K-Span Arched Panel MIC-240

This kind large span curving roof roll forming machine is mounted on a trailer, forming a type of “mobile factory” that is easily towed to even the remotest construction sites when installing standing seam metal roofs or curved roof panels. An important aspect of this machine is that it can be transported anywhere in the world easily. Once the machine is delivered on site, it can be set up in minutes and turn coils of steel into structural. This K-Span roll forming machine is a portable rollformer, similar with ABM K-span building Machine MIC-120 and MIC-240. All the parts except for the decoiler are mounted on the mobile trailer.

The system is to produce straight and curved panels from the same sheet of steel. These panels are assembled on a prepared or expedient foundation with an electric seaming device until the desired size building is erected. And self-supporting and require no support beams or trusses, nuts, bolts, rivets, fasteners or sealant of any kind.

Roll Forming Machine Technology Specifications

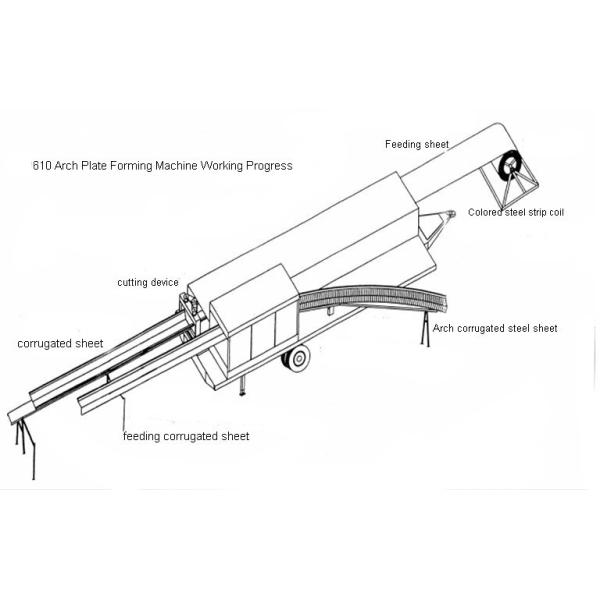

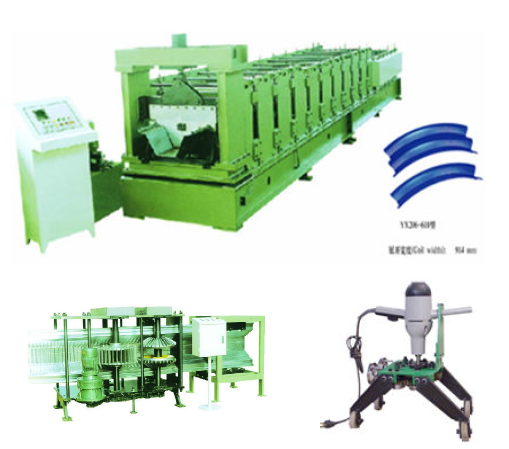

MIC-240 K-Span Curving Roof production line is consisted of straight roof panel Profile roll forming machine, arc panel curving machine and seam locking machine. The whole line is installed on an trailer. The Generator is optional. With its movement advantage, it can work at building project working site. The following is the MIC-240 K-span arched panel production machine layout drawing.

Main Parameters- MIC-240K-Span Arched Panel Production Machine

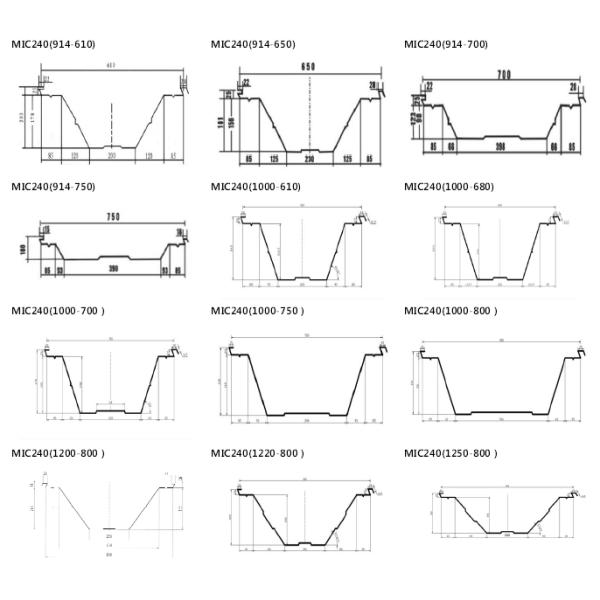

K-Span Arched Panel profile MIC-120 & MIC-240

The MIC-240 Color steel sheet arched roof is cold roll formed with Material thickness of 0.6 ~ 1.5mm, into an straight V channel profile, then curved into an long k-span arched panel, mechanically engage the hemming to form an integral arched roof structure. This advanced construction technology was developed by the American MIC Industrial Company in the 1980s. It is a revolutionary product with a unique idea. It can build 3 ~ 36m width self-supporting arc roof with steel sheet thickness 0.6 ~ 1.5. K-span Arc panel MIC-120 is an U shape style profile, the raw material can be 600mm or 914mm, the normal Maximum span is 24m; Another style arc panel is MIC-240, it is the bigger one, the normal span can be 36mm.

K-Span Arch Sheet Profile MIC120

MIC120 K-Span Arch Sheet Applications

Advantages of the K-span

Cost-Effective

There has report showed the costs 40-60% less than labor-intensive conventional construction or prefabricated buildings. The state-of-the-art technology lowers cost by reducing the crew and by eliminating your dependency on architects or engineers. With the seaming machine, there is no need for nuts, bolts or screws. This feasible solution allows you to manufacture a building in as little as a single day, saving valuable time and money.

Flexible Designs

The K-span arched panels allows you to build structures to your unique specifications. Clear span building widths can be small or large. Building lengths and the ability to later expand a building are unlimited, provides you with capability to create self-supporting ground-to-ground panels with gable, double and single radius designs. Various colors of steel can also be used to enhance the appearance of your buildings.

Durable and Low Maintenance Buildings

The constructs durable, virtually maintenance-free buildings, because they are watertight, rust-free and fireproof. Buildings with K-Span arched panels have been tested for severe weather conditions and can withstand typhoons, earthquakes, harsh winds and heavy snow.

Note: The Common style K-span Roll Forming Machine MIC-120 without trailer can also be supplied.

For further details about MIC-120 Machine, please contact with us!
