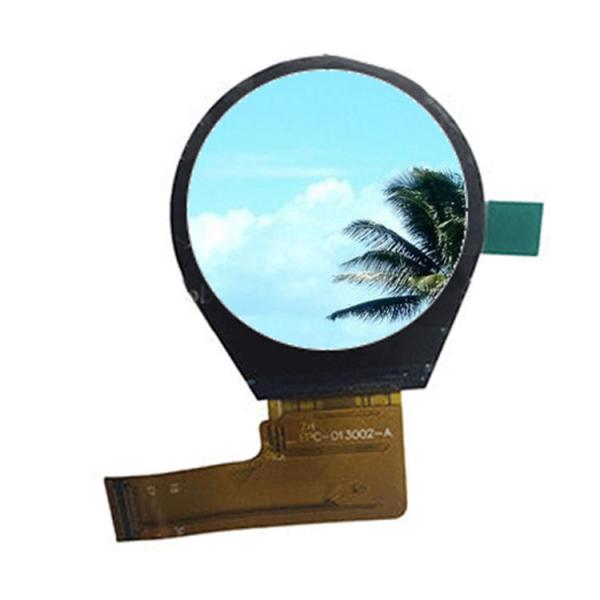

Round 1.28 Inches TFT LCD Display 240 X 240 Dots SPI + RGB Interface
Round 1.28 Inches TFT LCD Display 240 X 240 Dots SPI + RGB Interface
Round 1.28 Inches TFT LCD Display 240 X 240 Dots SPI + RGB Interface
Round 1.28 Inches TFT LCD Display 240 X 240 Dots SPI + RGB Interface
Specifications
Brand Name :
OK SMART
Model Number :
OKT0130-002A
Certification :
SGS
Place of Origin :
Shenzhen China
MOQ :
3000
Price :
usd 2.8-usd 5.6
Payment Terms :
T / T, trade assruance, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
1- 30 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray. About how many products in one package, it is up to the size of products.
Size :
1.28 inch
Driver IC :
ST7789
Resolution :
240x240
Interface :
SPI+RGB
Module Size :
38.23x35.5(mm)
Active Area :
(round)32.4x32.4(mm)
Description

Round tft lcd display with 240 x 240 dots

High contrast riund 1.3 inch tft lcd module

Tft lcd main application features: The use of good characteristics: low voltage applications, low drive voltage, solid-state use of increased safety and reliability;

flat, thin, saving a lot of raw materials and use of space; low power consumption, its power consumption About one-tent of crt display, reflective tft-lcd is only about one percent of crt, which saves a lot of energy;

Product Description
Diagonal length 1.28 inch Pixel size 0.135*0.135
Viewing Direction ALL Active area φ32.4 mm
Dot arrangement 240(R.G.B)*240 Module size 35.5*38.23*1.36 mm

Round 1.28 Inches TFT LCD Display 240 X 240 Dots SPI + RGB Interface

TFT
No OKT0280 Size Resolution Outline Dimension Viewing Angel Interface
1 OKT0122-01 1.22 inch 240x240 25.76*28.16*1.8mm IPS SPI
2 OKT0130-01 1.30 inch 240x240 29.15*26.00*1.85mm IPS SPI
3 OKT0200-01 2.00 inch 240x320 35.40*48.80*2.21mm 80/80/80/80 SPI
4 OKT0240-01 2.40 inch 240x320 42.72*60.26*3.35mm IPS SPI
5 OKT0280-01 2.80 inch 240X320 50.00*69.20 *2.40mm 12 o’clock SPI
6 OKT0350-01 3.50 inch 240X320 76.90*63.90*3.26mm 6 CLOCK RGB
7 OKT0400-01 4.00 inch 480x800 57.84*98.80*2.50mm 6 o’clock MIPI-2Lane
8 OKT0430-01 4.30 inch 480x272 67.20*105.50*2.90mm 12 o’clock RGB
9 OKT0500-01 5.00 inch 800*480 120.70*75.90*4.35mm 6 o’clock RGB
10 OKT0500-02 5.00 inch 480*272 120.70*75.80*3.00mm 12 o’clock RGB
11 OKT0550-01 5.50 inch 1080x1920 70.94*129.56*1.48mm IPS MIPI
12 OKT0700-01 7.00 inch 1024RGB*600 165.00*100.00*2.80mm 3 o’clock LVDS
13 OKT0800-01 8.00 inch 800RGB*1280 114.60*184.10*2.60mm IPS MIPI
14 OKT1010-01 10.1 inch 800RGB*1280 162.4*311.8*4.88mm IPS MIPI
15 OKT1040-01 10.4 inch 800RGB*600 236.00*176.90*5.60mm ** LVDS
