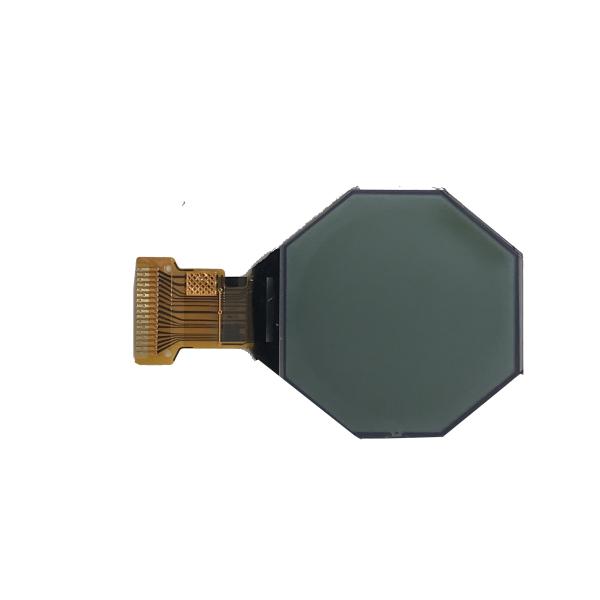

SGS FSTN Graphic LCD Display Module 128x128 Positive Round Lcd Screen
SGS FSTN Graphic LCD Display Module 128x128 Positive Round Lcd Screen
SGS FSTN Graphic LCD Display Module 128x128 Positive Round Lcd Screen
SGS FSTN Graphic LCD Display Module 128x128 Positive Round Lcd Screen
Specifications
Brand Name :
OKSMART
Model Number :
OKM128128-05
Certification :
SGS
Place of Origin :
Shenzhen China
MOQ :
3000
Price :
usd 3.2 - 4.8 piece
Payment Terms :
T / T, trade assruance, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
1- 30 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray. About how many products in one package, it is up to the size of products.
Format :
128X128 Dots
LCD mode :
FSTN/ Positive/ Transmissive
IC :
ST7567
Operating temperature :
-20℃~70℃
Storage temperature :
-30℃~80℃
origin :
Shenzhen China
Description

FSTN Display 128x128 Graphic Mono LCD Display Positive Screen

OKM128128-05 Application is for electronic measurer , medical facility ,telecome equipment . If you have any question, pls contact with me.

128x128 Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator
Built-in Neotec NT7086 segment driver and Sanyo LC7981 or compatible controller
128x128 graphic mode --or-- 21 x 16 text mode using built-in 5x7 Character Generator ROM.
Available in several variations of backlight and polarizer (minimum order may be required)

Item name OKM128128-05 LCD mode FSTN, Positive, Reflective
Driving scheme 1/128 Duty cycle, 1/10 Bias Viewing direction 6 o’clock
Operating temp

-20℃~70℃

 Storage temp -30℃~80℃


SGS FSTN Graphic LCD Display Module 128x128 Positive Round Lcd Screen

Monochrome LCD screen

commonly known as black and white screen, because it can only be named after a single color, by changing the polarizer, etc., can be made into white on a black background, white on a blue background, black on a yellow background, black on a yellow background, and black on a green background.

After the development and correction of the process, it is now possible to make a color segment LCD screen, but the biggest advantage of the LCD screen is that the user design is simple, occupying the i/o port of the master control
