FSTN display 16096 Display module positive LCD display FSTN monochrome cog
FSTN display 16096 Display module positive LCD display FSTN monochrome cog
FSTN display 16096 Display module positive LCD display FSTN monochrome cog
FSTN display 16096 Display module positive LCD display FSTN monochrome cog
Specifications
Brand Name :
OKSMART
Model Number :
OKM16096-06
Certification :
SGS
Place of Origin :
Shenzhen China
MOQ :
3000
Price :
usd 2.7- 3.8 piece
Payment Terms :
T / T, trade assruance, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
1- 30 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray. About how many products in one package, it is up to the size of products.
LCD mode :
FSTN, POSITIVE, TRANSFLECTIVE Mode
Operating temperature :
-20℃~70℃ .
Storage temperature :
-30℃~80℃.
Viewing area :
47.0mm(L)*30.0mm(W)
Description

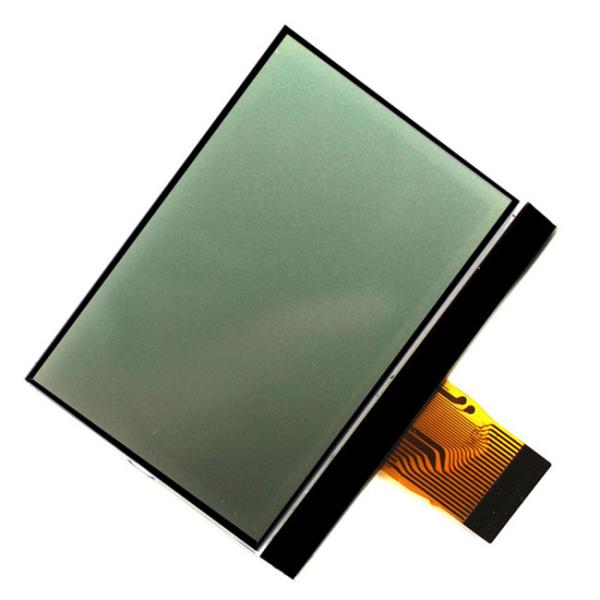

FSTN display 16096 Display module positive LCD display FSTN monochrome cog

FSTN monochrome graphic lcd module 16096 graphic 160x96 lcd display Newest high performance 16096 graphic lcd ,oksmart advantage :we have our own lcd glass line ,customizabble dimention and backlight and also connector .

I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

OKM16096-06
Pin no Symbol Function
1 VG LCD driving voltage for segment circuits.
2 VO LCD driving voltage for common circuits at negative frame
3 XVO LCD driving voltage for common circuits at negative frame.
4 C1+ DC/DC voltage converter.
5 C1- DC/DC voltage converter
6 VDD Supply voltage for logic circuit +3.3V
7 VSS Ground
8 IF1 The pin select interface operation mode.
9 IF0 The pin select interface operation mode.
10 /CS This is the chip select signal. When /CS = “L” and CS = “H”, then the chip select becomes active, and data/command I/O is enabled
11 AO Select register data when A0= “H”, and instruction when A0= “L”
12 ERD In 6800 mode, it’s enable control pin. In 8080 mode, when /RD=0, read is active
13 RWR In 6800 mode, it’s Read/Write control pin. In 8080 mode, when /WR=0, write is active.
14 RST Reset input pin, When RET is “L”, initialization is executed
15 D0~D7 Serial data input terminal
