STN Blue Hd COB Graphic LCD Display Module For Electronic Scale Large Size
STN Blue Hd COB Graphic LCD Display Module For Electronic Scale Large Size
STN Blue Hd COB Graphic LCD Display Module For Electronic Scale Large Size
STN Blue Hd COB Graphic LCD Display Module For Electronic Scale Large Size
Specifications
Brand Name :
OKSMART
Model Number :
OKM25632-01
Certification :
SGS
Place of Origin :
Shenzhen China
MOQ :
3000
Price :
usd 2.8- 4.0 piece
Payment Terms :
T / T, trade assruance, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
1- 30 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray. About how many products in one package, it is up to the size of products.
Viewing direction :
12 o’clock .
DISPLAY TYPE :
STN, NEGATIVE, BLUE
Format :
256 X 32 Dots .
Drive ic :
ST75256
Description

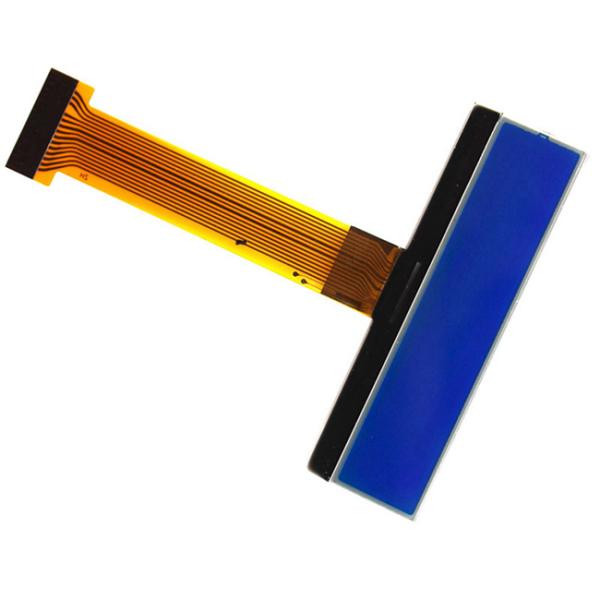

25632 LCD display STN Blue hd display COB Module display Electronic scale display in large size

OKM25632-01 is a blue 1.8-inch OLED display module 256x32 dot matrix, and serial port, including SSD1326 controller, FPC connection, super bright high contrast wide temperature, 2.8V voltage.

FSTN monochrome graphic lcd module 256X32 graphic popular 25632graphic lcd, oksmart advantage : we have our own lcd glass line, customizabble dimention and backlight and also connector.

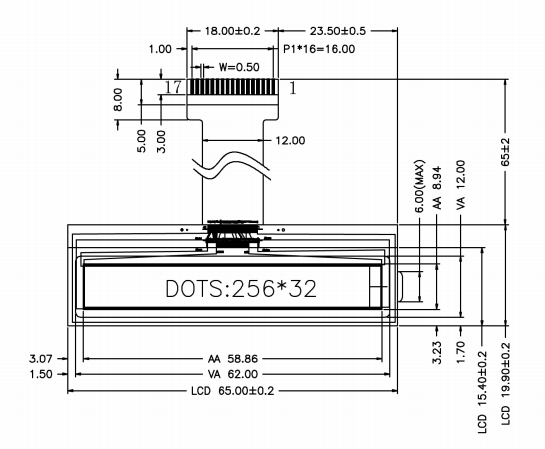

OKM25632-01
Pin no Symbol Function
1 LED-A Supply voltage for backlight +3.1V
2 LED-K Supply voltage for backlight Ground
3 VG LCD driving voltage for segment circuits
4 XVO LCD driving voltage for common circuits at positive frame
5 VO LCD driving voltage for common circuits at negative frame.
6~7 GND Ground
8 VD1 VD1I is the power source of digital circuits
9 VM
10 VDD Supply voltage for logic circuit
11,19 VSS Ground
12 IF2
13 IF1
14 CSO CSB=“L”: This chip is selected and the MPU interface is active. CSB=“H”: This chip is not selected and the MPU interface is disabled (D[7:0] are high impedance).

STN Blue Hd COB Graphic LCD Display Module For Electronic Scale Large Size

STN Blue Hd COB Graphic LCD Display Module For Electronic Scale Large Size

Products are now widely used in calculators, induction cookers, power meters, car stereos, perms,

electronic watches, thermostats, digital calipers, air conditioning remote control, air conditioning fans,

chargers, thermometers, blood pressure monitors, electronic scales , credit card machines, massagers,

digital meters, mobile phones, digital electric pens, water meters, rice cookers, safes, water heaters,

steppers, radios, fuel dispensers, fax machines, etc.
