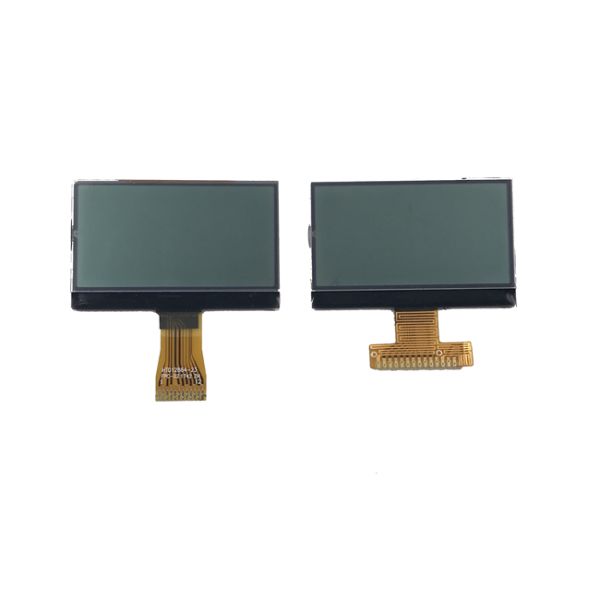

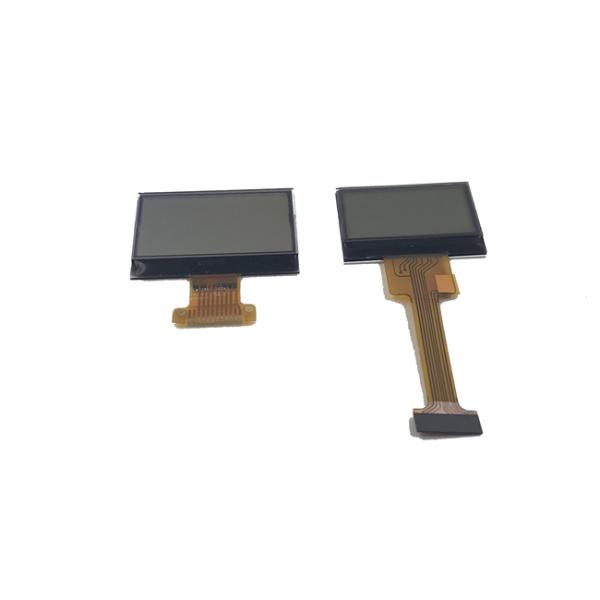

Numbers Letters Square Lcd Screen Module LCM Lcd Display 12864
Numbers Letters Square Lcd Screen Module LCM Lcd Display 12864
Numbers Letters Square Lcd Screen Module LCM Lcd Display 12864
Numbers Letters Square Lcd Screen Module LCM Lcd Display 12864
Specifications
Brand Name :
OKSMART
Model Number :
OKM12864-253C4
Certification :
SGS
Place of Origin :
Shenzhen China
MOQ :
1000
Price :
USD 2.7-3.5 per piece
Payment Terms :
Trade Assurance, L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
90000 pieces per month
Delivery Time :
30-45 working days
Packaging Details :
Kraft box / white box to a carton or customized packing
Other name :
LCD module LCM display
Module size :
26.7mm(L)*19.26mm(W)*1.5mm(H)
Viewing area :
23.344mm(L)*12.464mm(W)
Dot pitch :
0.17mm(L)*0.17mm(W)
Dot size :
0.154mm(L)*0.154mm(W)
Power supply voltage for logic :
VDD -0.3~+3.6 V
Description

Numbers Letters Square Lcd Screen Module LCM Lcd Display 12864

LCD module 12864 LCD module LCM

OKM12864-253C4 module can display letters, numbers, Chinese characters and graphics, with a mixture of graphics and text screen display. A 128 (column) x 64 (row) lattice can be displayed. Can complete the graphic display.

OKM12864-253C4 provides three control interfaces: 8-bit microprocessor interface, 4-bit microprocessor interface, serial interface.

OKM12864-253C4 module can be mixed with text screen display.

OKM12864-253C4 provides multi-function instructions: clear screen, cursor return, display on/off, cursor display/hide, display character flash, cursor shift, display shift, vertical screen scrolling, reverse video display.

OKM12864-253C4 use and storage temperature are: room temperature (working temperature 0 ~ +50 °C, storage temperature -10 ~ +60 °C); wide temperature (working temperature -20 ~ +70 °C, storage temperature -30 ~ +80 °C) ; Wide temperature (working temperature -30 ~ +80 °C, storage temperature -40 ~ +80 °C), available for customers to choose.

Storage temperature:

-30~+80 °C

Dot pitch:

 0.17mm(L)*0.17mm(W)
Dot size: 0.154mm(L)*0.154mm(W) Viewing area: 23.344mm(L)*12.464mm(W)
Module size: 26.7mm(L)*19.26mm(W)*1.5mm(H) Operating temperature: -20~+70 °C

Numbers Letters Square Lcd Screen Module LCM Lcd Display 12864Numbers Letters Square Lcd Screen Module LCM Lcd Display 12864
