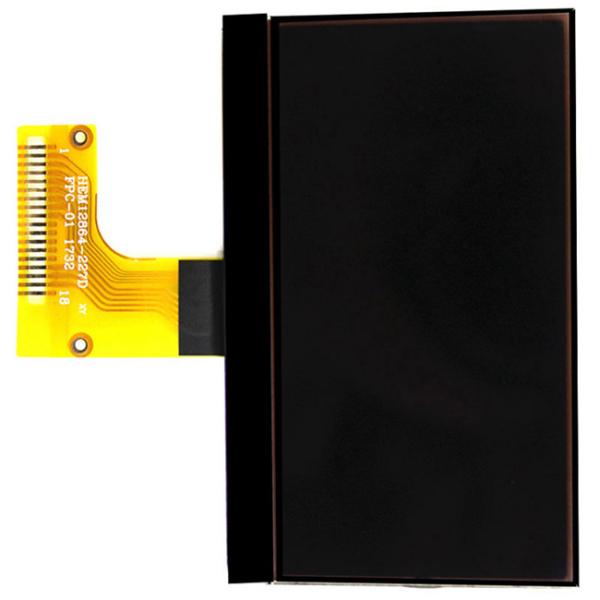

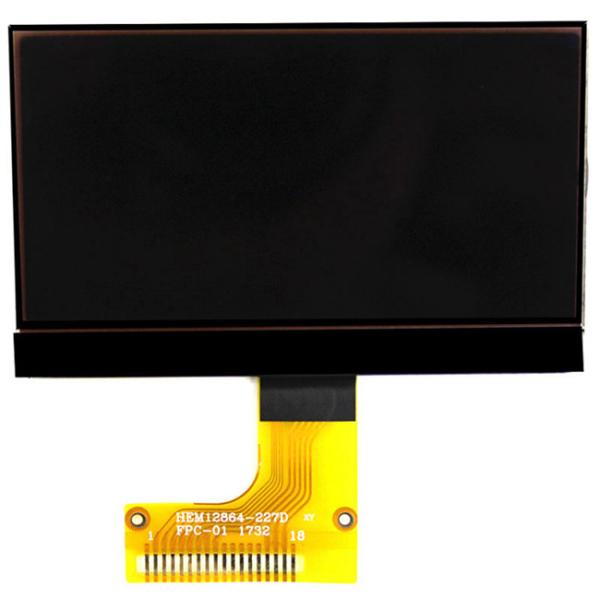

12864 mono Customize display FSTN Positive LCD module 6 O'clock viewing angle Drive IC ST7565R
12864 mono Customize display FSTN Positive LCD module 6 O'clock viewing angle Drive IC ST7565R
12864 mono Customize display FSTN Positive LCD module 6 O'clock viewing angle Drive IC ST7565R
12864 mono Customize display FSTN Positive LCD module 6 O'clock viewing angle Drive IC ST7565R
Specifications
Brand Name :
OKSMART
Model Number :
OKM12864-227E
Certification :
SGS
Place of Origin :
Shenzhen China
MOQ :
1000
Price :
USD 1.43-2.38 per piece
Payment Terms :
Trade Assurance, L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
970000 pieces per month
Delivery Time :
30-40 working days
Packaging Details :
Kraft box / white box to a carton or customized packing
Other name :
Mono LCD display module
Storage temperature :
-20℃~70℃
Operating temperature :
-10℃~20℃
Viewing direction :
6 o’clock
Display type :
STN/Y-G
Display mode :
1/65D, 1/98
Description

12864 mono Customize display FSTN Positive LCD module 6 O'clock viewing angle Drive IC ST7565R

* 12864 mono Customize display FSTN Positive LCD module 6 O'clock viewing angle Drive IC ST7565R for ETC installation.

* Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.


* Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

For more details,pls feel free to contact us at anytime.

24 hours hot-line tel & We-chat :+86 133-1681-5589
E-mai & Skyp: ok03 AT smart-lcm dot com

Joanna Lee will be happy to serve you.

Pin no Symbol Function
1 CS1B Chip Select , When /CS= “L”, chip is selected
2 RESB When /RST= “L”, the settings are initialized
3 RS Selects register date “H” and instruction “L”
4 D6 Serial clock input terminal
5 D7 Serial data input terminal
6 VDD Supply voltage for logic circuit +3.3V
7 VSS Ground
8--13 VOUT,CAP3+ CAP1-,CAP1+, CAP2+,CAP2 DC/DC voltage converter.
14 V1 Driving supply voltage.
15 V2
16 V3
17 V4
18

V0

12864 mono Customize display FSTN Positive LCD module 6 O'clock viewing angle Drive IC ST7565R12864 mono Customize display FSTN Positive LCD module 6 O'clock viewing angle Drive IC ST7565R
