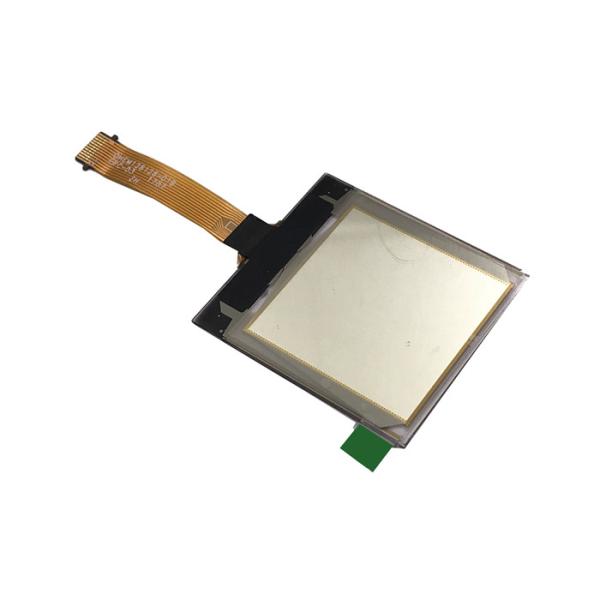

128 X 128 Pixels PMOLED Display , 16 Gray Scale PMOLED Screen SPI / I2C Interface
128 X 128 Pixels PMOLED Display , 16 Gray Scale PMOLED Screen SPI / I2C Interface
Specifications
Brand Name :
OK Smart
Model Number :
OKP128128-01B
Certification :
SGS
Place of Origin :
China
MOQ :
1000
Price :
USD4.99 -7.99
Payment Terms :
T/T, Western Union
Supply Ability :
1000 pcs / month
Delivery Time :
5-8 working days after payment
Packaging Details :
Cartons, Capboard, EPE, Blister Tray. About how many products in one package, it is up to the size of products.
Display color： :
16.7M (RGB x 8bits)
Display format： :
1.5 INCH (128RGBx128)
Pixel arrangement： :
Real RGB arrangement
Interface： :
SPI OR I2C
brand :
OK Smart
model :
OKP128128-01B
Description
1.5 inch OLED display Module 128 x 128 pixels 16 gray scale SPI / I2C interface

Overview

This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.

Features

  • 128x128 high resolution
  • 16 gray scale, better display effect
  • Supports SPI or I2C interface, configured via onboard resistor
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Driver: SSD1327
  • Interface: SPI / I2C
  • Display color: White
  • Gray scale: 16
  • Resolution: 128x128 (most other competitive products are typically 128x64)
  • Viewing angle: >160°
  • Operating voltage: 3.3V / 5V
  • Dimension: 33.8 (W) x 43.7 (H) x 1.41 (T) (mm)

Interface

SYMBOL DESCRIPTION
VCC Power (3.3~5V input)
GND Ground
DIN Data input
CLK Clock data input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active

There are two available drive interfaces for this OLED module: 4-wire SPI and I2C:

BS CS DC DIN CLK
4-wire SPI 0 Chip select Data/Command MOSI SCK
I2C 1 NC I2C address selection SDA SCL

128 X 128 Pixels PMOLED Display , 16 Gray Scale PMOLED Screen SPI / I2C Interface

Dimensions

128 X 128 Pixels PMOLED Display , 16 Gray Scale PMOLED Screen SPI / I2C Interface

FAQ

How to order lcd?

A:Please send us your purchase order by Email or Fax or by alibaba, or ask us to send you one invoice. We need to know the following information for your order.

1)Product information-Quantity,part number

2)Delivery time required.

3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.
