1.41Inch AMOLED Display Full Viewing Angles Ultra Thin No Back light Touch Panel
1.41Inch AMOLED Display Full Viewing Angles Ultra Thin No Back light Touch Panel
1.41Inch AMOLED Display Full Viewing Angles Ultra Thin No Back light Touch Panel
1.41Inch AMOLED Display Full Viewing Angles Ultra Thin No Back light Touch Panel
1.41Inch AMOLED Display Full Viewing Angles Ultra Thin No Back light Touch Panel
1.41Inch AMOLED Display Full Viewing Angles Ultra Thin No Back light Touch Panel
Specifications
Brand Name :
OEM
Model Number :
OKA0141-01
Certification :
ISO9001 : 2015
Place of Origin :
China
MOQ :
1000 pieces
Price :
To be negotiated
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000pcs/month
Delivery Time :
30-38days
Packaging Details :
Kraft gift box or Customized design
Color :
Full Color
Resolution :
320*360
Active area :
(Square)23.84*26.82
Interface :
MIPI / Customized design
Size :
1.41 inch
Touch :
ZTW522 / Customized
Controller :
RM67162
Back light :
No Back light
Thickness :
0.78mm
Viewing angles :
Full free angles or customized
Description

1.41Inch AMOLED Display Full Viewing Angles Ultra Thin No Back light Touch Panel

Shenzhen Ok Smart-Lcm Photoelectric Co.,Ltd,focus on lcm display for 13 years.

Amoled: active-matrix organic light-emitting diode, is the most popular display now and in the future.

Amoled have the advantage as below:

1. 0.95inch--5.5inch size option

2. No backlight with thinner profile

3. High contrast

4. Energy effcient, narrow bezel

Mechanical Specifications:

Item Specification unit
LTPS Glass outline 26.04*31.78 mm
Encapsulation Glass outline 26.04*30.18 mm
Number of dots 320(W)*RGB*360(H) dots
Active area 23.84*26.82 mm
Diagonal size 1.413 inch
Pixel pitch 74.49*74.49 μm
Glass thickness(LTPS/Encap.glass) 0.2/0.3 mm
Weight 2.01 g

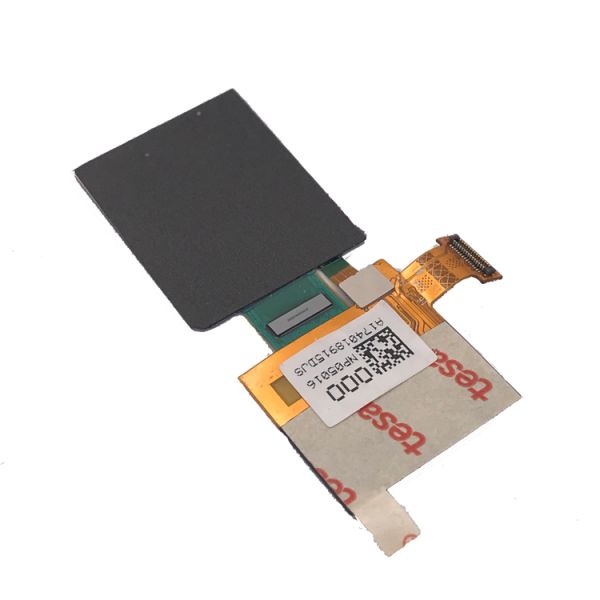

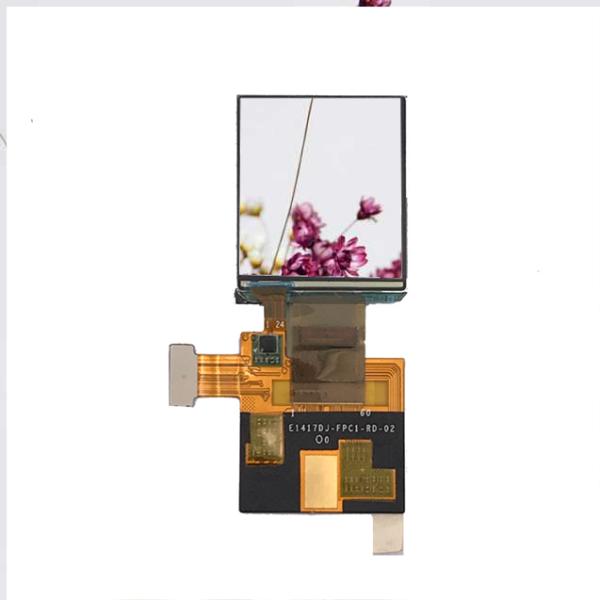

Photoes:

1.41Inch AMOLED Display Full Viewing Angles Ultra Thin No Back light Touch Panel1.41Inch AMOLED Display Full Viewing Angles Ultra Thin No Back light Touch Panel
