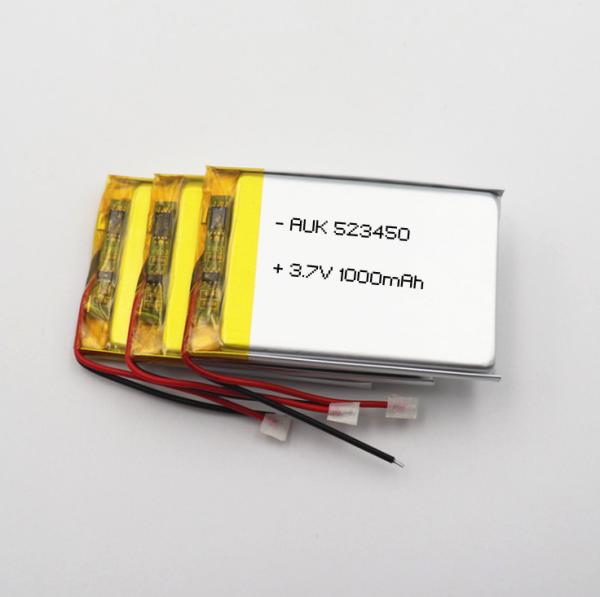

20g 3.7V 1000mAh Rechargeable LiPo Battery Li Polymer 523450 ROHS
20g 3.7V 1000mAh Rechargeable LiPo Battery Li Polymer 523450 ROHS
Specifications
Brand Name :
AUK
Model Number :
523450
Certification :
MSDS
Place of Origin :
China
Capacity :
1000mAh
Charge Rate :
1C
Chemistry :
Lithium Polymer
Connector Type :
JST-PH 2.0mm ...etc
Cycle Life :
500 cycles
Dimensions :
5.2mm x 34.0mm x50.0mm
Voltage :
3.7V
Weight :
Approx. 20g
Description

AUK Battery CE ROHS UN38.3 MSDS Approved Li-Polymer Battery 523450 1000mah 3.7V 3.7Wh Rechargeable Lipo Battery

Specification

523450/1000mah
Basic Information

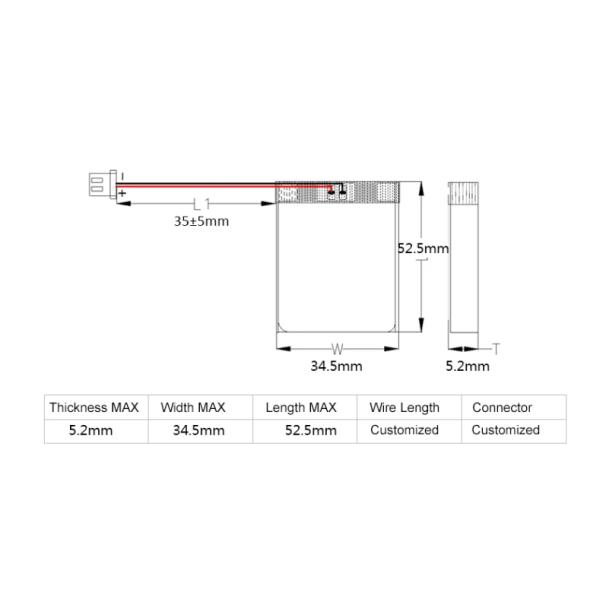

Dimension( thickness*width*length)
5.2*34*50mm
Charge Voltage
4.2V
Nominal voltage
3.7V
Nominal capacity
1000mah
Fully charge voltage
4.2v
Ship out volatge
3.7-4.1v
Battery specification
Charge current
Standard Charging:0.5C/500mA
Max charge:1.0C/1000mA
Charging method
Charge with constant current 0.5c to 4.2V. then chagre with constant voltage 4.2v till. until charge current is less than 0.01C
Standard discharge current
0.5C/500mA
Max.discharge current
1.0C/1000mA
Discharge cut-off voltage
2.75V or 3.0V
Operating enviroment
Charging:0℃~45℃
Discharging:-10℃~60℃
Storage temperature
-10℃~45℃
Battery recyle time
500 times
Warranty
12 months
Certifications
UI1642,IEC62133, ROHS, UN38.3, MSDS
