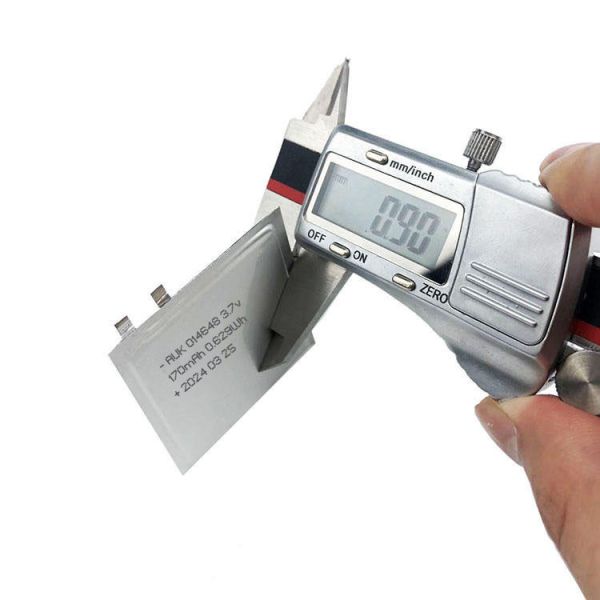

Super Thin Li-Ion Flexible Battery 014461 014648 3.7 V 180mAh 200mAh 170mAh Ultra Thin 3.7v Polymer Battery
Super Thin Li-Ion Flexible Battery 014461 014648 3.7 V 180mAh 200mAh 170mAh Ultra Thin 3.7v Polymer Battery
Specifications
Brand Name :
AUK
Model Number :
014648
Certification :
MSDS
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/day
Delivery Time :
5-8 Work Days
Packaging Details :
Carton box
Capacity :
170mAh
Certifications :
MSDS
Chemistry :
Lithium Polymer
Operating Temperature :
-20°C to 60°C
Type :
Rechargeable
Description
Super Thin Li-Ion Flexible Battery 014461 014648 3.7 V 180mAh 200mAh 170mAh Ultra Thin 3.7v Polymer Battery
Super Thin Li-Ion Flexible Battery 014461 014648 3.7 V 180mAh 200mAh 170mAh Ultra Thin 3.7v Polymer Battery
Battery Specification
1. Mechanical Characteristics
Cell
014648
PCM
No
NTC
No
Weight
appr. 3.8 g
Configuration
1S1P
Demension
0.9*46*48mm(MAX)
2. Electrical Specification
Capacity
170mAh
Nominal Voltage
3.7V
Energy
0.629Wh
Internal Impedance
less than 300mΩ
Max. Charge Voltage
4.2V
Discharge Cut Off
2.75V
Max. Charge Current
170mAh
Max. Discharge Current
170mAh
Standard Charge Current
34mA
Standard Discharge Current
34mA
Charge Temp. Range
0℃ to 45℃
Discharge Temp. Range
-20℃ to 60℃
Storage Temp. Range
1 year at -20℃ to +30℃
Cycle life
100 cycles ≥92%
3 months at -20℃ to +45℃
300 cycles ≥88%
1 month at -20℃ to +60℃
500 cycles ≥80%
3. Cell protection
Overcharge Detection
-
Over discharge Detection
-
Overcurrent Detection
-
Short protection
-
1. We can design all kinds of discharge rate battery according to our client's requirement, we can design 65C continue discharge rate battery.
2. High discharge rate platform, median voltage is over 3.3V when discharge under Nominal discharge rate.
3. Low temperature: The highest temperature is below 75 when discharge at discharge rate.
4. Long cycle life: Up to 500 cycles under quick charging and discharging at nominal discharge rate.
5. Good built-up capability and good consistency.
6. Flesible dimension can be widely used in the Tablet PC, commuication equipments
Other Ultra thin lipo battery as below:
No Model capacity(mAh) Voltage(V) Thickness(mm) Width(mm) Length(mm)
1 AUK041850 12 3.7 0.47 18.5 50.5
2 AUK042126 8 3.7 0.50 21.8 26.1
3 AUK042255 20 3.7 0.47 22.5 55.5
4 AUK042323 8 3.7 0.47 0.5 23.5
5 AUK043030 15 3.7 0.47 30.5 30.5
6 AUK043228 15 3.7 0.47 32.5 28.5
7 AUK043251 25 3.7 0.47 32.5 51.5
8 AUK043526 12 3.7 0.47 35.0 26.5
9 AUK072247 30 3.7 0.70 22.8 47.8
10 AUK072836 30 3.7 0.70 28.0 36.0
11 AUK082025 14 3.7 0.80 20.5 25.5
12 AUK083960 100 3.7 1.00 39.5 60.5
13 AUK085045 100 3.7 0.80 50.0 45.5
14 AUK10180270 3,000 3.7 1.00 180.0 270.0
15 AUK20180270 6,000 3.7 1.80 180.0 270.0
16 AUK2029110 400 3.7 2.00 29.5 110.0
