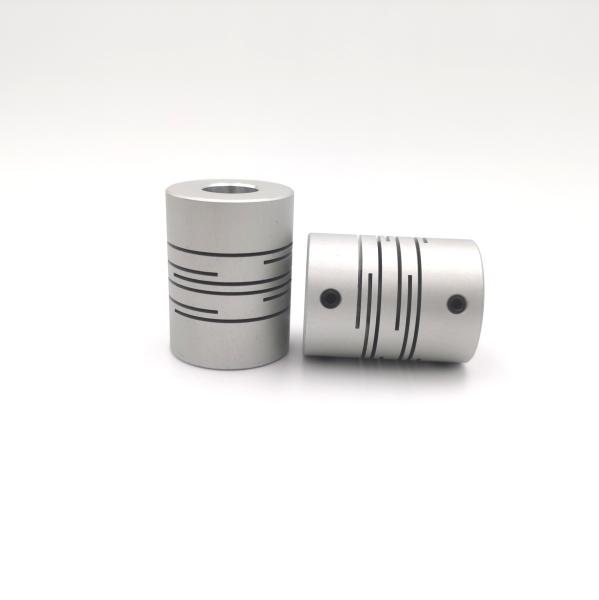

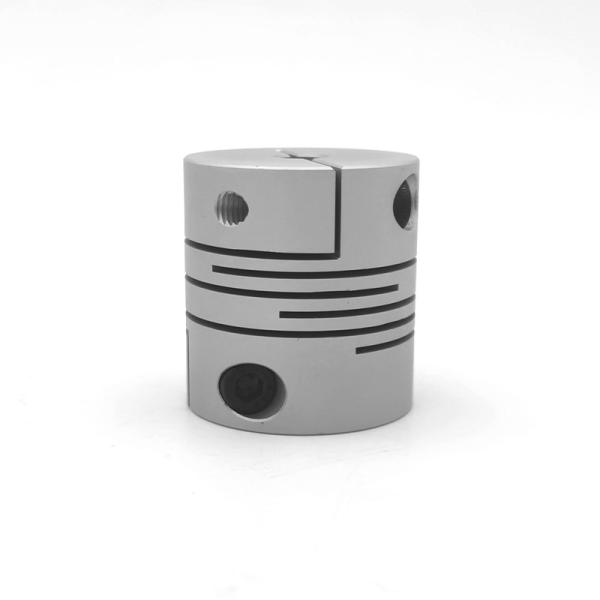

Multiple Sizes Aluminum Alloy Shaft Coupling Spiral Clamping Coupling

Overview

This spiral clamping coupling is made of high-strength aluminum alloy. It is seamless and with excellent flexibility.

Product NameSpiral Clamping Coupling
TypeFlexible Coupling
MaterialAluminum Alloy
Surface TreatmentAnodic Oxidation
ColorGrey
SizeMultiple Sizes Available
ApplicationIndustrial Equipment
KeywordCNC Macining Parts
TypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, etc.
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metal, etc.


Dimensions of Spiral Clamping Coupling

DLd1, d2 Shaft DiameterL1MTightening(N.m)
19233 4 5 6 6.353M31.0
25.431.84 5 6 6.35 8 103M41.5
28.638.16 6.35 8 10 12 12.72.5M42.0
32406.35 8 10 12 12.7 153M44.0
38.141.38 10 12 12.7 14 15 193.8M54.5
425010 12 14 15 18 19 20 214M66.8
50.850.812 14 15 18 19 20 21 255M67.5

Technical Specification of Spiral Clamping Coupling

Rated Torque (N.m)

Max. Torque

(N.m)

Max. Speed (min-1)

MOI

(kg.m2)

Static Torque Rigidity (N.m/rad)Radial Deviation (mm)

Angular Deviation

(°)

Axial Deviation

(mm)

0.5195003.4 x 10-71200.102±0.4
1.22.461002.5 x 10-71300.152±0.5
1.63.255002.6 x 10-71700.152±0.5
2448009.7 x 10-62600.152±0.5
4.28.445003 x 10-53300.202±0.5
8.416.840003.5 x 10-54800.202±0.5
102031001 x 10-45600.202±0.5
