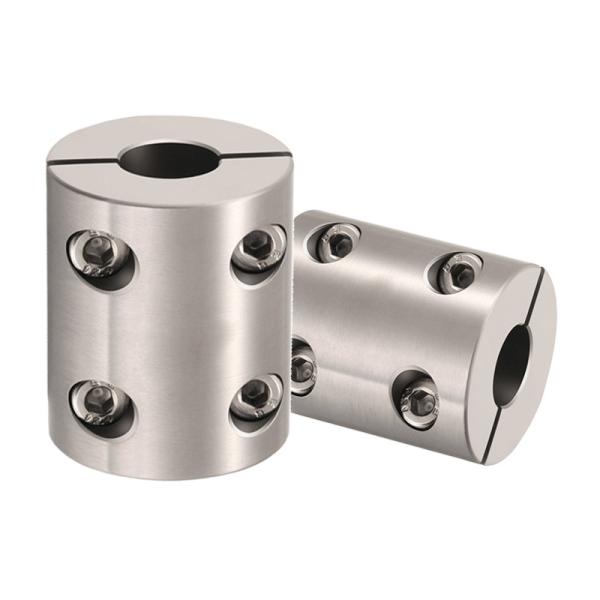

ISO9001 Extension Silver Rigid Clamp Coupling 16mm To 50mm Aluminum Alloy
ISO9001 Extension Silver Rigid Clamp Coupling 16mm To 50mm Aluminum Alloy
ISO9001 Extension Silver Rigid Clamp Coupling 16mm To 50mm Aluminum Alloy
ISO9001 Extension Silver Rigid Clamp Coupling 16mm To 50mm Aluminum Alloy
ISO9001 Extension Silver Rigid Clamp Coupling 16mm To 50mm Aluminum Alloy
ISO9001 Extension Silver Rigid Clamp Coupling 16mm To 50mm Aluminum Alloy
Specifications
Brand Name :
OEM
Model Number :
XTC-RC01
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20000pcs per month
Delivery Time :
25 days
Packaging Details :
Carton Case
Product Name :
Rigid Clamping Coupling
Type :
Separate Screw Locking
Material :
Aluminum Alloy
Color :
Silver
Feature :
Light, Ultra Low Inertia, and High Sensitivity
Application :
Motion Control
MOQ :
Small Orders Accepted
Tolerance :
0.01-0.05mm
Delivery :
DHL Fedex TNT UPS Seashipment
Description

Custom Aluminum Alloy Shaft Coupling Rigid Clamping Coupling

Overview

Rigid clamping coupling is a torsionally rigid coupling. Even when it is under load, there is no backlash. Even when the load is caused by deviation, the rigid coupling still transmits torque rigidly.

Product Name Rigid Clamping Coupling
Type Separate Screw Locking
Material Aluminum Alloy
Color Silver
Feature Light, Ultra Low Inertia, and High Sensitivity
Application Motion Control
Brand Name OEM
MOQ Small Orders Accepted
Tolerance 0.01-0.05mm
Delivery DHL Fedex TNT UPS Seashipment


Dimensions of Rigid Clamping Coupling

D L d1, d2 Shaft Diameter L1 M Tightening (N.m)
16 16 4 5 6 4 M3 1
20 20 6 8 5 M3 1
25 25 8 10 12 6 M4 1.5
32 32 10 12 14 16 8 M4 2.5
40 40 12 12.7 14 16 18 10 M4 3.5
50 50 15 16 18 20 22 12 M5 5

Technical Specification of Rigid Clamping Coupling

Rated Torque (N.m)

Max. Torque

(N.m)

 Max. Speed (min-1)

MOI

(kg.m2)
0.3 0.6 12000 3.2 x 10-7
0.5 1 10000 8.7 x 10-7
1 2 9500 2.7 x 10-6
2 4 7500 9.3 x 10-6
3 6 6100 1.5 x 10-5
4 8 4500 2.8 x 10-5

ISO9001 Extension Silver Rigid Clamp Coupling 16mm To 50mm Aluminum Alloy

FAQs

Q1: Are you manufacturer or trading company?
A1: We are manufacturer with more than 10,000 square meters plant.

Q2: Will you provide free samples?
A2: Yes, we will provide free sample for customer to test.

Q3: Can you make CNC machining parts according to our drawings?
A3: Yes, we can make the parts according to your drawings.

Q4: Can you make CNC machining parts according to samples?
A4: Yes, we can make the parts according to your samples.

Q5: Which shipping method will you use for delivery?
A5: It depends on customer. Our price is based on FOB, customer needs to afford the shipping. But we are happy to help based on request.

Q6: What’s your payment terms?
A6: We accept T/T, Western Union, Money Transfer, TAAJ, etc.
