Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03
Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03
Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03
Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03
Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03
Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03
Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03
Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03
Specifications
Brand Name :
XTC
Model Number :
XTC-LD03
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
Western Union, T/T, MoneyGram
Price :
Negotiable
Supply Ability :
80000pcs per month
Delivery Time :
30 days
Packaging Details :
Wooden Case
Certification :
ISO 9001
Product Name :
Shaft Locking Device
Material :
C45 Steel
Openings :
One
Color :
Deep Grey
Size :
Customization
Universal Model :
Z3
CNC Machining or not :
Custom Machining
Testing Equipment :
CMM, Engineering Microscope, Projector, Hardness Tester, CCD Imager
Drawing Format :
2D/(PDF/CAD)3D(IGES/STEP)
Quality Control :
100% Inspection Berore Shipment
Description

Grey C45 Steel Shaft Locking Device

Basic Dimensions and Parameters of C45 Steel Shaft Locking Device

Size (mm) Dimensions (mm) Rated Load Contact Pressure Locking Screws (G.12.9)

Approx Weight

(KG)
d x D x L L1 L2 Axial (KN) Torque (N.m) Shaft (Mpa) Hub (Mpa) Tightening (N.m)

20 x 47 x 31

22 x 47 x 31

25 x 50 x 31

21

21

21

37

37

37

29

30

34

290

327

440

276

257

287

86

89

106

17

17

17

0.30

0.30

0.30

28 x 55 x 31

30 x 55 x 31

32 x 60 x 31

21

21

21

37

37

37

34

35

45

480

520

810

248

234

272

93

94

110

17

17

17

0.40

0.30

0.52

35 x 60 x 31

38 x 65 x 31

40 x 65 x 31

21

21

21

37

37

37

46

47

47

850

920

960

258

233

219

111

100

100

17

17

17

0.40

0.53

0.40

45 x 75 x 38

50 x 80 x 38

55 x 85 x 38

25

25

25

46

46

46

78

82

90

1820

2110

2640

277

260

281

131

129

144

41

41

41

0.70

0.80

0.80

60 x 90 x 38

65 x 95 x 38

70 x 110 x 50

25

25

33

46

46

60

94

100

130

2740

3440

4850

245

251

232

129

135

122

41

41

83

0.90

0.90

2.10

75 x 115 x 50

80 x 120 x 50

85 x 125 x 50

33

33

33

60

60

60

140

150

170

5570

6080

7520

233

223

232

121

116

130

83

83

83

2.20

2.30

2.40

90 x 130 x 50

95 x 135 x 50

100 x 145 x 58

33

33

40

60

60

68

180

210

220

7740

10300

10780

213

267

188

122

155

112

83

83

83

2.60

2.70

3.70

105 x 150 x 58

110 x 155 x 58

120 x 165 x 58

40

40

40

68

68

68

220

220

250

11670

11900

15400

212

172

188

115

105

118

83

83

83

3.90

4.00

4.30

125 x 170 x 58

130 x 180 x 58

140 x 190 x 58

40

40

40

70

70

70

300

320

320

17500

19700

22700

189

179

177

120

114

115

145

145

145

4.80

5.90

6.30
150 x 200 x 65 45 77 390 29100 200 133 145 6.70

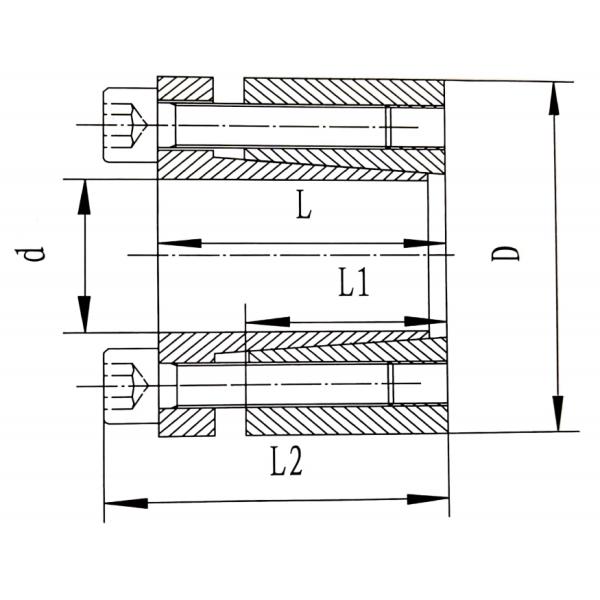

C45 Steel Shaft Locking Device Drawings

Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03

Feature

1. No stress concentration; strong bearing capacity; large torque; good stability; high precision; no damage to the mating surface.

2. Rich in size and structure, suitable for various structural forms;

3. High transmission accuracy, no gap transmission, no noise;

Materials Options

Stainless steel; SU201/S5301/SU303/SU304/SU316/SU416, etc.

Steel: 10# 15# 20# 45# steel, pure iron DT4, 0235, Q345, free cutting steel, etc.

Copper: H62, H59, purple copper, pure copper, chromium zirconium copper, etc.

Aluminum: AL 6061/ AL6063/ AL 6082/ AL7075/ AL 5052/ A 380, etc.

Plastics: ABS/PC/PE/POM.DEL-RIN/Nylon/Teflon/PP/PEI/PEEK

Our Factory

Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03

Main Manufacturing Equipment

Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03

Typical Application

Grey C45 Steel Power Lock Shaft Z3 Deep Grey 25x50x31 XTC-LD03

FAQs

Q1: Are you manufacturer or trading company?

A1: We are manufacturer with more than 10,000 square meters plant.

Q2: Will you provide free samples?

A2: Yes, we will provide free sample for customer to test.

Q3: Can you make CNC machining parts according to our drawings?

A3: Yes, we can make the parts according to your drawings.

Q4: Can you make CNC machining parts according to samples?

A4: Yes, we can make the parts according to your samples.

Q5: Which shipping method will you use for delivery?

A5: It depends on customer. Our price is based on FOB, customer needs to afford the shipping. But we are happy to help based on request.

Q6: What’s your payment terms?

A6: We accept T/T, Western Union, Money Transfer, TAAJ, etc.
