Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial
Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial
Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial
Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial
Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial
Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial
Specifications
Brand Name :
Wellnit
Model Number :
OCE-610
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50 sets month
Delivery Time :
5-7 days
Packaging Details :
wooden case
Voltage :
220V
Rated Power :
1.5-2KW
Speed :
11r/min
Warranty :
1 year
Working range :
457-610mm;18''-24''
Cutting material :
carbon,stainless,alloy
Description

Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial

Production Description:

The series machine is ideal for all types of pipe cutting, beveling and end preparation.

The split frame design allows the machine to split in half at the frame and mount around

the OD of the in-line pipe or fittings for strong, stable clamping.

The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and

flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56

inches O.D.(DN20-1400), on most wall thicknesses and material.

HYDRAULIC DRIVEN

Wellnit standard hydraulic power unit.

Rated pressure: 13Mpa.

Rated flow: 28L/min.

Hydraulic motor rotation: 140-280rpm.

Max output torque: 380N.M

Timing range: 0-20m/min.

Electric power: 380V,50Hz, 3phase, 7.5KW

Oil capacity: 120L

Hydraulic oil: Winter 32#, summer 46#

Optional:

Anti-explosion hydraulic power unit

Duplex pump hydraulic power station

Diesel power unit

1) Enhanced edition for C series, more compact structure, designed to bevel the pipe in the narrow space.

2) Pipe out-mounted, self centering, secured clamping, easy to operate.

3) Aluminum body, light weight, suitable for working aloft.

4) Bevel the pipe in the narrow space and small size pipe.

5) Equipped with Metabo motor, strong power, longer service life, low noise. Available for the rifled tube by

the special design tool bit.

Main Features:

1. Cold Cutting and Beveling improves safety.

2. Cutting and Beveling simultaneous.

3. Split Frame: easy mounted on pipeline.

4. Tools feed automatically.

5. Fast, Precision, On-site Beveling.

6. Minimal Axial and Radial clearance.

7. Light weight and compact design.

8. Easy set-up & Operation.

ELECTRIC DRIVEN: ISE

Wellnit carbon brush motor, high speed rotation, low-energy consumption electric motor 110V or 220V

optional, electric power: 1.43KW 50-60Hz

PNEUMATIC DRIVEN: ISP

Pneumatic motor, no-spark in the process of working, safe and reliable operation. Air compressor is

necessary, can be suitable for inflammable and dangerous working place. Air working pressure:

0.8-1.0Mpa. Air cunsuming flux: 1500-3500L/min.

NC DRIVEN: SKD

Numercial controller: High power servo motor, PLC control system, adjustable speed. Also can be

controlled within 50m with wireless, avoid dangerous process 220V single phase or 380V phase, 50-60Hz,

2.0KW. Timing range: 0-20m/min. suitable for thick wall pipe, SS pipe, flange heavy duty cutting, etc.

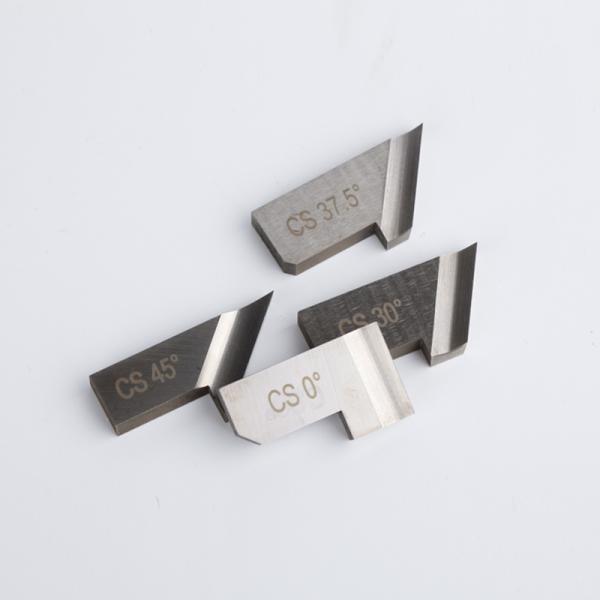

TOOLS

Stanard tools attached with per set of machine(High speed steel, wall thickness ≤25mm):

0 deg*2pcs

30 deg*1pc

37deg*1pc

Other bevel angles or requirement, please declare before order.

Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial

Technical Specifications:

Model working range(ID-OD) wall thickness rotation speed
OCE-610

Φ457-610(18”-24”)

 ≤30mm

11r/min
