Portable Pipe Cutter Gas Welding Accessories Automatic Motor Drive AC220V 50Hz
Portable Pipe Cutter Gas Welding Accessories Automatic Motor Drive AC220V 50Hz
Portable Pipe Cutter Gas Welding Accessories Automatic Motor Drive AC220V 50Hz
Portable Pipe Cutter Gas Welding Accessories Automatic Motor Drive AC220V 50Hz
Specifications
Brand Name :
wellnit
Model Number :
CG2-11D
Certification :
ISO,CE
Place of Origin :
china
MOQ :
Negotiable
Packaging Details :
. Each machine will be packed in carton or wooden case
Condition: :
New
Voltage: :
AC220V/50Hz
Weight: :
14.5kg
Application: :
Automatic pipe cutter
Cutting thickness: :
6~50mm
Producte name: :
Automatic Motor Drive
Dimension(L*W*H) :
165*460*580mm
Cutting mode: :
Oxy-fuel(flame)
Price :
Negotiable
Description

Portable Pipe Cutter Gas Welding Accessories Automatic Motor Drive AC220V 50Hz

CG2-11D Portable Automatic Motor Drive Pipe Cutter Gas Cutting Machine

Product Description

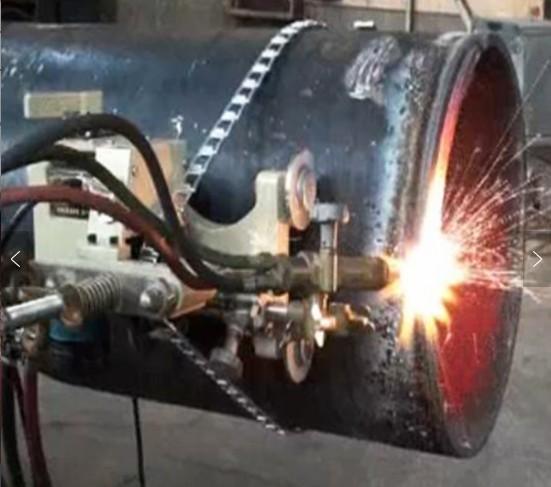

CG2-11D Automatic Pipe Gas Cutting Machine

* The body is lightweight and portable.
* The machine is driven by motor.
* The machine has a cutting high precision, smooth running characteristics.
* According to the size of the diameter, free to increase or decrease the chain.

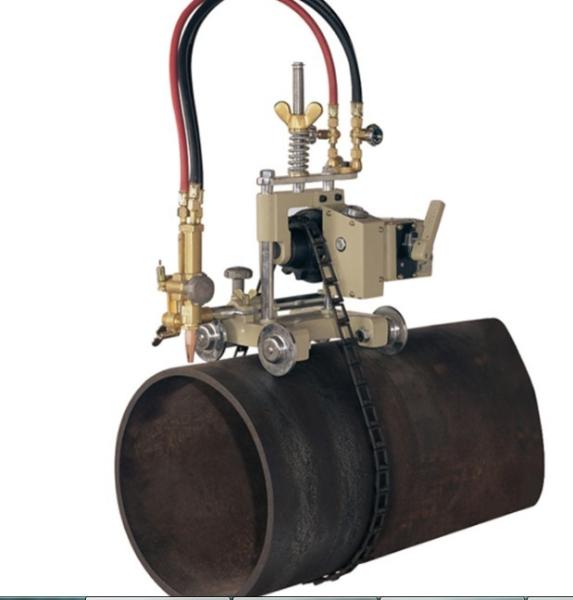

1. Hose:Connect them to gas distributor.
2. Sliding support
3. Cross feeding hand wheel :To adjust horizontal position of torch.
4. Lift hand knob of torch:To adjust the height of torch.
5. Torch:The cutting thickness is about 5-50mm
6. Roller wheel :To make the machine walks smoothly on the pipe wall.
7. Wing nut:Revolve it to tighten the chain to fix machine on pipe.
8. Gas distributor:Gases are preheating oxygen, fuel gas and cutting oxygen.
9. Body 10. Chain

Technical Parameters

CG2-11D Automatic Pipe Gas Cutting Machine Specifications:

Weight(body)

14.5KG

Accessory

1.5KG

Power

24V 4AH

Machine dimension

165mm×460mm×580mm

Groove shape

I shape or V shape (Most angle is 45 degrees)

Reset accuracy

1mm

Diameter of cutting pipe.

121mm-273mm

Cutting thickness

5mm-50mm(Standard torch)

CG2-11D Automatic Pipe Gas Cutting Machine Contents of package:

Standard pack

1) Main body(The hand knobs on two sides are used to assemble backward.

1set

2) Standard torch unit assemblage

1set

3) Tip (G02 or G03 )

3pcs each

4) Gas-in connector

1set

5) Connector of torch

1set

6) Specification sheets and certificate of qualification

1pc each
