Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz
Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz
Specifications
Brand Name :
Wellnit
Model Number :
PB-80
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 sets a month
Delivery Time :
Within 7days after we received 100% payment
Packaging Details :
Plywood
Milling Width :
0-70mm
Single Milling Width :
15-20mm
Slope Angle :
0°-60°（Adjustable）
Clamp Thickness :
6-60mm
Clamp Width :
〉100mm
Process Length :
〉300mm
Description

Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz

Product Introduction

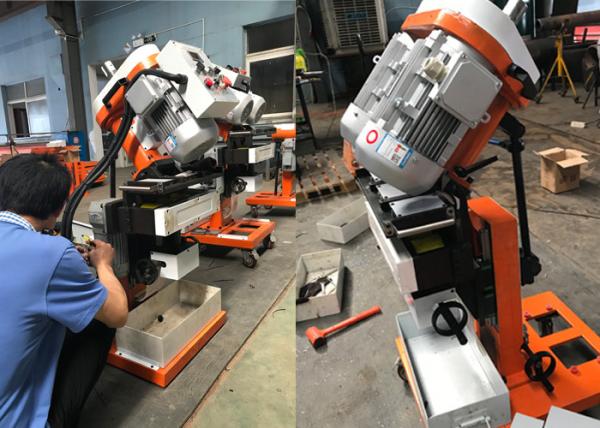

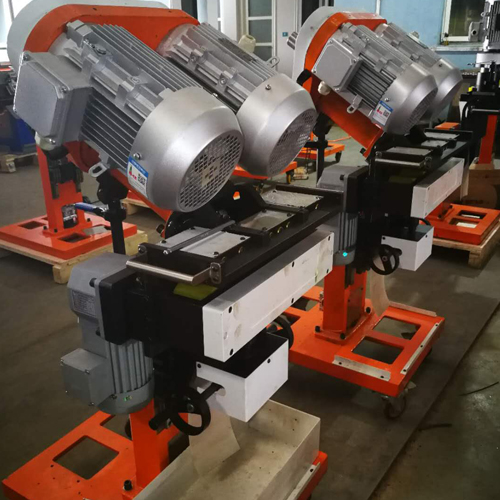

PB-80 automatic marching milling machine is a dual-motor, power upgrade, automatic steel plate milling

machine, stainless steel plate, carbon steel plate, aluminum alloy plate and other different materials can

be used, for large plates, to build a workbench, the machine on both sides of the plate can be carried out

simultaneously. The machine is easy to operate and can be processed at the same time without manual

assistance after adjustment. It has high efficiency and saves time and labor costs.

Technical Parameter

Model

PB-80

Slope Angle

0°-60°(Adjustable)

Power

AC 380V 50Hz

Clamp Thickness

6-60mm

Total

4800W

Clamp Width

〉100mm

Spindle Speed

750-1050r/min (adjustadle)

Process Length

〉300mm

Feed speed

0~1500mm/min (adjustadle)

Worktable Height

820-860mm

Milling Width

0-70mm

Net Weight

220kg

Single Milling

Width

15-20mm

Processing Materials

Carbon Steel

Stainless Steel

Aluminium Alloy , Etc

Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz

Main performance of the product

1. The PB-80 edge milling machine convenient movement and simple operation.

2. The finish of the groove is as high as Ra3.2-6.3.

3. The milling machine is equipped with commonly used CNC blades to make the

customers use the cost more cheaply.

Details of Product

Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50HzAutomatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz

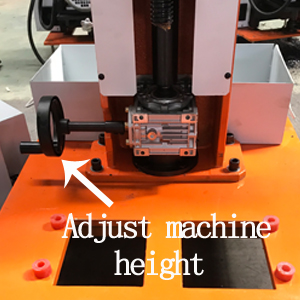

The plastic handle in the picture is used to adjust the height of the machine, adjust the handle, and

contact the rubber wheel with the upper part of the steel plate.

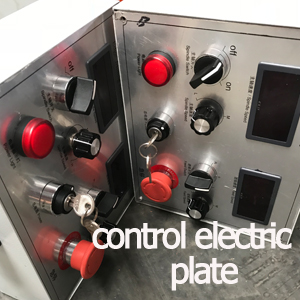

On the control panel, there are spindle switch, feed switch, spindle speed, feed speed, power indicator

and emergency stop.

Operation procedure:

One Step: turn on the power.

Second Step: turn the spindle switch to ON, and the feed switch rotates to L.

Third step: start the spindle speed to 1300, and feed speed to 300.

After the plate is completely pressed, the feed rate and feed speed can be adjusted according to the

sound of the motor.
