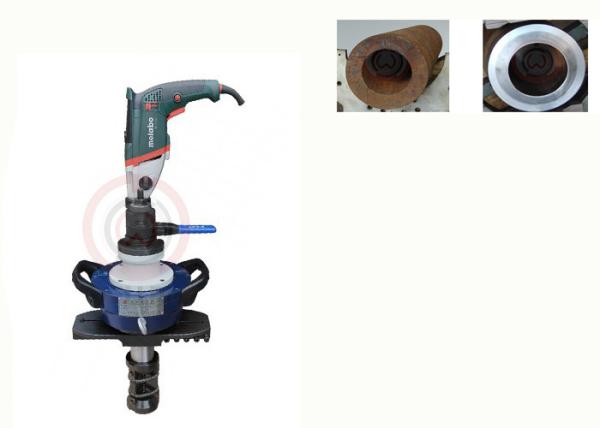

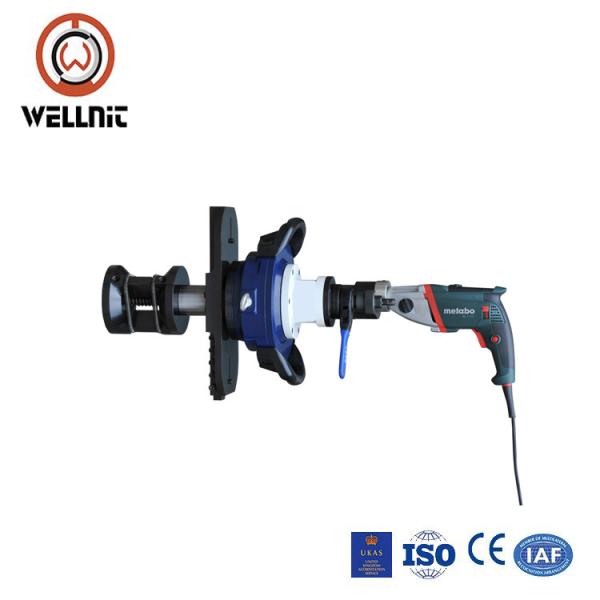

The machine is suitable for cutting and beveling procession of pressure vessel and steam generator in different type and size, even for treatment of carbon steel, stainless steel and alloys. Cold cutting procession does not affect the quality of the pipe materials.This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

Technical characteristics

• Lighter weight,minimal radial space,Easy to operate.

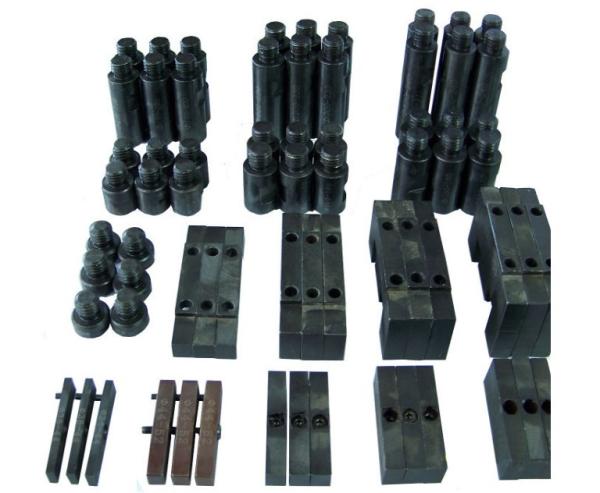

• A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
• Driveing Type:Electric-ISE,Pneumatic-ISP.
• Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
• Angle:Beveling angle as per your required.
• High EfficiencyTube Chamfering Machine
• On-site cold Beveling improves safety
• Easy set-up & Operation
• Self-Centering
• Can be positioned in any direction
• Feed ratchet spanner makes tool feed / back easily
• Light weight and compact design

Spcification:
