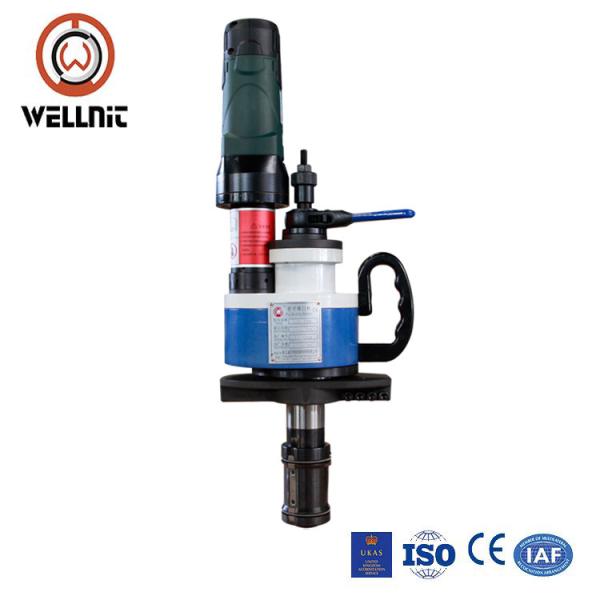

Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min
Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min
Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min
Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min
Specifications
Brand Name :
Wellnit
Model Number :
ISE-159
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 sets for a mounth
Delivery Time :
within 7 days after received 100% payment
Packaging Details :
plywooden
Power Supply :
220-240V 50-60Hz
Driven :
Electric
Thickness :
Less than 15 (Standard)
Speed Rotation :
35r/min
Working WAY :
No Spark,Cold Working
Fix way :
Inside Mounted
Motor Power :
1600W
Working Range :
65-159mm(ID-OD)
Price :
Negotiable
Description

Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min

This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.

advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.

ISE-159 Beveling Machine
Voltage 220-240V
Frequency 50/60Hz
Power 1600W
Wall Thickness ≦15
Working Range 65-159mm
Rotation Speed 35r/min
Net Weight 32kg

Non-standard machines are available according to customers’requirement.

Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min

Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/minMetal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/minMetal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/minMetal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min
