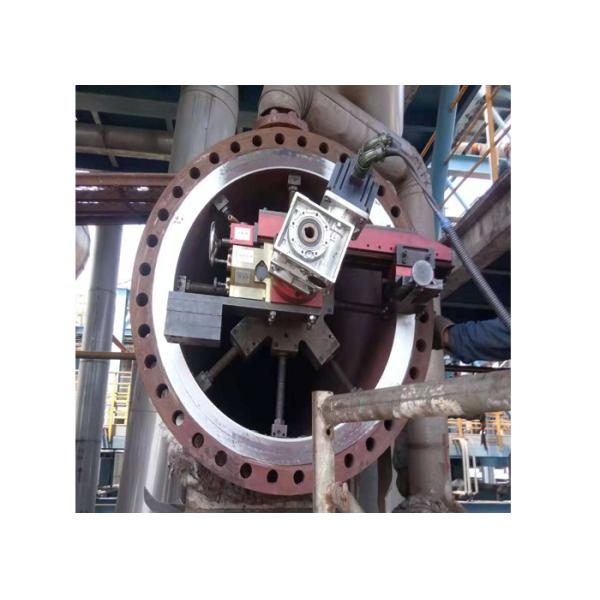

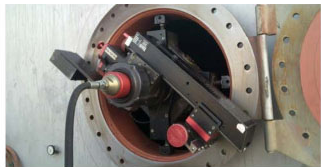

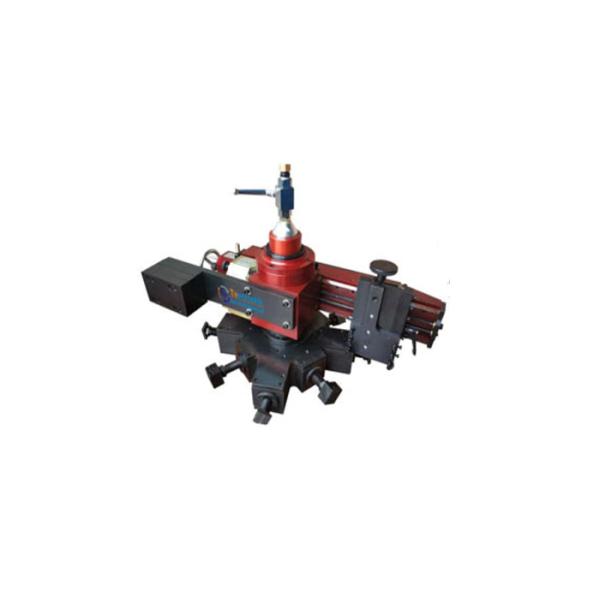

Installation Portable Flange Facing Machine With Pneumatic Motor

Product Description

Portable ID flange facer seal groove flange facing machine parameter

Technicial Parameter

Working diameter: 150-1000mm

Power: pneumatic motor

Benefits:

• Exceedingly versatile

• Highly portable

• Latest linear technology

• High efficiency

• Low noise level 2.0hp drive

• Storage/shipping box

• CE certificate

WFP1000 flange facer operation dimension:

Quick and Easy Setup & Removal

• Separate mounting chuck.

• All centering and leveling is done on the chuck.

Lightweight

• Primary of machine weighs only 265 lbs (121 kg).

• Smallest mounting chuck weighs about 17 lbs (4.2 kg).

Safe and Quiet Operation

• Stationary feed rate selector.

• Machine is controlled without touching any moving parts.

• Exhaust air is routed through body of machine for increased muffling.

Simplified Operation

• Single selector switch for bidirectional radial feed or vertical downfeed.

• One wrench size for clamping jaws and body draw bolt.

Cuts Chamfers and Grooves

• Compound tool head and downfeed for cutting angles and grooves.

Advantages

The rigid and versatile WFP1000 delivers high-torque performance to quickly re-face flanges and repair sealing and bearing surfaces efficiently and cost-effectively

• Powered 360° tool post - for a wider range of machining operations

• Three speed continuous feed gearbox, for gramophone finish

• Quick set adjustable clamping jaws, minimize set up time

Face surface result

Company Information

Zhejiang Wellnit Mechanical Technology Co.,Ltd located in the No.601,Anxing Road,Shacheng Street Economic and Technological Development Zone,Wenzhou,Zhejiang. We are specialized in research, manufacture, sales and after sales the pipe beveling, pipe cutting/beveling and plate beveling equipment. The 9 series products are well accepted in domestic, and Middle East. Rely on the quality and capacity, we approval the ISO9001 quality system, also we have the perfect after sales system, got good reputation from our clients. Our products apply for oil & gas, pressure vessel, ship building, nuclear power and fossil fuel/power, also are more and more applied for rush to repair project, we make contributions to enhance their efficiency,

We have experienced teamconcentrate on technology and research, this is the base forour growth and be stronger. We keep moving forwards in this field, still keep at customer orientation, supply good service. To be honest, exploitation and enterprising, seek truth and innovation are our credo. Your satisfaction is our great success.

Our Services

wellnit plate and pipe beveling cutting machine factory for many years,we are experience in producing beveling machines, based on good quality

but our price is much competitive.welcome visit our factory if have chance.

Our product range:

• OD-Mounted Cutting and Beveling Machine

• Internal Expansion Type Pipe Beveling Machine

• Portbale Plate Beveling Machine

• Automatic Plate Milling Machine

• Hydraulic wrench ,hydraulic pump and other tools

• Flame/plasma/CNC cuting welding machines

• Flange facing Machine(Internal and External)

Packaging & Shipping

Portable ID flange facer seal groove flange facing machine adopts export wooden package
