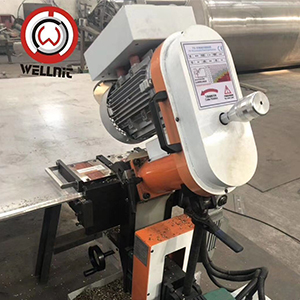

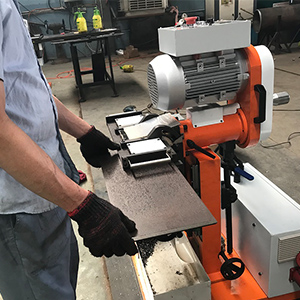

40mm Clamp 3400W Cold Beveling Plate Chamfering Machine
40mm Clamp 3400W Cold Beveling Plate Chamfering Machine
40mm Clamp 3400W Cold Beveling Plate Chamfering Machine
40mm Clamp 3400W Cold Beveling Plate Chamfering Machine
40mm Clamp 3400W Cold Beveling Plate Chamfering Machine
40mm Clamp 3400W Cold Beveling Plate Chamfering Machine
Specifications
Brand Name :
Wellnit
Model Number :
PB-60
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
10set / month
Delivery Time :
within 5 days
Packaging Details :
Plywood Box
Power Supply :
AC 380V 50Hz
Motor Power :
3400W
Bevel Angle :
10 to 60 Degree
Bevel Width :
1-45mm
Clamp Thickness :
6-40mm
Description

Automatic Feed Stainless steel plate chamfering Remove burrs machine

Performance of products

This series of machine special design for metal plate, automatic feed ,automatic matching , several side of plate can processing together, more efficiency! Save labor, lower cost.Machine can process small plate and big plate. can process thin plate and thick plate. bevel angle can be adjustable, bevel depth can be adjustble, high accurate.can process carbon steel , stainless steel , aluminum alloy , compound plate etc.

Function of products

  • Cold beveling , can not affect plate material
  • Automatic marching and feed, save labor and cost
  • Easy to operation , one worker can operation seversal machine together,high efficiency
  • Bevel angle and depth both can be adjustable , high accurate
  • small or big plate , thin or thick plate , both can processing
  • plate material: carbon steel , stainless steel , aluminum alloy , compound plate etc.
  • Bevel Type : V , U , X , compound bevel etc

Bevel Type

40mm Clamp 3400W Cold Beveling Plate Chamfering Machine

Machine Specification

Model PB-60
Power Supply AC 380V 50Hz
Motor Power 3400W
Spindle Speed 1050r/min
Feed Speed 0-1500r/min (Adjustable)
Bevel Width 1-45mm
Single Bevel Width 1-15mm
Bevel Angle 10 - 60 Degree
Clamp Thickness 6-40mm
Clamp Width greater than 100mm
Clamp Length greater than 300mm
Worktable Height 820-860mm
Net Weight 250Kg
Processing Materials Carbon Steel , Stainless Steel , Aluminum Alloy etc

40mm Clamp 3400W Cold Beveling Plate Chamfering Machine

40mm Clamp 3400W Cold Beveling Plate Chamfering Machine

Order Guide

  • Plate length
  • Plate width
  • Plate thickness
  • Plate material
  • Plate condition : Straight Blade or Curved Plate ?
  • Bevel Angle
  • Bevel depth
  • Processing Drawing
